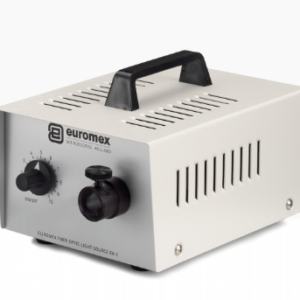

Description Dual LED illuminator – LE.5211 Euromex cold light illuminator, 150 W halogen, 110 V and 230 V models available For stereo microscopy choosing the right illumination is essential to obtain a perfect image with maximum resolution. Halogen is the traditional light source of choice due to its high light intensity. The LED version almost equals this intensity but has a longer lifespan, less energy consumption and generates less heat The major advantage of LED illumination is the constant light spectrum at all light intensity levels. The Euromex light sources are suitable for all kind of applications in industry, Life Sciences and Materials Sciences Highlights of Dual LED Illuminator Professional cold light source For Materials Science and stereo microscopy Halogen 150 W or 30 W PowerLED versions Built-in forced air cooling Various accessories Without fibre optic Features of Dual LED Illuminator Multifunctional cold light sources without fiber light conductor Equipped with a 150 W halogen lamp, color temperature 3000 K The high luminous flux and special features are ideal for the advanced requirements in Life and Materials Sciences and various industrial applications. And for stereo microscopy A large range of fiber optics, adapters and accessories are available Dimensions: 230 mm large x 150 mm depth x 150 mm height 110 and 230 V mains versions available Specification: MODELS Power Luminous flux Color temperature Operation voltage Dimensions (hwd) Weight (kg) LE.5211 150 W halogen 21,000 lux max. * 3,000 K 100-240 V AC / 12 V DC (50/60 Hz) 150x150x230 mm 3.9 – Multifunctional cold light sources without fibre light conductor – The high luminous flux and special features are ideal for the advanced requirements in Life and Materials Sciences, various industrial applications and for stereomicroscopy – A large range of fibre optics, adapters and accessoiries are available MODEL Product numbers LE.5211 Power 150 W halogen Color temperature 3,000 K Operating voltage 100/110 or 230/240 or 250V AC / 12 V DC (50/60 Hz) versions Dimensions (h) 150 x (w) 150 x (d) 230 mm Weight 3.9 kg The LE.5211 is equipped with a 150 W halogen lamp, color temperature 3100 K

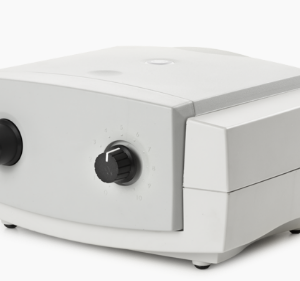

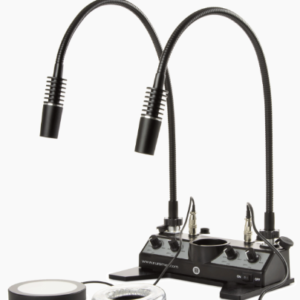

Description Dual LED illuminator – LE.5212 Euromex light source station with two dual white LED and goosenecks The Euromex illumination station comes with independently controlled goosenecks ring light and transmitted stage illuminator making it a complete illumination solution. The base can be used as a standalone tabletop unit or can be slided over a pole stand The interchangeable 3W powerLED goosenecks allow flexible angle illumination while the 24,000 Lux ring light allows homogenous illumination from above. The transmitted light stage illuminator (8,000 Lux) is designed for translucent objects The Euromex illumination station is suitable for all kinds of applications in industry, Life Sciences and Materials Sciences Highlights of Dual LED Illuminator Professional base station with various LED cold light sources For Materials Science and stereo microscopy Four independent and autonomous illuminators Complete illumination solution in one station Available with white light spectrum and three monochromatic wavelengths Features of Dual LED Illuminator Light source station with multiple power supply connections to be placed on a tabletop as standalone illumination unit or mounted on the pole of a stereo microscope with diameters up to 44 mm or with 35 and 25 mm pole mounting adapter rings Station to equipped with:- two self-sustaining gooseneck-type guides with 2x 3 Watt white 6500 K power LED. Each self- sustaining Gooseneck-type LED guide is equipped with a 3-lens focusing head and has a length of 56 cm – homogeneous conical beam of light illumination with a white 6.500 K LED ring light generating with 60 LEDs up to 24.000 Lux. Mounting diameters from 21 to 61 mm – Transmitted light stage illumination with a 6.500 K white LED generating up to 8.000 Lux with 42 LEDs. Stage diameter 94.5 and 15 mm thick Operating voltage 100-240 V AC / 5 Vdc/4A (50/60 Hz) Dimensions 200 mm (w) x 65 mm (d) x 40 mm (h) Weight 1.9 kg Specification: MODELS 3 W Gooseneck guide LED 4 W white LED ring light 2 W white LED transmitted light stage LE.5212 White LED, 6.500 K •  • Technical Specification •• Oblique illumination with two self-sustaining Gooseneck-type LED light guides equipped with either a 3 Watt white 6500 K LED or a 365 nm UV-LED or a 395 nm or 420 nm Violet-LED • Each self-sustaining Gooseneck-type LED guide is equipped with a 3-lens focusing head and has a length of 56 cm • Homogeneous conical beam of light illumination with a white 6.500 K LED ring light generating with 60 LEDs up to 24.000 Lux. Mounting diameters from 21 to 61 mm • Transmitted light stage illumination with a 6.500 K white LED generating up to 8.000 Lux with 42 LEDs. Stage diameter 94.5 and 15mm thick Interchangeable gooseneck-type guides A = LE.5260, B = LE.5261, C = LE.5262 and  D = LE.5263

Description Dual LED illuminator – LE.5212-420 Euromex light source station with two dual 420 nm violet LED and goosenecks The Euromex illumination station comes with independently controlled goosenecks ring light and transmitted stage illuminator making it a complete illumination solution. The base can be used as a standalone tabletop unit or can be slided over a pole stand The interchangeable 3W powerLED goosenecks allow flexible angle illumination while the 24,000 Lux ring light allows homogenous illumination from above. The transmitted light stage illuminator (8,000 Lux) is designed for translucent objects The Euromex illumination station is suitable for all kinds of applications in industry, Life Sciences and Materials Sciences Highlights of Dual LED Illuminator Professional base station with various LED cold light sources For Materials Science and stereo microscopy Four independent and autonomous illuminators Complete illumination solution in one station Available with white light spectrum and three monochromatic wavelengths Features of Dual LED Illuminator Light source station with multiple power supply connections to be placed on a tabletop as standalone illumination unit or mounted on the pole of a stereo microscope with diameters up to 44 mm or with 35 and 25 mm pole mounting adapter rings Station to equipped with: – two self-sustaining gooseneck-type guides with 2x 3 Watt white 6500 K power LED. Each self- sustaining Gooseneck-type LED guide is equipped with a 3-lens focusing head and has a length of 56 cm – homogeneous conical beam of light illumination with a white 6.500 K LED ring light generating with 60 LEDs up to 24.000 Lux. Mounting diameters from 21 to 61 mm – Transmitted light stage illumination with a 6.500 K white LED generating up to 8.000 Lux with 42 LEDs. Stage diameter 94.5 and 15 mm thick Operating voltage 100-240 V AC / 5 Vdc/4A (50/60 Hz) Dimensions 200 mm (w) x 65 mm (d) x 40 mm (h) Weight 1.9 kg Specification: MODELS 3 W Gooseneck guide LED 4 W white LED ring light 2 W white LED transmitted light stage LE.5212‑420 420 nm, monochrome •  • Technical Specification •• Oblique illumination with two self-sustaining Gooseneck-type LED light guides equipped with either a 3 Watt white 6500 K LED or a 365 nm UV-LED or a 395 nm or 420 nm Violet-LED • Each self-sustaining Gooseneck-type LED guide is equipped with a 3-lens focusing head and has a length of 56 cm • Homogeneous conical beam of light illumination with a white 6.500 K LED ring light generating with 60 LEDs up to 24.000 Lux. Mounting diameters from 21 to 61 mm • Transmitted light stage illumination with a 6.500 K white LED generating up to 8.000 Lux with 42 LEDs. Stage diameter 94.5 and 15mm thick Interchangeable gooseneck-type guides A = LE.5260, B = LE.5261, C = LE.5262 and  D = LE.5263

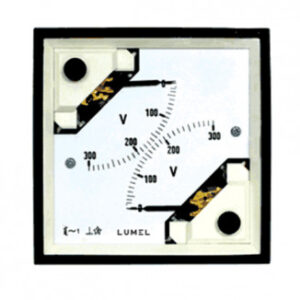

Description Dual Moving Iron AC meter – EA19D   Dual Moving Iron AC meter – EA19D DESCRIPTION EA19D meter is destined for the measurement of AC currents for frequency range of 15…400Hz and voltages in the frequency range of 15…100Hz. Meter has two different movements and two different scales. Any combination Ammeter / Ammeter, Voltmeter / Voltmeter and Voltmeter / Ammeter is possible. Dual Moving Iron AC meter APPLICATION The panel electromagnetic meter with a double measuring system is designed to measure AC current with a frequency of 15 … 400 Hz and a voltage of 15 … 100 Hz. The meter will be used, among others, in switchgears, control cabinets of generators and wherever there is a limited space for measuring two electrical quantities. EA19D meters are designed for mounting into panels with thickness not exceeding 25 mm in the holes 92 x 92 mm.   TECHNICAL DATA Accuracy class                                                   1 Measuring ranges, self-consumption, front frame dimensions, length of scale, weight                                      acc. to tab. 1, 2 Rated operating conditions: – ambient temperature                                     5…23…55oC – relative air humidity                                       25…85% – frequency of measured quantity                  for In: 15…400Hz                                                                                for Un: 15…100Hz Execution of ammeters                                     normal scale version or version with                                                                                100% overload. Other overcurrent s                                                                              cale, on request after agreement. Additional errors according to                        EN 60051-2 Execution of ammeters with the nominal range scale according to table 1; or an extended scale with a value of 2- or 6-times overload or another agreed with the manufacturer.   The power consumed by the meter – voltage circuit:                             < 4.5 VA – current circuit for In<15A:        15A:        < 0.8 VA Masa EA19D                    200 g Electrical overload: – long-term                                                           120% In, 120% Un – short-time current measurement                 10 times for 5s – short-term voltage measurement                 2 times for 5s (max. 1000V) Impact resistance – peak acceleration                                               15 g – duration of impact                                             11 ms Shock resistance – range of vibration frequency                           10-55-10Hz – vibration amplitude                                           0.15 mm (corresponds to 1.5 g at 50 Hz) Protection Grade acc. to EN 60529 ensureb by: – case:           standard                      IP 52                        custom-made             IP 65 – terminals                                         IP 20 Case material                                    thermoplastic material,                                                              self-extinguishing plastic (UL 94V-O) Meter glass material                        glass, plastic or anti-reflective glass                                                              (acc. to ordering code) ACCESSORIES Screw holders                                    – 2 pcs. Additional setting pointer On  customers  request  EA19D meters  can  be  equipped with an additional, setting red pointer fixed on the glass.
