Cast Iron Butterfly Valves Allschoolabs -

Description

Wafer lug or grooved end connections

Press-to-connect ends selection

Broad range of sizes

Lug or wafer types

Ductile iron, cast iron, CPVC materials

Lead-free selection

Fire protection selection

High performance selection

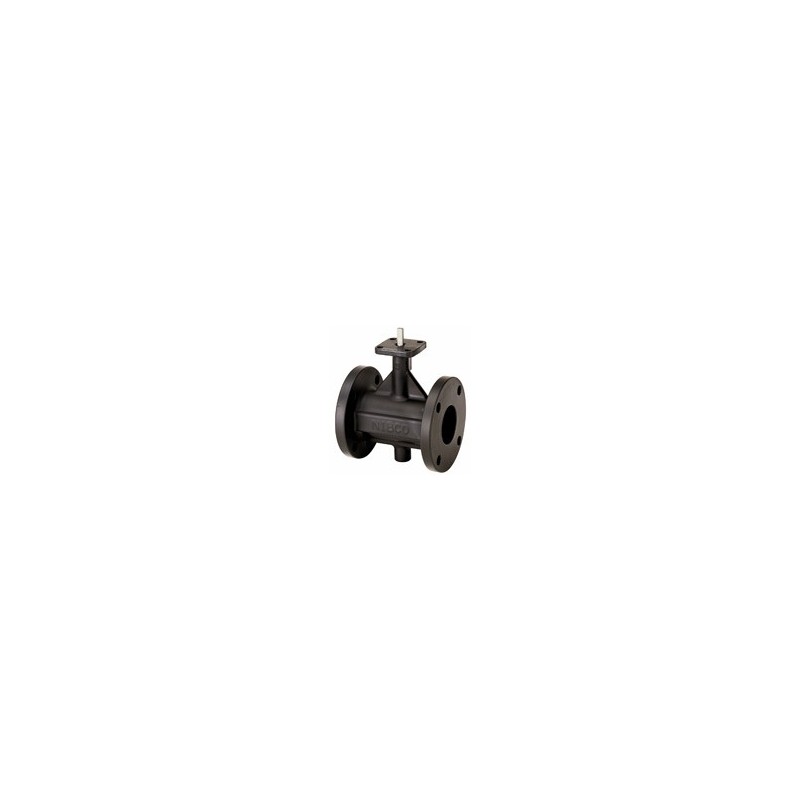

Butterfly Valve – Cast Iron, 200 PSI, Flanged
FC-2765

Valve pressure rating 200 psi, Max temperature rating 200°F, Flanged style, EPDM encapsulated ductile iron disc, Stainless steel stem with metal bushings, Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator, Not recommended for steam service

Designed to meet MSS SP-67, MSS SP-25 (markings)

Size range 2″ to 12″

Butterfly Valve – Cast Iron, 200 PSI, EPDM Seat
LC-2000

Valve pressure rating 200 psi, 225°F continuous and 250°F intermittent service, Lug style, EPDM molded-in seat liner, Aluminum bronze disc, Stainless steel stem with copper bushings, Geometric drive, Extended neck, Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation, Lead-free*, Not recommended for steam service

Designed to meet MSS SP-67, MSS SP-25 (markings), Designed to meet API 609, U.S. Coast Guard Category A, California Health and Safety Code Section 116875, Vermont Act 193

Size range 2″ to 12″

Butterfly Valve – Cast Iron, 200 PSI, Flanged
FC-2775

Valve pressure rating 200 psi, Max temperature rating 180°F, Flanged style, Buna-N encapsulated ductile iron disc, Stainless steel stem with metal bushings, Splined drive, Extended neck, Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator, Not recommended for steam service

Designed to meet MSS SP-67, MSS SP-25 (markings)

Size range 2″ to 12″

Butterfly Valve – Cast Iron, Wafer Type, 200 PSI
WC-2000

Valve pressure rating 200 psi, 225°F continuous and 250°F intermittent service, Wafer style, EPDM molded-in seat liner, Aluminum bronze disc, Stainless steel stem with copper bushings, Geometric drive, Extended neck, Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator, Lead-free*, Not recommended for steam service

Designed to meet MSS SP-67, MSS SP-25 (markings), Designed to meet API 609, U.S. Coast Guard Category A, California Health and Safety Code Section 116875, Vermont Act 193

Size range 2″ to 12″

butterfly Valve – Cast Iron, International, Wafer Type
N200135

Valve pressure rating 200 psi, 225°F continuous and 250°F intermittent service, Wafer style, EPDM cartridge seat liner, Aluminum bronze disc, Stainless steel stem with bronze bushings, Extended neck, Operating mechanism: Bare stem, lever-lock operating system, manual gear operator, Not recommended for steam service
