It’s what’s INSIDE that counts.
Offers Up To 10X Cutting Speed and Lasts 200X Longer Vs. Mounted Points
- Standard cut burrs quickly remove stock for maximum grinding efficiency
- Diamond cut burrs offer reduced vibration for smoother handling and reduced operator fatigue
- Non-ferrous burrs cut broadly and prevent clogging when working with soft non-ferrous metals
- Max. 33,000 RPM no load speed
- Ideal for use with stainless steel, ferrous and non-ferrous metals

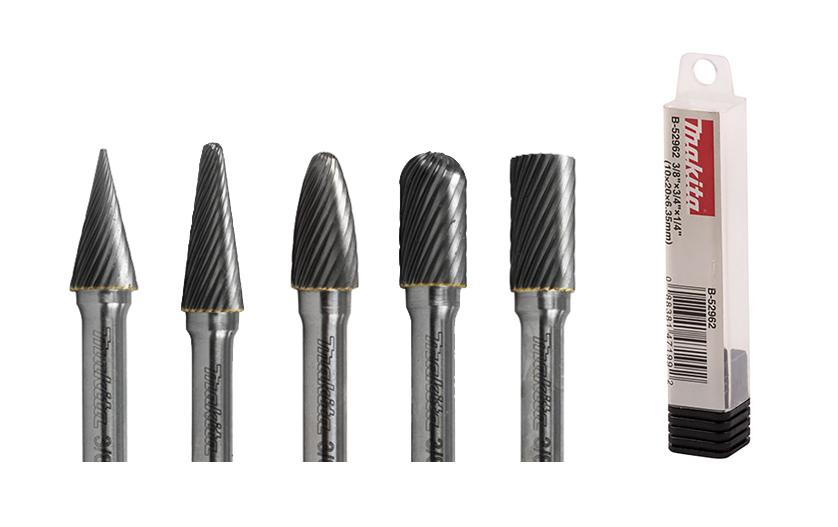

- Available in SA, SC, SF, SL and SM head profiles
- 1/4″ shank
Applications: Steel, Cast Iron, Stainless, Ni-co etc.
| Head Shape | Suitable Application | Size | Cut Type | Material Application | Part Number | Price |
|
SA
(Cylindrical Square) |
Steel, Stainless Steel , Ferrous Metals
|
3/8″ x 3/4″ x 1/4″ | Standard Cut |
Metal & Inox
|
B-52962 | 625.00 |
| 3/8″ x 3/4″ x 1/4″ | Diamond Cut | B-52978 | 625.00 | |||
| Aluminum, Non-Ferrous Metals | 3/8″ x 3/4″ x 1/4″ | Non-Ferrous Cut | Non-Ferrous | B-52984 | 625.00 | |
|
SC
(Cylindrical Radius) |
Steel, Stainless Steel , Ferrous Metals
|
3/8″ x 3/4″ x 1/4″ | Standard Cut |
Metal & Inox
|
B-52990 | 625.00 |
| 3/8″ x 3/4″ x 1/4″ | Diamond Cut | B-53001 | 625.00 | |||
| Aluminum, Non-Ferrous Metals | 3/8″ x 3/4″ x 1/4″ | Non-Ferrous Cut | Non-Ferrous | B-53017 | 625.00 | |
|
SF
(Tree Radius) |
Steel, Stainless Steel , Ferrous Metals
|
3/8″ x 3/4″ x 1/4″ | Standard Cut |
Metal & Inox
|
B-53023 | 625.00 |
| 3/8″ x 3/4″ x 1/4″ | Diamond Cut | B-53039 | 625.00 | |||
| Aluminum, Non-Ferrous Metals | 3/8″ x 3/4″ x 1/4″ | Non-Ferrous Cut | Non-Ferrous | B-53045 | 625.00 | |
|
SL
(Tree Pointed) |
Steel, Stainless Steel , Ferrous Metals
|
3/8″ x 1″ x 1/4″ | Standard Cut |
Metal & Inox
|
B-53051 | 625.00 |
| 3/8″ x 1″ x 1/4″ | Diamond Cut | B-53067 | 625.00 | |||
| Aluminum, Non-Ferrous Metals | 3/8″ x 1″ x 1/4″ | Non-Ferrous Cut | Non-Ferrous | B-53073 | 625.00 | |
|
SM
(Flame) |
Steel, Stainless Steel , Ferrous Metals
|
3/8″ x 3/4″ x 1/4″ | Standard Cut |
Metal & Inox
|
B-53089 | 625.00 |
| 3/8″ x 3/4″ x 1/4″ | Diamond Cut | B-53095 | 625.00 | |||
| Aluminum, Non-Ferrous Metals | 3/8″ x 3/4″ x 1/4″ | Non-Ferrous Cut | Non-Ferrous | B-53104 | 625.00 |
Safety Tips:
- Keep less than 10mm of the shank exposed
- Grinding direction is from RIGHT to Left, reciprocated move is forbidden
- Keep the grinding pressure less than 4kg to keep safe
- Keep cooling when grinding on inox or alloy to avoid overheating and tipping
- Always wear safety goggles to prevent the grinding tip hurt your eyes.
- The working part of the carbide burrs should be less than 30
