Description

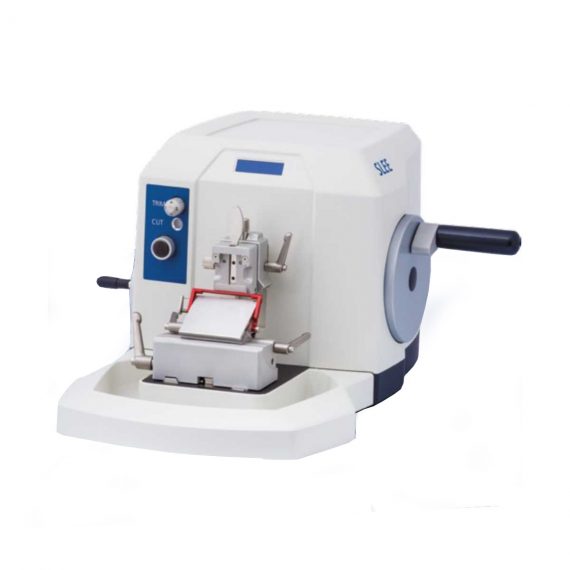

Standard unit for Paraffin sections and research-, plastic- and industrial applications.
Features:

High precision specimen feed
Smoothly running handwheel
Handwheel lock in each position
Trimming function in 4 steps
Specimen retraction upon backstroke
Acoustic signal for end position of specimen movement
Vibration free microtome base plate
Ergonomically located coarse feed wheel
Spacious, integrated section waste tray
Wide range of accessories

Optional accessories:

Aquatec system
MTR Bench top quick-freezing unit
Magnifier with illumination
TC65 Disposable blade holder (for tungsten carbide blades)
Tungsten carbide blades (1 pcs.)
Glass knife holder (for triangle glass knives)
Specimen arc (for glass knife holder application)
Super Mega Cassette Clamp, orientable
Super Mega Cassette Clamp, fixed
Standard specimen clamp, fixed
Foil clamp
Prism (Set)
Round specimen holders (different diameters on demand)
More on request

Standard components:

Basic instrument
Specimen orientation
Universal cassette clamp, orientable
(alternatively: Standard specimen clamp, orientable)
Disposable blade holder
(alternatively: Standard knife holder)
Section waste tray
Disposable blades, low profile (1 box, 50 pcs.)
Operation Manual
Dust cover

Technical Specifications:

Section thickness setting range
0.5 µm to 60 µm

Section thickness selection
0.5 to 2 µm in 0.5 µm-steps
2 to 10 µm in 1.0 µm-steps
10 to 60 µm in 2.0 µm-steps

Trimming thickness setting range
10 µm, 20 µm, 30 µm, 40 µm

Horizontal specimen feed
28 mm

Vertical stroke
60 mm

Coarse feed
manual

Specimen retraction
automatic

Specimen orientation, horizontal
8°

Specimen orientation, vertical
8°

Specimen orientation, z-axis
360°

Dimensions [W x D x H]
480 x 610 x 350 mm
incl. handwheel and waste tray

Weight [w/o accessories]
33 kg
