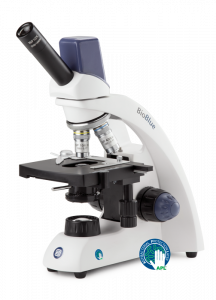

Description Euromex BB.4205 BioBlue Monocular 5 MP Digital Microscope with SMP 4/10/S40x Objectives DESCRIPTIONS The Euromex digital microscopes have equal functions compared to stand-alone microscopes. But since these microscopes have an integrated camera, these are offering a compact solution for viewing microscopy images without having to add an external camera to the microscope The included software allows the user to view live images on the computer screen or beamer. The software also enables the user to capture  images, record videos, and perform measurements BioBlue digital microscopes with integrated 5.0 MP USB-2 camera The DIN WF 10x/18 eyepieces and the semi plan achromatic corrected 45 mm DIN objectives of the BioBlue models generate a crisp high-resolution image. The 120 x 120 mm plain stage and 130 x 130 mm stage with double-layered 70 x 28 mm mechanical X-Y stage enables precise and stable positioning of the specimen. With Abbe condenser, NeoLED, or LED illumination with built-in rechargeable batteries for corded and cordless use PROPERTIES Monocular and binocular models Reserved quadruple nosepiece for semi plan objectives Semi plan objectives Integrated digital 5.0 MP USB-2 camera Provided with APL (Anti-bacterial Protection Layer) Integrated mechanical stage LED and NeoLED illumination Cordless operation EYEPIECE(S) • WF10x/18 mm Wide field • Polarization models are supplied with one extra WF 10x/18 mm eyepiece with crosshairs and micrometer • Secured and with pointer for monocular models •The BioBlue EVO models are supplied with WF 10x/20 mm eyepieces HEAD • All heads are 360° rotatable and secured • Monocular models with 45° inclined tubes • Binocular and trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube • The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image • Models with digital head are supplied with a integrated 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixel resolution USB 2.0 camera • Models supplied with a 7” LCD screen • Optional discussion head available     NOSEPIECE Reversed quadruple nosepiece on ball bearings. Models for polarization are supplied with a swing-out analyzer OBJECTIVES – 45 MM parfocal • Supplied with semi plan 4x/0.10, 10x/0.25, S40x/0.65, S60x/0.85, S100x/1.25 oil immersion objectives configuration is depending on model • The S40x, S60x and S100x oil immersion objectives are spring loaded (to prevent damage to sample and objectives) All optics are anti-fungus treated and anti-reflection coated for maximum light throughput (Photo: AE.5591, AE.5593, AE.5594, AE.5597, AE.5599, AE.5601) FOCUSING • Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation • Total travel approximately 23 mm • Supplied with an adjustable rack stop to prevent damage to sample and objectives • The coarse adjustment is equipped with friction control STAGE • 130 x 130 mm with mechanical 70 x 28 mm X-Y translation stage except for models BB.4200 and BB.4205 • These models have a 120 x 120 mm plain stage supplied with two non-removable object clamps • The models for polarization are supplied with 129 mm round stage, 360° rotatable and two object clamps (Photo left: Rotatable stage for X-Y mechanical stage and polarizer on lamp house (AE.5155) (Photo right: Optional polarization attachment with analyzer and slider)   POLARIZATION EQUIPMENT The swing-out analyzer is mounted in a slider under the head. The rotatable 360° polarizer fits on the collector lamp POLARIZATION MODELS • Supplied with one extra WF 10x/18 mm eyepiece with crosshairs and micrometer • Equipped with analyzer, mounted in a slider under the head • 360° Rotatable, graduated polarizer on the lamp house • Standard supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum) and an integrated 100-240 Vac power supply • Polarisation attachments for standard microscopes are available optionally CONDENSER Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder ILLUMINATION • Binocular and trinocular models are supplied with an intensity adjustable 1 W NeoLED™ illumination system for increased light output • Monocular models are supplied with an adjustable 1W LED illumination • The models for polarization are supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum), rechargeable batteries with an integrated 100-240 V power supply. However 20 W halogen illumination is also available for polarization models on special request • The EVO models are equipped with Köhler NeoLED™ illumination • All BioBlue microscopes are supplied with rechargeable AA batteries and integrated 100-250 Vac power supply for cordless operation CAMERA AND SOFTWARE Models with integrated 3.2 MP CMOS USB-2 camera are supplied with the ImageFocus 4 software. Besides capturing of images and videos, this software allows measurements on still and live images and performing annotations on captured images. Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations STORAGE AND TRANSPORTATION from left to right: BB.4300 – AE.9918 – AE.9912 ANTI-THEFT SLOT At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft PACKAGE CONTENT • Supplied with power cord, three rechargeable AA batteries, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil for models with S100x objective • Polarisation models are supplied with a cross hair eyepiece for centering • All packed in a polystyrene box
