Analyticals

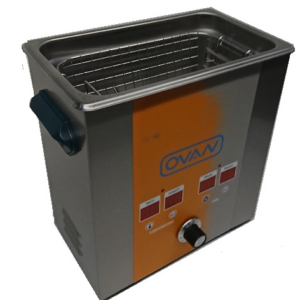

Description Ultrasonic bath for cleaning Thermostatized Ultrasound bath. S. Steel inner tank Front part anti spill Temperature controlled by microprocessor. Integrated control display Drain valve (except 0,7 and 2,5 cleaner). Timer: 0- 30 min Lid included Basket included Thermostat from Ambient temp  to 80ºC

Description Ultrasonic bath for cleaning Thermostatized Ultrasound bath. S. Steel inner tank Front part anti spill Temperature controlled by microprocessor. Integrated control display Drain valve (except 0,7 and 2,5 cleaner). Timer: 0- 30 min Lid included Basket included Thermostat from Ambient temp  to 80ºC

Description Ultrasonic bath for cleaning Thermostatized Ultrasound bath. S. Steel inner tank Front part anti spill Temperature controlled by microprocessor. Integrated control display Drain valve (except 0,7 and 2,5 cleaner). Timer: 0- 30 min Lid included Basket included Thermostat from Ambient temp  to 80ºC

Description Ultrasonic bath for cleaning Thermostatized Ultrasound bath. S. Steel inner tank Front part anti spill Temperature controlled by microprocessor. Integrated control display Drain valve (except 0,7 and 2,5 cleaner). Timer: 0- 30 min Lid included Basket included Thermostat from Ambient temp  to 80ºC

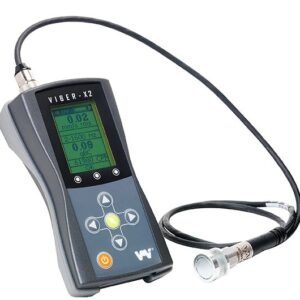

Description Included on delivery: Accelerometer with integrated cable and magnet, shoulder bag, traceable calibration certificate, and charger for Lithium The VIBER X2™ instrument has the following features: Accurate measurements for 4 selectable frequency ranges. Real-time measurement of the total vibration level and the Bearing Condition (BC), shown simultaneously. The largest amplitude peak frequency in RPM or Hz in main screen display. Measurement units and measurement presentation may be selected by the user from the following list: g-value = (RMS, Peak or Peak-Peak) a = m/s² (RMS, Peak or Peak-Peak) V = mm/sec (RMS, Peak or Peak-Peak) V = inch/sec (RMS, Peak or Peak-Peak) D = mills (RMS, Peak or Peak-Peak) D = µm (RMS, Peak or Peak-Peak) Bearing Condition measurements. Bar indicator shows measurement stability. Large dynamic range of the vibration signal (up to 50 g). Low power consumption. Clear vibration, temperature and danger alarms by red and yellow colour LED’s. Easy to understand and operate. Advanced technology with DSP processor. Display with backlight. Several languages are available. Adjustable Auto-shut off for energy saving. Dust and waterproof, for rough use (IP 65).

Description Digital Vibrometer, Included on delivery: Accelerometer with integrated cable and magnet, shoulder bag, with traceable calibration certificate, Charger for Litium, PC software for trending and manual on USB-stick. VIBER X2 Pro is designed for maintenance and repair teams and operators personnel that needs a reliable, fast and easy to use tool for basic condition monitoring in rough conditions. Now with trend function / software. Features: Real-time measurements of the total vibration level and the Bearing Condition (BC), shown simultaneously Bar indicator displays measurement stability Fast and easy fault analysis displaying the five largest amplitude peaks frequency in RPM or Hz on main screen display Low power consumption Overflow alarm limits are clearly displayed with a yellow and red LED indicator Several languages are available Dust and waterproof, for rough use (IP65) Pc-software for Trend View Up to 100 measurements can be saved. Below is the Trend function / software sample

Description DIGITAL X-STREAM FLOW METER 1.5″(Schedule 40 iron pipe)  2 – 200 SCFM with Drill Guide Kit X-Stream™ Flow Meters Check air flow – monitor usage and waste!!! The X-Stream™ Flow Meter represents a radical departure from conventional flow meter designs, providing easy installation, low cost, and accurate placement of the probes in the air stream. The meter clamps around a pipe with its probes projecting into the pipe through drilled holes.The low cost of the meter makes it ideal for installation at points throughout an air distribution system to track valuable compressed air and assess system operation. SPECIFICATIONS Item #: 90093-DRG-9 Item Name: X-Stream™ Flow Meters Flow Rate: 200 scfm Pipe Size: 1.5 in Input Current @ 18 to 24 Vdc: 250 mA Turndown Capability: 100:1 Accuracy: 5 percent of reading plus one percent of full scale at air temperatures between 40 ºF and 120 ºF Fluids: Compressed air / Nitrogen Operating Pressure: 200 psig maximum on Schedule 40 steel 30 to 170 psig for best accuracy Maximum Output Resistance: 400 Ω Wetted Materials: Fluoroelastomer (Seal) Gold Stainless Steel Thermal Epoxy Ring Material: Aluminum Display: Four-digit LED display Response Time: One second to 63 percent of final value US Patent: 6,802,217 Pipe Material: Schedule 40 Standard/Certification: Lead Free RoHS Compliant   FEATURES Reliable, durable thermal mass flow technology Milliamp and pulse outputs for logging and remote monitoring 100:1 turndown capability Available for steel pipe, 1/2″ through 2″ No calibration or setup required Complete flow meter in one package   ADDITIONAL INFORMATION The X-Stream™ Flow Meter clamps onto a pipe, with two flow sensing probes projecting into the pipe through 3/16-in. drilled holes. It seals directly to the pipe; no cutting or welding is required for installation. Because each flow meter is made and calibrated for a specific size of pipe, the digital display indicates flow directly, with no setup or adjustment. The meter measures flow by maintaining one probe warmer than the other. It calculates the mass velocity from the amount of heat required, and then calculates the flow on the basis of pipe area. The flow rate, in scfm, is shown on a large, four-digit display; a 4 – 20 mA output and a pulse output permit remote display, totalizing and data collection. Metric display is optional. The X-Stream Flow Meter measures mass flow based on heat and on pipe diameter. Accurate flow rate tracks air consumption. NOTE: Above for american standard steel piping – can also supply to din standard other pipe sizes & copper. Quote on request.

Description DIGITAL X-STREAM FLOW METER 1.5″(Schedule 40 iron pipe) 2 – 200 SCFM – w/o Drill Guide X-Stream™ Flow Meters Check air flow – monitor usage and waste!!! The X-Stream™ Flow Meter represents a radical departure from conventional flow meter designs, providing easy installation, low cost, and accurate placement of the probes in the air stream. The meter clamps around a pipe with its probes projecting into the pipe through drilled holes.The low cost of the meter makes it ideal for installation at points throughout an air distribution system to track valuable compressed air and assess system operation. SPECIFICATIONS Item #: 90093 Item Name: X-Stream™ Flow Meters Flow Rate: 200 scfm Pipe Size: 1.5 in Input Current @ 18 to 24 Vdc: 250 mA Turndown Capability: 100:1 Accuracy: 5 percent of reading plus one percent of full scale at air temperatures between 40 ºF and 120 ºF Fluids: Compressed air / Nitrogen Operating Pressure: 200 psig maximum on Schedule 40 steel 30 to 170 psig for best accuracy Maximum Output Resistance: 400 Ω Wetted Materials: Fluoroelastomer (Seal) Gold Stainless Steel Thermal Epoxy Ring Material: Aluminum Display: Four-digit LED display Response Time: One second to 63 percent of final value US Patent: 6,802,217 Pipe Material: Schedule 40 Standard/Certification: Lead Free RoHS Compliant   FEATURES Reliable, durable thermal mass flow technology Milliamp and pulse outputs for logging and remote monitoring 100:1 turndown capability Available for steel pipe, 1/2″ through 2″ No calibration or setup required Complete flow meter in one package   ADDITIONAL INFORMATION The X-Stream™ Flow Meter clamps onto a pipe, with two flow sensing probes projecting into the pipe through 3/16-in. drilled holes. It seals directly to the pipe; no cutting or welding is required for installation. Because each flow meter is made and calibrated for a specific size of pipe, the digital display indicates flow directly, with no setup or adjustment. The meter measures flow by maintaining one probe warmer than the other. It calculates the mass velocity from the amount of heat required, and then calculates the flow on the basis of pipe area. The flow rate, in scfm, is shown on a large, four-digit display; a 4 – 20 mA output and a pulse output permit remote display, totalizing and data collection. Metric display is optional. The X-Stream Flow Meter measures mass flow based on heat and on pipe diameter. Accurate flow rate tracks air consumption. NOTE: Above for american standard steel piping – can also supply to din standard other pipe sizes & copper. Quote on request.
