Carton Puncture Strength Tester Cardboard Piercing Strength Tester Paperboard Test Equipment

Overview
Essential details
Warranty:
1 Year
Customized support:
OEM
Place of Origin:
Guangdong, China
Brand Name:
JINGYAN
Model Number:
JY-1020
Power:
Electronic
Test range:
(1~48)J
Pressure head:
(100±2) kpa
Resolution:
0.001 J
Friction sleeve resistance:
<0.25 J
Pyramidal head height:
25±0.7 mm
Pyramidal head edge length:
60 mm*60 mm*60 mm
Four gears:
A <6 J; B<12 J; C<24 J; D<48 J
Power supply:
AC220V 50HZ
Display:
LCD Display
Weight:
100kg
Supply Ability
Supply Ability
100 Set/Sets per Month
Packaging & delivery
Packaging Details

Standard export wooden case

Port

shenzhen,guangzhou

Lead time:
Quantity(sets) 1 – 5 >5
Lead time (days) 15 To be negotiated

Carton Puncture Strength Tester Cardboard Piercing Strength Tester Paperboard Test EquipmentCarton Puncture Strength Tester Cardboard Piercing Strength Tester Paperboard Test Equipment

Appliance:

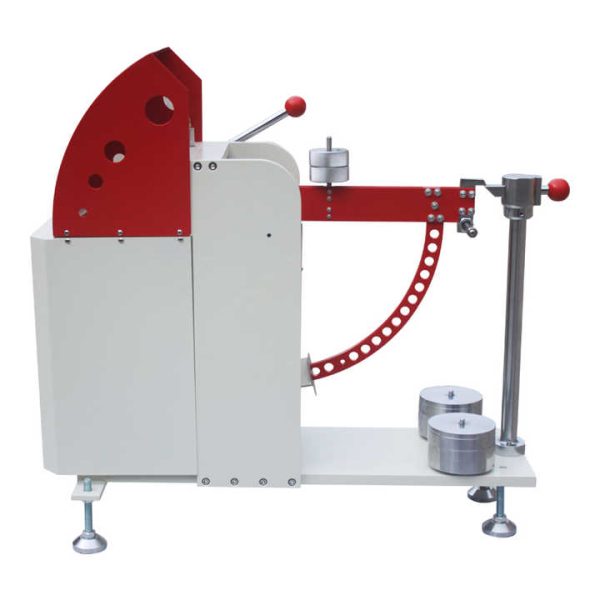

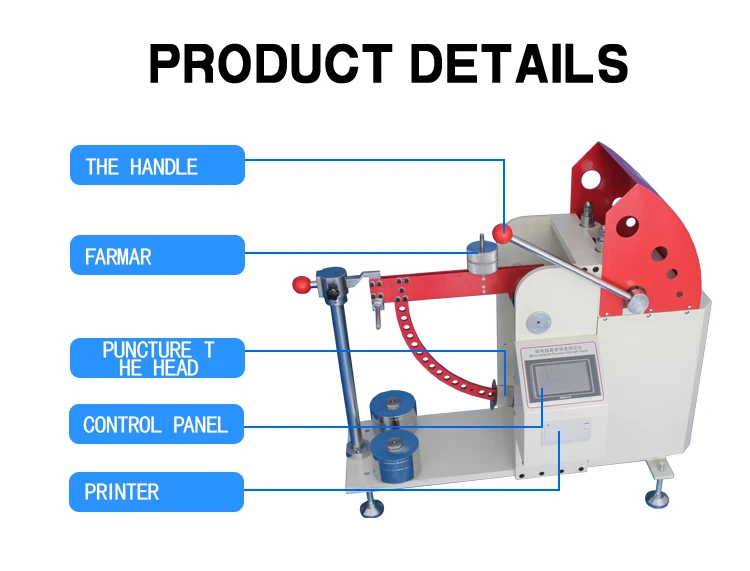

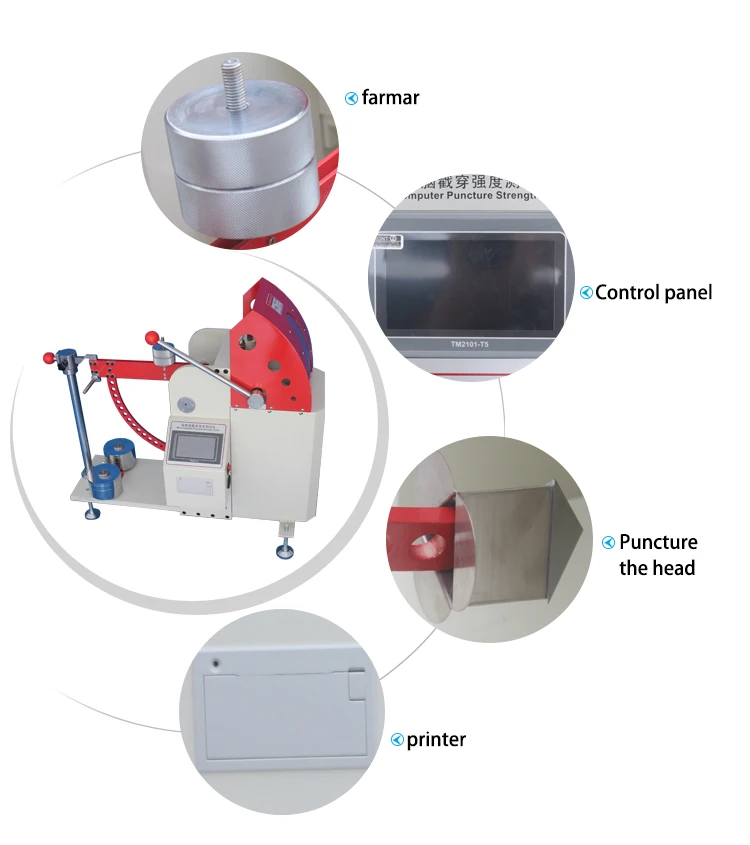

A puncture head, consisting of a stainless steel right-angled triangular pyramid is attached to a solid arm. The arm, under load, swings through an arc until it contacts the specimen clamped between two horizontal plates.

Carton Puncture Strength Tester Cardboard Piercing Strength Tester Paperboard Test Equipment

Test range
(1~48)J
Four gears
A <6J; B<12J; C<24J; D<48J;
Resolution
0.001J
Friction sleeve resistance
<0.25J
Pressure head
 (100±2)kpa
Pyramidal head
edge length 60mm×60mm×60mm height 25±0.7mm
