Choice MMED100H/ MMED300A /MMED6000DP spo2 sensor ,6pin spo2 prode digital
1. Product Description:
Compatible Brand |
1.Choice digital 6000DP Spo2 sensor,6pin 2.Connector:6pin Digital 3.Compatibility:ChoiceMMed: MMED100H/ MMED300A /MMED6000DP |
||
Sensor Type |
Adult Finger, Pediatric Finger, Adult Soft Tip, Pediatric Soft Tip, Infant Soft Tip, Neonate Wrap,Multi-site, Adult Ear Clip, Adult/Neo. Wrap,Pediatric/Inf. Wrap |
||
Probe House |
ABS shell (finger clip); Silicon rubber boot(soft and multi-site) |
||
Cable Material |
TPU Light Gray jacket, 4.0mm diameter |
Sensor Connector |
Plastic adapter with gold plated pins |
LED |
660nm/905nm/940nm |
Photo Detector |
4mm² /8mm²(size) |
Cable Length |
1.1m/1.5m/3m |
Package |
1pc in one ziplock bag |
2. Product Technical Parameters:
LED |
Red |
660nm normal |
Infrared |
880/905/940nm normal |
|
Text Range |
Oxygen Saturation(%SpO2) |
0% to 100% |
Pulse Rate(bpm) |
30 to 245 |
|
Accuracy |
SpO2 |
±1%(90~100%) |
±2%(80~90%) |
||
±3%(below 70%) |
||
Pulse Rate |
±2bpm(30-250bpm) |
|
Storage and Transport Environment |
-10℃~+40℃ |
|
Operating Temperature |
±5℃~+40℃ |
|
Operating/Storage/Transportation Humidity |
0%-80% |
|
Hyperbaric Pressure |
86kPa-106kPa |

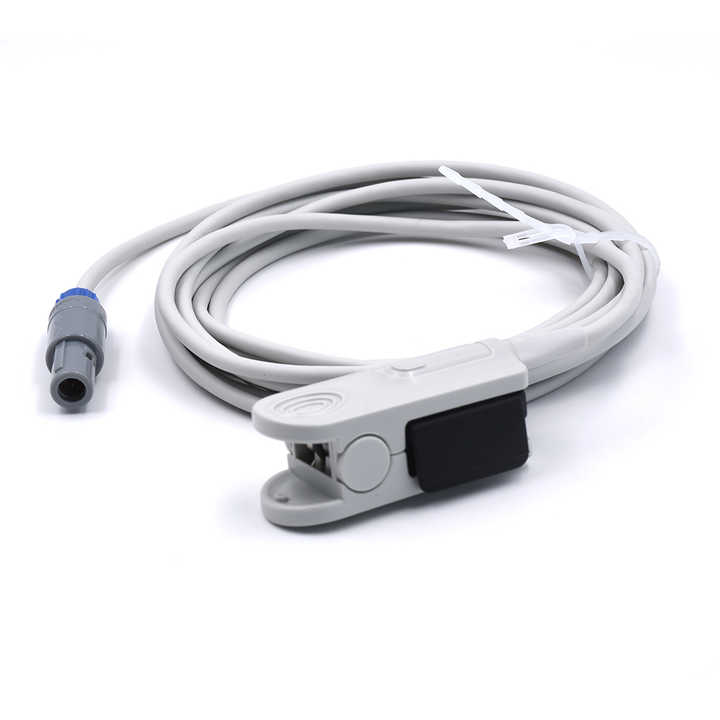

3. Caremed Product Pictures:
4. Caremed Product Test Report:
5. More Main Products from Caremed:
A. SpO2 Sensor, SpO2 Extension;
B. Holter ECG Cable;
C. ECG/EKG Cable, ECG/EKG Leadwire, ECG Electrodes;
D. IBP Transducer, IBP Cable;
E. NIBP Cuff, NIBP Hose;
F. Temperature Probe, Fetal Transducer, CTG Belt;
G. Ultrasound Transducer, Ultrasound Probe Repair.
All Compatible Brands Available for the above. (Contact Now, Save More)
