Overview
Essential details
- Warranty:
-
1 Year, 1 Year
- Customized support:
-
OEM, ODM, OBM, OEM, ODM, OBM
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
hongjin
- Power:
-
Electronic
- Product name:
-

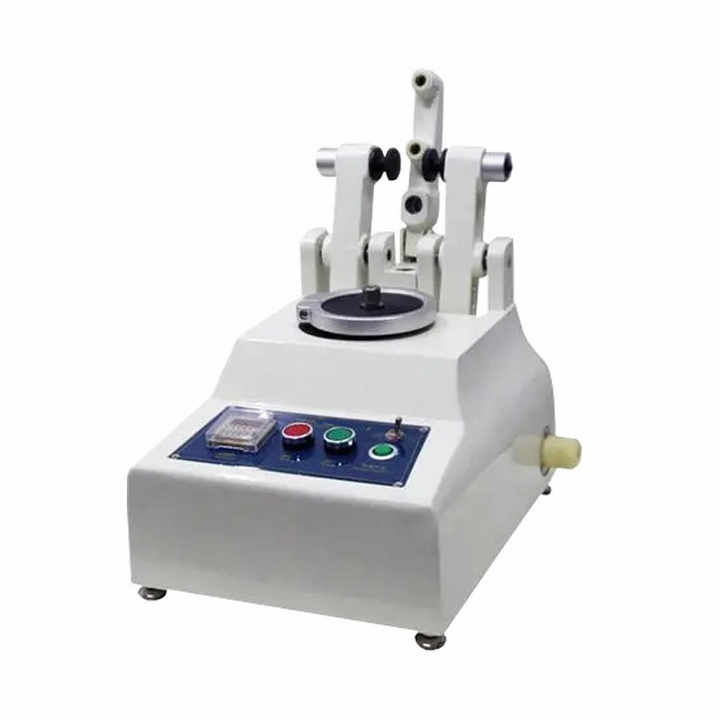

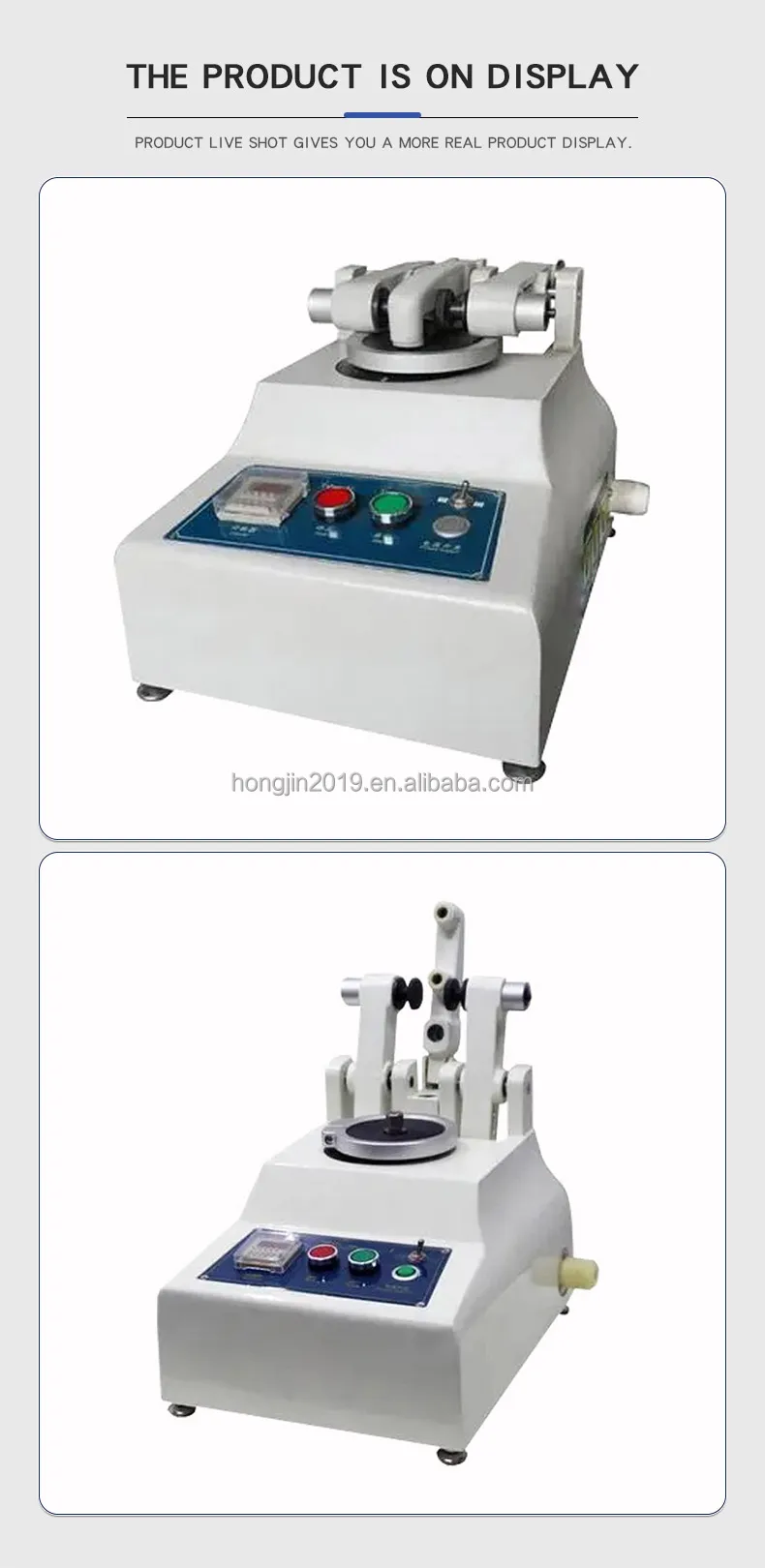

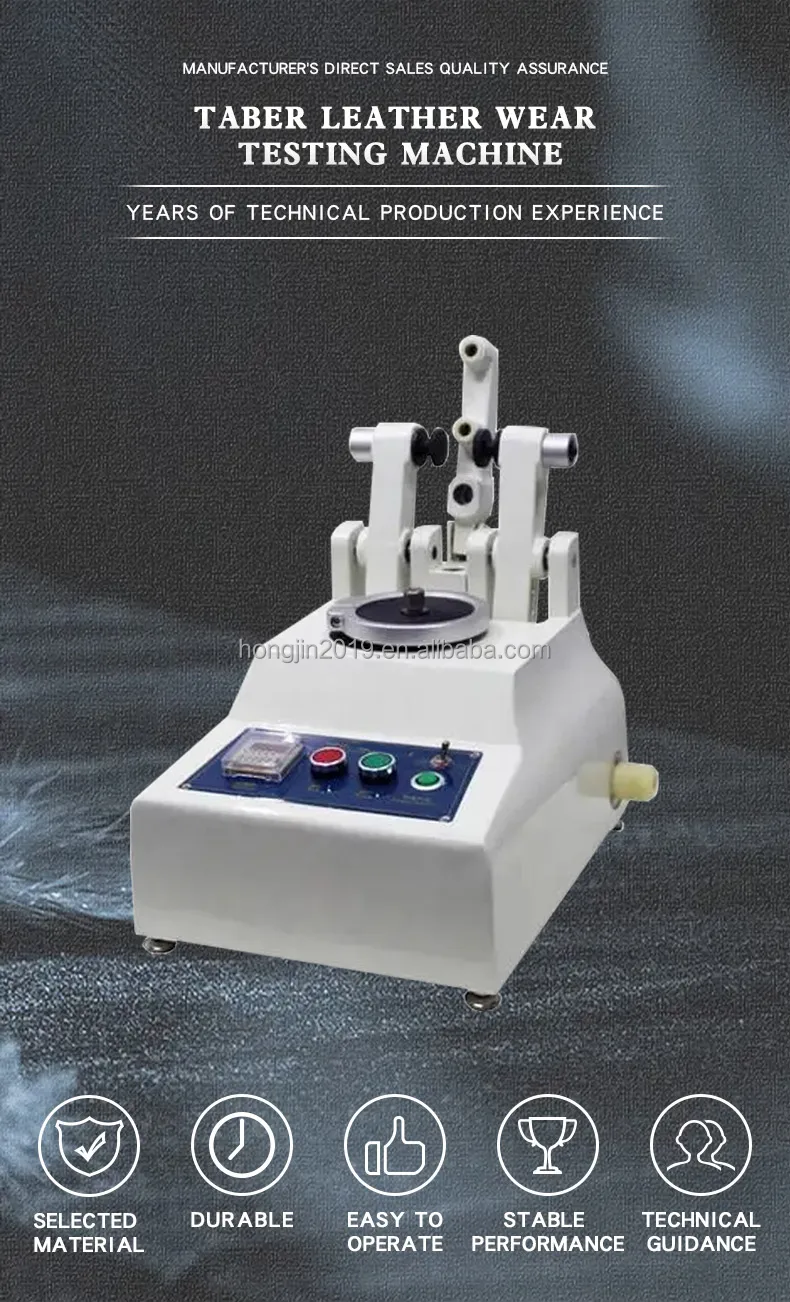

TABER leather wear testing machine
- certificate:
-
CE.ISO
- Profile size:
-
530*320*310mm
- Turning speed:
-
60/72rpm
- Load:
-
250g, 500g, 750g, 1000g
- Counter:
-
LCD, 0~999.999
- Wear rate:
-
0.32 m/SEC
- Weight (approx):
-
18kg (without vacuum cleaner)
Packaging & delivery
- Packaging Details
Fumigation-free export wooden box
- Port
shenzhen
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 5 6 – 15 16 – 20 >20 Lead time (days) 6 10 15 To be negotiated
Product Paramenters
product introduction
Coating Floor Wear Testing Machine Leather Plastic Surface Wear Resistance TABER Leather Wear Testing.This machine is used for wear resistance test of leather, cloth, paint, paper, floor tile, plywood, glass, natural rubber and so on. The method is to cut the specimen with a standard cutter, wear it with a specified type of grinding wheel, and wear it with a certain weight. After the specified number of revolutions, remove the specimen, observe the condition of the specimen or compare the weight difference of the specimen before and after the test.
|

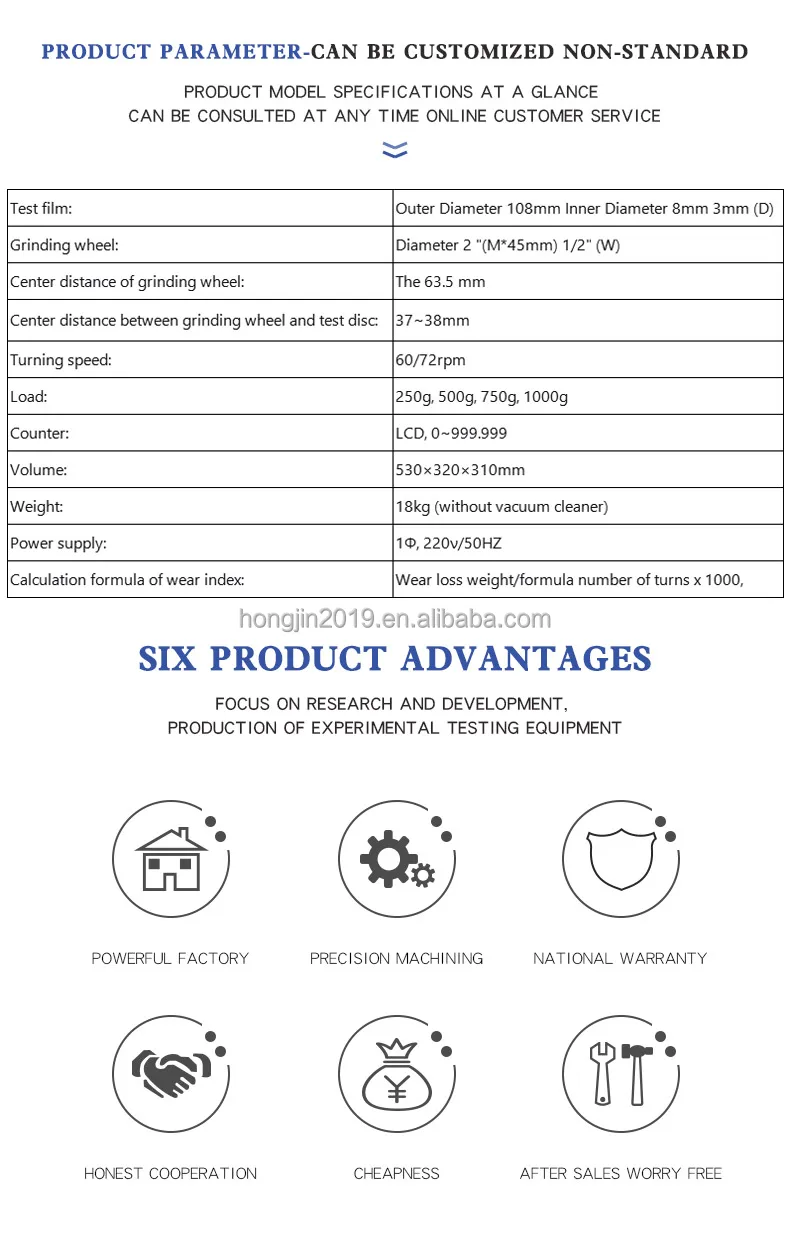

Test film:
|
Outer Diameter 108mm Inner Diameter 8mm 3mm (D)
|
|
Grinding wheel:
|
Diameter 2 “(M*45mm) 1/2” (W)
|
|
Center distance of grinding wheel:
|
The 63.5 mm
|
|
Center distance between grinding wheel and test disc:
|
37~38mm
|
|
Turning speed:
|
60/72rpm
|
|
Load
|
250g, 500g, 750g, 1000g
|
|
Counter:
|
LCD, 0~999.999
|
|
Volume:
|
530×320×310mm
|
|
Weight:
|
18kg (without vacuum cleaner)
|
|
Power supply:
|
1Φ, 220ν/50HZ
|
|
Calculation formula of wear index:
|
Wear loss weight/formula number of turns x 1000,
|
Products Description
Company Profile
FAQ
Intimate voltage
serviceConsiderate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance
indicator.
indicator.
Excellent After sale Service
12 months warranty. Besides, we can help you to repair your problem controller freely, Free
replacement parts, even it’s not from our factory’s. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
