DiluFlow Elite 5kg – Available On Request, Prices in Dollars

Description

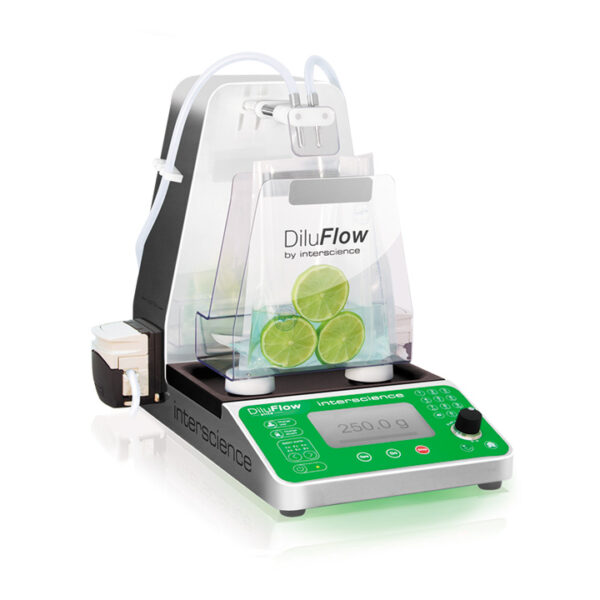

DiluFlow Elite 5kg
Model: Ref 503 105 (single pump)
              Ref 503 205 (double pump)
Manufacturer:  INTERSCIENCE






The DiluFlow Elite automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 5 kg. Its full traceability enables the recording of all operations. It is programmable and connectable for up to 6 diluents and offers the best solution to dilute any type of sample.
TECHNICAL SPECIFICATIONS OF DILUFLOW ELITE 5KG

Reference
503 105 DiluFlow Elite 5 kg (single pump)
503 205 DiluFlow Elite 5 kg (double pump)

BagOpen height < 30 cm Y Y Removable drip tray (patented) Y Y BagOpen with GeckoGrip system (patented) Y Y Magnetic stand for BagOpen (patented shape) Y Y LightCode: color status LED Y Y Compatible with booster kit Y Y 304L stainless steel body Y Y Stainless casting electromechanical core Y Y Robotic arm Y Y Compatible with Jumbo kit Y Y Protection for tubing nozzle Y Y Up to 6 pumps Y Y Multi-dispensing mode (patented) Y Y Powder mode Y Y 24 editable programs Y Y Bidirectional connectivity Y Y Auto-tare function Y Y Weighing mode Y Y Resolution up to 200 g 0.01 g Weighing range 0.1 to 5000 g Max weight without support 7000 g Weighing accuracy 0 g to 100 g: ± 0.05 g / 100 g to 5000 g: ± 0.1% Minimum weight required for dilution 5 g Minimum weight required for distribution 5 g Dilution factor 1/2 to 1/1000, customizable fractions Dilution/distribution accuracy > 99% in Standard or Accurate mode (in optimal conditions)

Dilution time for a 25g sample diluted to 1/10
< 8 s (with booster kit in Fast mode) Dilution time for a 375g sample diluted to 1/10 < 75 s (with booster kit in Fast mode) Distribution time for 90 mL < 6 s (with booster kit in Fast mode) Distribution time for 225 mL < 9 s (with booster kit in Fast mode) Max number of pumps 2 integrated + 4 external Dilution/distribution mode Fast / Standard / Accurate Traceability Printer / Export to ExcelTM file / CSV file Export on USB key / LIMS Exported data Sample weight / Total weight / Dilution factor / Dilution accuracy / Diluent / Sample number / Diluent lot number / Date / Time / Last calibration date / Name of operator / Name of program Connection 2 USB ports (type A) to connect a printer, keyboard, bar-code reader, USB key / 1 USB port (type B) to connect a computer / Jack socket to connect a foot pedal / Handy gun / Ethernet connection for LIMS Net weight 12.8 kg 15.3 kg Dimensions (w x d x h) 31.3 x 42.1 x 37.7 cm 37 x 42.1 x 37.7 cm Box (w x d x h) 55 x 55 x 53 cm Gross weight 18.8 kg 21.4 kg Language English, French Voltage – Frequencies 100-240 V~ 50/60 Hz Fuses T3.15A L 250V 5×20 mm Power 60 W International protection marking 32 Warranty 1 year In compliance with ISO 7218 – ISO 6887 Delivered with: 1 drip tray 400, 1 or 2 pumps, 1 protection for distribution nozzle, 1 distribution assembly (GL45 – Ø 6,4 mm) per pump, 1 USB key, 1 USB cable, 1 power cord, 1 BagOpen 400 for diluters, User’s Manual, 1 conformity certificate, 1 warranty card, 10 GeckoGrip, 1 pack of adhesive putty, 1 Allen wrench, blender bags samples   PRODUCT SHOW
