Overview
Essential details
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
JCr
- Model Number:
-
JIBPT–01-BD
- Disinfecting Type:
-
EO
- Properties:
-
Medical Materials & Accessories

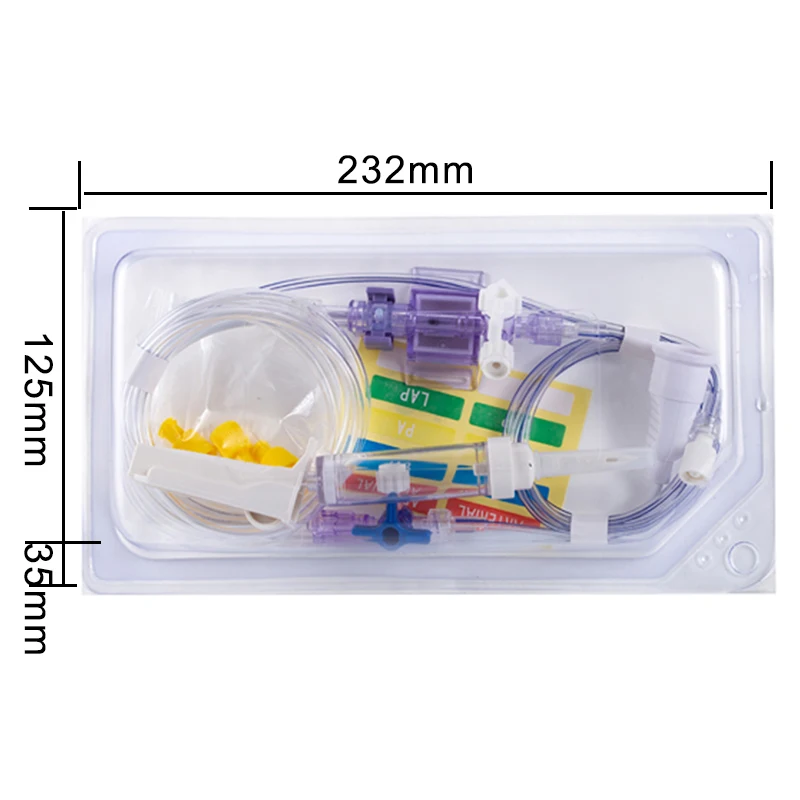

- Size:
-
233*125*37.6mm
- Stock:
-
Yes
- Shelf Life:
-
3 years
- Material:
-
PVC
- Quality Certification:
-
ce
- Instrument classification:
-
Class III
- Safety standard:
-
ISO 13485
- Product name:
-
Single IBP kit-BD type
- Certificate:
-
CE/IS013485
Supply Ability
- Supply Ability
- 400000 Piece/Pieces per Month
Packaging & delivery
- Packaging Details
A case of 40 sets
- Port
Shenzhen
- Picture Example:
-
- Lead time:
-
Quantity(pieces) 1 – 1000 1001 – 5000 >5000 Lead time (days) 7 14 To be negotiated
Product Description
|
Properties
|
Medical Materials & Accessories
|
|
Product Name
|
BD disposable IBP transducer
|
|
Brand Name
|
JCR
|
|
Model Number
|
JIBPT-01-BD
|
Details Images
|
Main technical parameters and working environment requirements:
|
||||||||
|
Disposable Pressure Transducer
|
||||||||
|
Barometric pressure
|
70~106Kpa
|
|||||||
|
Relative humidity
|
10~90% (non-condensing)
|
|||||||
|
Operating pressure range
|
-50 ~ + 300 mmHg
|
|||||||
|
Sensitivity
|
5.0μV/V/mmHg ±3%
|
|||||||
|
Nonlinearity and hysteresis
|
full-scale reading±1.5%
|
|||||||
|
Input impedance
|
1200Ω ~3200Ω
|
|||||||
|
Zero pressure offset
|
-20mmHg~+20mmHg
|
|||||||
|
Thermal offset shift
|
≤±0.3mmHg/°C
|
|||||||
|
Offset drift
|
After warm-up for 20 seconds, drift within 2 mmHg within 8 hours
|
|||||||
|
Thermal span shift
|
≤±0.1%/°C
|
|||||||
|
Frequency response
|
Standard pressure set (48 “/ 12”) is 40 Hz; Separate sensor > 200 Hz
|
|||||||
|
Defibrillator withstand
|
Defibrillation depends on the final connection of the equipment.
|
|||||||
|
Leakage current
|
Leakage current is dependent on the final connection of the equipment
|
|||||||
|
Overpressure load
|
-400~+4000mmHg
|
|||||||
|
Shock resistance
|
Withstand falling from one meter for three times
|
|||||||
|
Light sensitivity |
When exposed to a 3400°K tungsten light, candle light at 3000 feet, it’s less than 1 mmHg under rated voltage.
|
|||||||
|
Storage and transport environment requirements
|
– 20 ° C~ + 60 ° C, < 90%(non-condensing), no corrosive gas and indoor ventilation, and to avoid high temperature and cold.
|
|||||||
|
Contact with the human body
|
≤168h
|
|||||||
|
Intra-system velocity
|
||||||||
|
Flow
|
2-5mL/h
|
|||||||
|
Intra-system velocity refers to the velocity under 6.00 VDC and 25°C, unless there are additional instructions.
|
||||||||
|
Product shelf-life
|
3 years
|
|||||||
