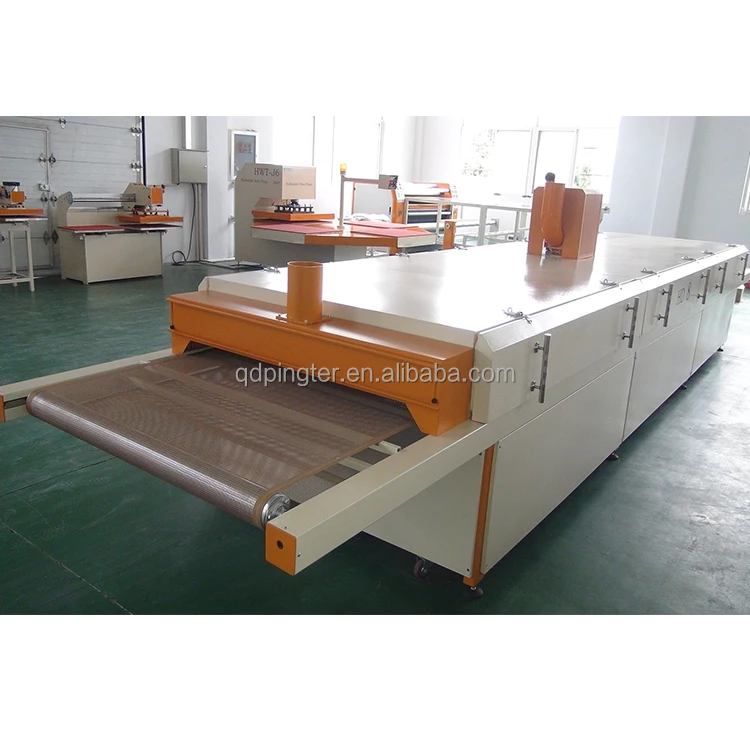

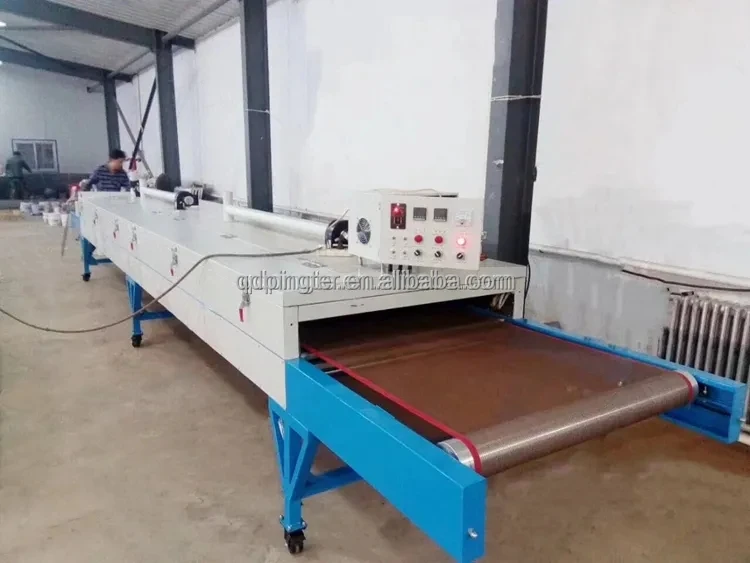

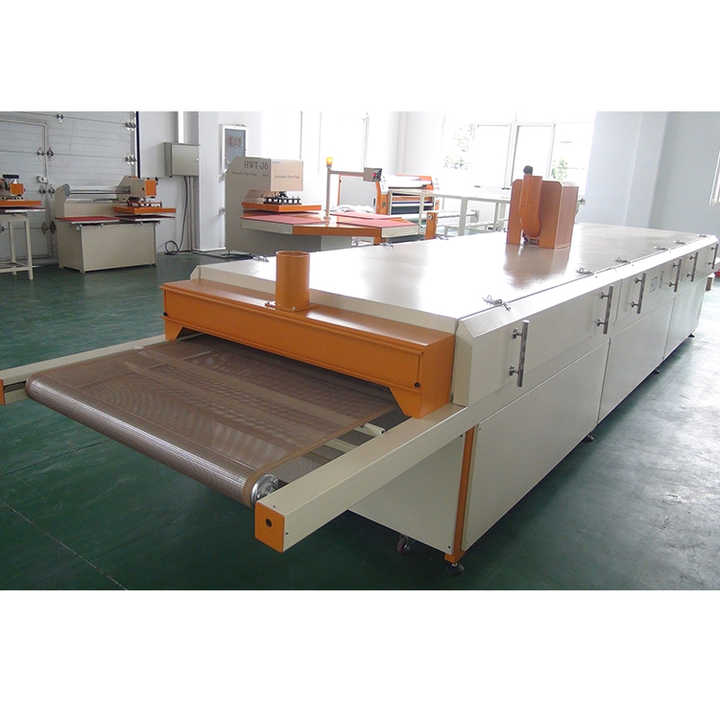

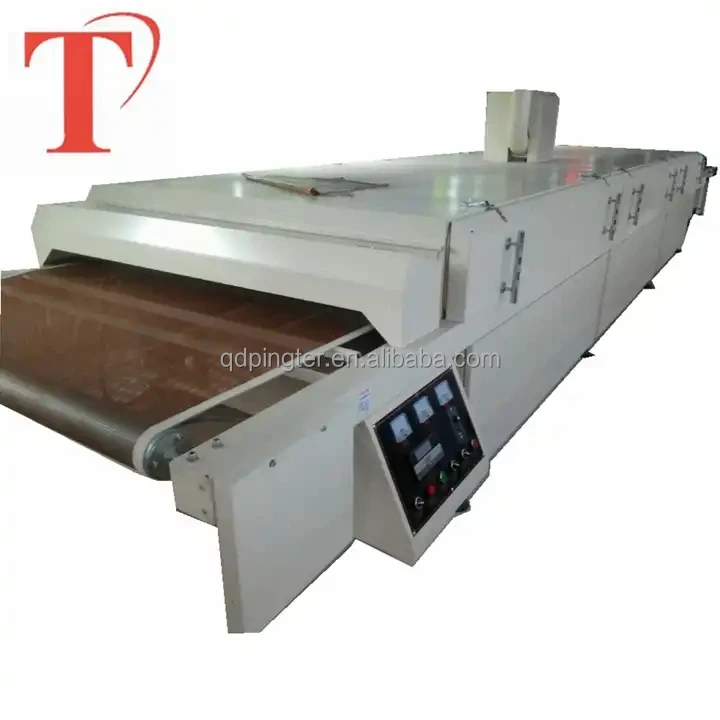

Electronic Screen Printing Drying Tunnel Mesh Belt High Grade Energy-Save Tunnel Drying Machine
|
Items
|
High Grade Tunnel Dryer
|
||
|
Model
|
PT-D4
|
||
|
Belt Length(L*W)
|
8000*1000mm
|
||
|
Length of Heating Area
|
6000mm
|
||
|
Belt Speed
|
2-16m/min.
|
||
|
Max.temperature
|
200°C
|
||
|
Voltage/Power
|
380V/ 26.5KW
|
||
|
G.W.
|
1000kgs
|
||
|
Machine Dimensions(mm)
|
8000*1260*1350
|
||
|
Packing Sizes(mm)
|
2620*1440*1920
|
||
Features:
1. The far-infrared lamp has a strong radiation penetration force, so that the processed object is evenly dried from the inside to the outside.
2. Room temperature ~ 200 degrees Celsius arbitrary setting
3. The hot air circulation system makes the internal heat even.
4. The segmentation self-controls the curing temperature, and the intelligent digital display temperature controller automatically controls the constant temperature.
5. Stepless frequency control system, can set the optimal temperature according to the needs of the work.
6. Mesh belt material: high temperature Teflon mesh belt / rubber roller drive / pvc conveyor belt.
7. The discharge port is provided with a cooling device.
8. Mesh belt width, total power, length customization.
1. The far-infrared lamp has a strong radiation penetration force, so that the processed object is evenly dried from the inside to the outside.
2. Room temperature ~ 200 degrees Celsius arbitrary setting
3. The hot air circulation system makes the internal heat even.
4. The segmentation self-controls the curing temperature, and the intelligent digital display temperature controller automatically controls the constant temperature.
5. Stepless frequency control system, can set the optimal temperature according to the needs of the work.
6. Mesh belt material: high temperature Teflon mesh belt / rubber roller drive / pvc conveyor belt.
7. The discharge port is provided with a cooling device.
8. Mesh belt width, total power, length customization.
Since in 2005, it has established good relations with many domestic and foreign enterprises. The products sell well all over the country and are exported to Europe, America, Southeast Asia, Middle East, Africa and other regions. They are highly trusted and highly praised by domestic and foreign customers. The company has advanced production and professional technology, R & D team, so that our products can be favored by our customers. After years of development, the company’s main products are screen printing machine(oval printing machine, rotary printing machine and so on ), roller heat transfer machine, T-shirt folding machine, Digital printing machine, heat press machine,
Qingdao Pingte Machinery Equipmate Co., Ltd.is a modern enterprise integrating R&D, production, agency and sales. The company has always been “Provide to customers with efficient and high-quality printing machinery” as their mission, focusing on the printing
industry machinery production, and constantly improve their service levels.
01 Are You a Factory Or a Trading Company?
Factory
02 Do You Accept Customize Machine?
Please communicate with us salesperson at first, we can customize machine on us developing ability.
03 What’s The Payment Item?
We usually do 50% T/T as deposit, 50% balance payment before shipment. Cash payment, L/C also can accept on old customer.
04 Do You Have Any Certificate?
We have CE certificate and original certificate if you need.
05 What’s Your Warranty?
We supply one-year warranty and full time spare parts supplying after warranty.
