- Type:
-
Drying Oven
- Application:
-
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
- Condition:
-
New
- Place of Origin:
-
Hubei, China
- Voltage:
-
AC380V
- Power:
-
11KW
- Dimension(L*W*H):
-
W1000mm*D1000mm*H1000mm
- Key Selling Points:
-
Energy saving
- Warranty:
-
1 Year
- Weight (KG):
-
0
- Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Printing Shops, Energy & Mining, Advertising Company, Other
- Showroom Location:
-
None
- Marketing Type:
-
Ordinary Product
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor, Other
- Material:
-
SUS304, Other
- Product name:
-
Energy Saving SCO-7F Precision Hot Air Drying Machine
- Temp. Range::
-
RT+20℃~ 300℃
- Temp. Uniformity::
-
±2%℃
- Temp. control Accuracy::
-
±1℃
- After-sales Service Provided::
-
Online Support
- After warranty service::
-
Online Support
- Keywords:
-
Hot Air Drying Machine Instrument Electronics Drying Oven
- Supply Ability
- 80 Set/Sets per Month
- Packaging Details
Inner package: soft film with foam
Outer package: standard export wooden Box
Strong package for loading, uploading and long-distance shipment
- Port
Shenzhen/Shanghai/Ningbo port
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 3 >3 Lead time (days) 30 To be negotiated

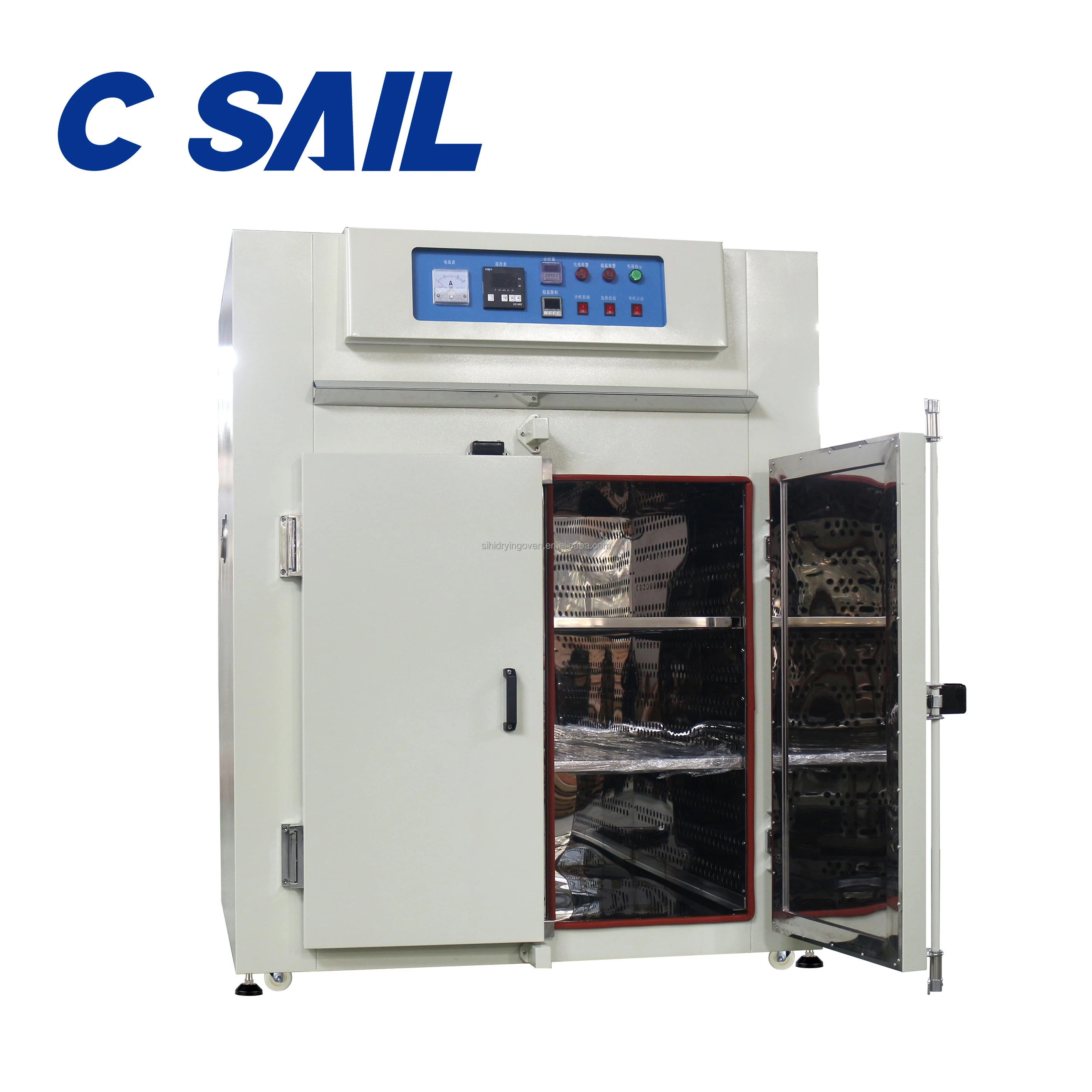

| Product Type: |
Energy Saving SCO-7F Precision Hot Air Drying Machine Instrument Electronics Drying Oven |
| Model No.: |
SCO-7F |
| Power: |
AC380V 3φ 50HZ 11KW |
| Inner Size: |
W1000mm×D1000mm×H1000mm |
| Outer Size: |
W1350mm×D1280mm×H1880mm(For reference) |
| Inner Material: | 1.0mm SUS430# mirror finished Stainless steel plate |
| Outer Material: | 1.2mm SS41# steel plate, baking after anti-rust treatment |
| Seal: | High temperature resistance silicon sealing strip |
| Temp. Range: | RT+20℃~ 300℃ |
| Heating Rising Time: | about 15 mins from RT to 150℃ ( empty testing) |
| Temp. Uniformity: |
±2%(Empty test after the constant temperature of 30mins) |
| Temp. control accuracy: |
±1℃ |
| Timing Range: | 9999Timer, digital display and setting |
| Air Supply: | Forced Hot Air Supply, single side horizontal air supply system, special wind pathway design |

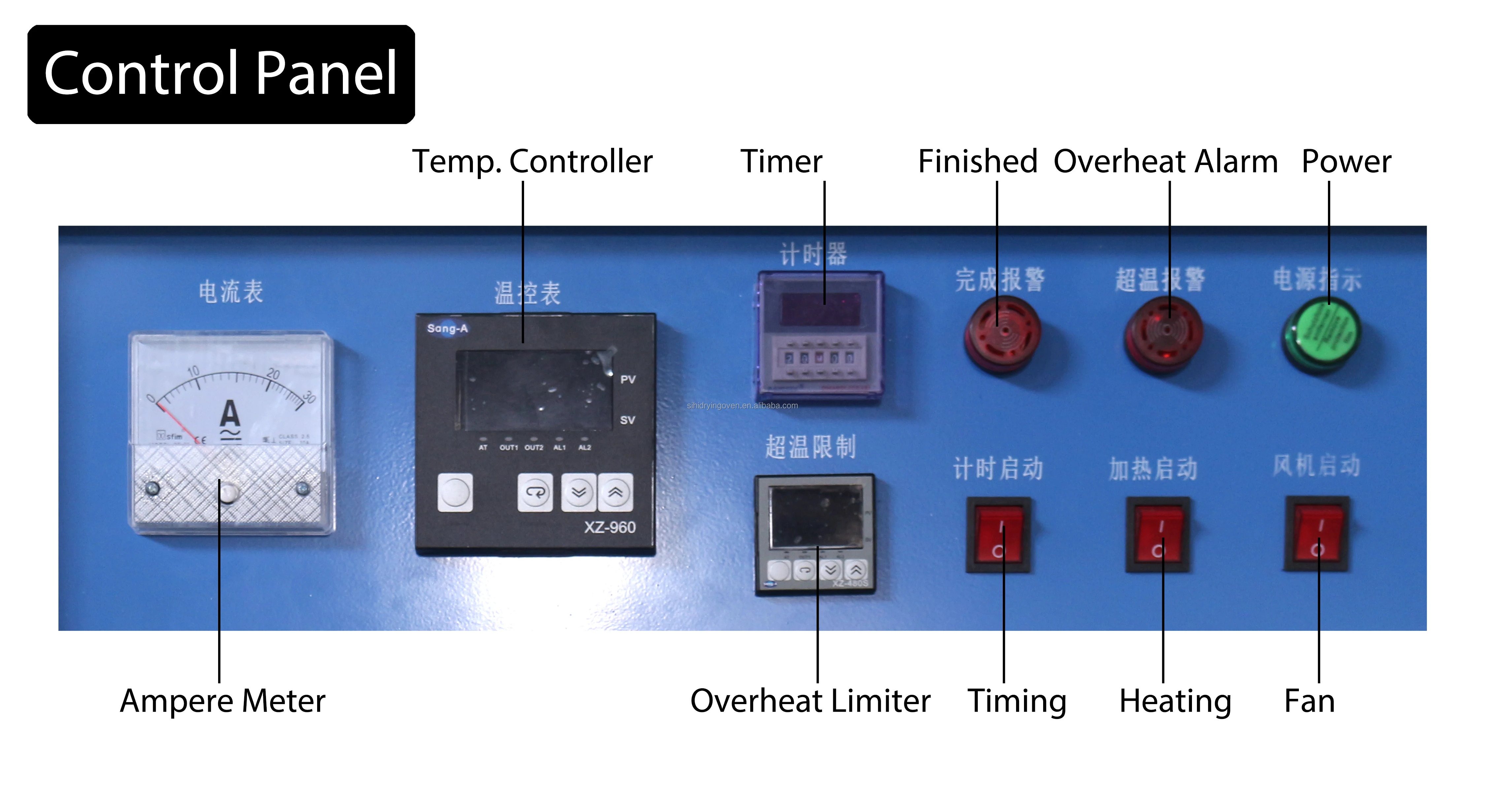

| Controller: |
“XZ-960” temperature controller, PID automatic calculation, “XZ-480” Overheat protection device |
| Safety Device: | All the components do meet international safety standards. |
| Remark: | All the above information can be customized as per the clients’ demands. |
Dongguan Xinzhou Industrial Equipment Co., Ltd., founded in 2005, which is a research and development, production and marketing company with photothermal, vacuum drying ovens, non-standard automation equipment. our main products: industrial hot air ovens, Non-oxidation ovens, Non-dust ovens, Energy saving high-temperature ovens, Tunnel IR hot air dryers, Tunnel microwave drying machines, Air energy hot air drying machines, Vacuum freeze dryers, Vacuum microwave drying machines, Vacuum/nitrogen-filled oven, UV light solid machine, UV electric power supply, High-temperature aging test machine, High-temperature vacuum fusion welding furnace, Vacuum tunnel dryer and non-standard automation equipment, etc.
Hubei Xinhai Industrial Intelligent Equipment Co., Ltd is wholly-owned subsidiaries of Dongguan Xinzhou Industrial Equipment Co., Ltd, which is located in the economic tech development zone of Yicheng, Xiangyang, Hubei Province, with 9000CM2 production area. It has a complete production system from R&D design, incoming material inspection, parts processing, sheet metal, coating, assembly, testing and service follow-up. In 2018, we successfully established a research and development center in cooperation with xiangyang college of mechanical engineering. In 2021, Hubei Xinhai passed the High & New Technology Enterprise certification and got the certificate of AAA Credit Enterprise in China.
We have successfully achieved ISO9001 quality management system certificates and more than 10 certificates of utility model patents.
In 2021, Hubei Xinhai passed the High & New Technology Enterprise certification and got the certificate of AAA Credit Enterprise in China.
