Flexible Packaging Coefficient of Friction Testing and Inspection
Overview
Essential details
- Warranty:
-
1 Year
- Customized support:
-
OEM
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
GBPI
- Model Number:
-
GM-1
- Power:
-
Electronic
- Product name:
-
COF tester
- Application:
-
Packaging Industrial
- Certificate:
-
ISO
- Power supply:
-
AC 220V 50Hz
- Function:
-
To test Coefficients of friction of plastic film
- Standard:
-
ASTM
Supply Ability
- Supply Ability
- 10 Set/Sets per Quarter
Packaging & delivery
- Packaging Details
by wooden case
- Port
Guangzhou
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 1 >1 Lead time (days) 30 To be negotiated
Product Description

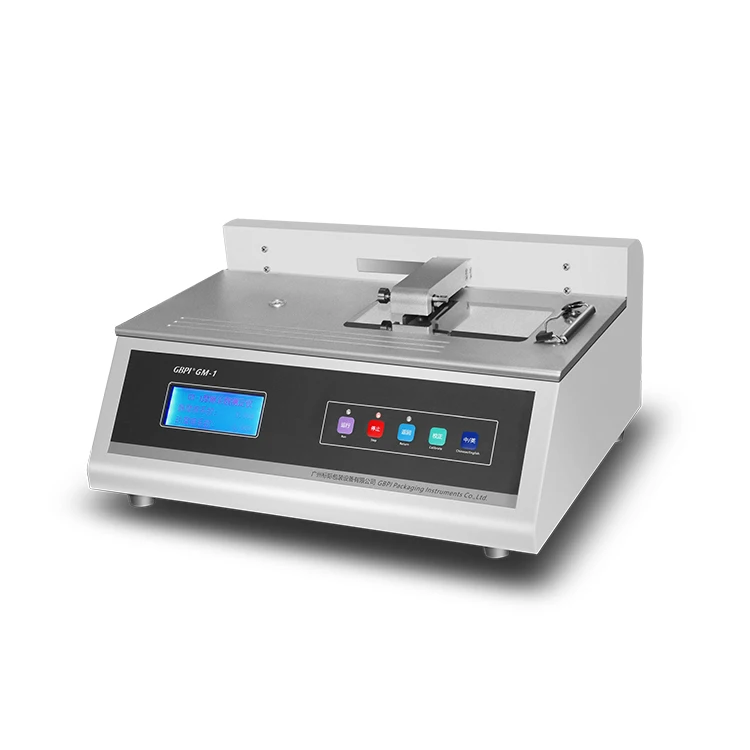

GM-1 ASTM D1894 To test Coefficients of friction of plastic film COF Tester
Coefficients of friction of plastic film, sheeting and similar materials GM-1 is strictly based on ASTM D1894 standard, and is professional applicable to the determination of static and kinetic coefficients of friction of plastic films, sheets, rubber, etc. The coefficients of friction are related to the slip properties of plastic films that are of wide interest in packaging applications. In order to ensure that they perform as expected for the end user, the frictional properties of these films must be characterized and controlled.
Standard
ASTM D1894
Specification
|
Technical Specifications
|
||
|
Item
|
Technical parameters
|
|
|
COF test range
|
0.001~0.999
|
|
|
Precision
|
0.001
|
|
|
Force range
|
0~10N
|
|
|
Sliding speed
|
150mm/min
|
|
|
Slider Dimension
|
63mm × 63mm
|
|
|
Slider weight
|
200g
|
|
|
Sliding platform size
|
200×470mm
|
|
|
Sample thickness
|
≤2mm
|
|
|
Instrument size
|
470 mm × 340mm × 220mm
|
|
|
Weight
|
23Kg
|
|
|
Power supply
|
AC 220V, 50Hz
|
|
Company Profile
We GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and recognized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and recognized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
Certifications
Our Customers
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
