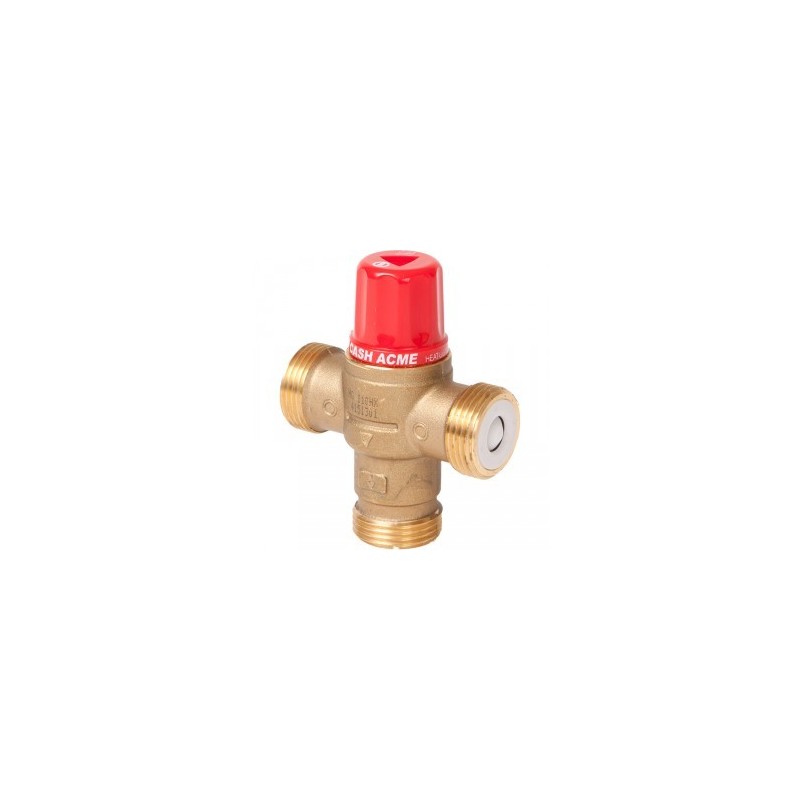

Heatguard HG110-HX Thermostatic Mixing Valve

HG110-HX LF temperature actuated thermostatic mixing valve mixes hot and cold water to deliver reduced temperature hot water. This Heatguard® valve offers a high flow rate which reduces system pressure losses, and robust, low complexity construction. An adjustable and lockable handle prevents tampering. The extended outlet temperature range – up to 176°F (80°C) – makes the 110-HX LF ideal for heating system applications. Adj. outlet temperature range: 85-176°F (29-80°C)
APPLICATION:
Hydronic and radiant heating systems.
APPROVALS AND LISTINGS:
ASSE 1017
CSA B125.3
NSF/ANSI 372
NSF/ANSI 61
Listed by ASSE, IAPMO
PRODUCT OPTIONS
SIZE
MODEL
LEAD-FREE
STANDARD PART #
fACTORY sETTING
BIM
1/2″
HG110-HX THREADED NPT CONNECTIONS
GOOD
24517
115-120° F (46-49°C)

1/2″
HG110-HX SWEAT CONNECTIONS
GOOD
24513
115-120° F (46-49°C)

3/4″
HG110-HX THREADED NPT CONNECTIONS
GOOD
24518
115-120° F (46-49°C)

3/4″
HG110-HX SWEAT CONNECTIONS
GOOD
24514
115-120° F (46-49°C)

3/4″
HG110-HX WITH SHARKBITE CONNECTIONS
GOOD
24867
115-120° F (46-49°C)

1″
HG110-HX THREADED NPT CONNECTIONS
GOOD
24515
115-120° F (46-49°C)
