- Type:
-
Drying Oven
- Application:
-
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Wide Application
- Condition:
-
New
- Place of Origin:
-
Hubei, China
- Voltage:
-
AC380V
- Power:
-
12KVA
- Dimension(L*W*H):
-
W1250mm*D815mm*H1680mm
- Key Selling Points:
-
Energy saving
- Warranty:
-
1 Year
- Weight (KG):
-
0
- Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Energy & Mining, Advertising Company, Other
- Showroom Location:
-
None
- Marketing Type:
-
Ordinary Product
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor, Other
- Material:
-
SUS304, Other
- Product name:
-
High temperature Anti-explosion Drying Oven
- Temp. Range::
-
RT~300℃
- Temp. Uniformity::
-
±2%℃ at 150℃
- Temp. control Accuracy::
-
±1℃
- After-sales Service Provided::
-
Online Support
- After warranty service::
-
Online Support
- Keywords:
-
Drying Oven For Stator And Rotor Iron Cores In Motor Production
- Supply Ability
- 80 Set/Sets per Month
- Packaging Details
Inner package: soft film with foam
Outer package: standard export wooden Box
Strong package for loading, uploading and long-distance shipment
- Port
Shenzhen/Shanghai/Ningbo port
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 3 >3 Lead time (days) 30 To be negotiated
| Product Type: |

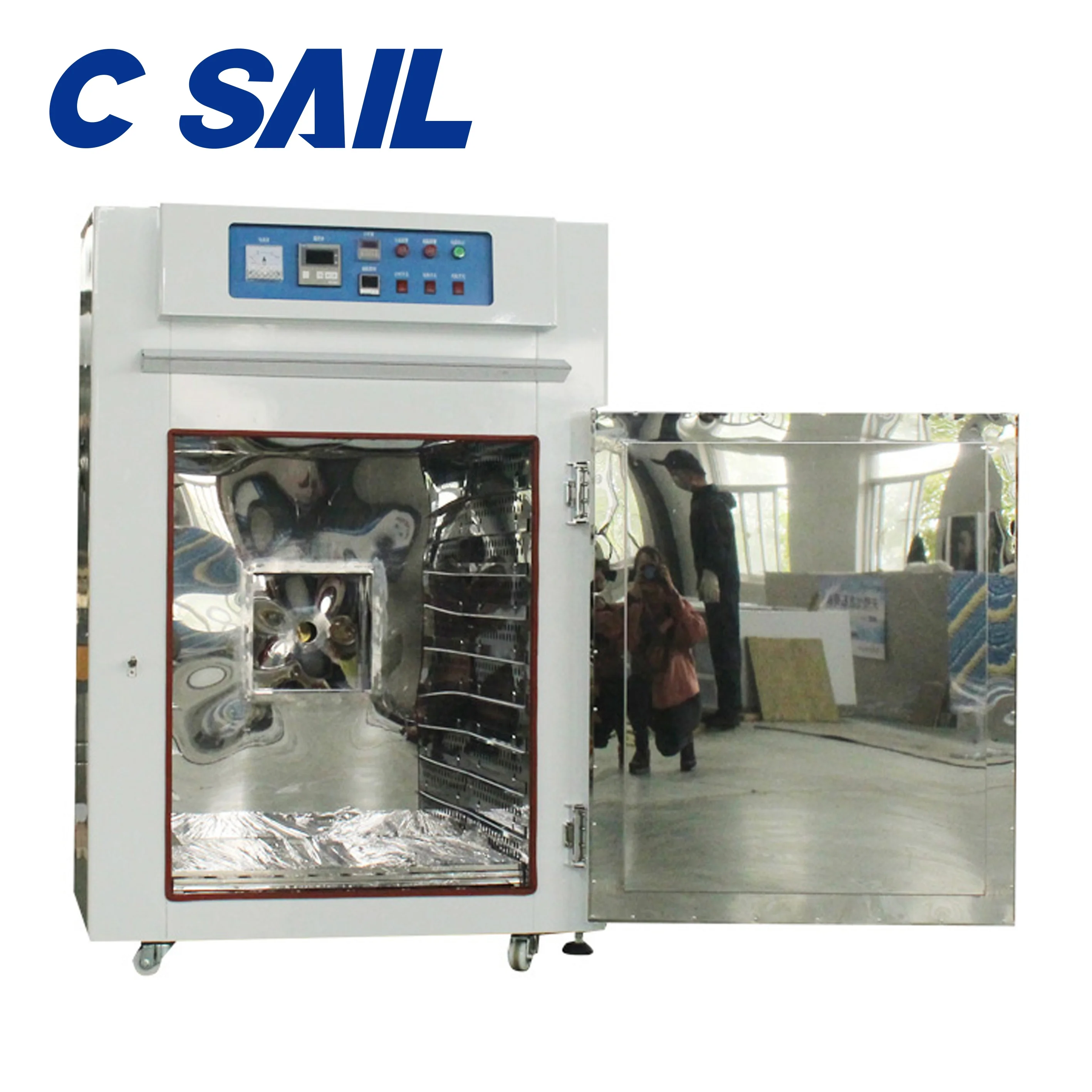

High Temperature Anti-explosion Drying Oven For Baking Of Stator And Rotor Iron Cores In Motor Production |
| Model No.: |
PSCO-4 |
| Power: |
AC380V 3φ 50HZ 12KVA |
| Inner Size: |
W800mm×D600mm×H1000mm |
| Outer Size: |
W1250mm×D815mm×H1680mm(Reference) |
| Inner Material: | SUS430# Mirror Finished Stainless steel sheet |
| Outer Material: | SS41# Steel Sheet, baking after anti-rust treatment |
| Seal: | High temperature resistance silicon sealing strip |
| Temp. Range: | RT~300℃,Normally used 150℃, |
| Heating rising time: | about 15mins from RT to 230℃ |
| Temp. Uniformity: |
±2%℃ |
| Temp. control Accuracy: |
±1℃ |
| Timing Range: |
9999Timer,digital setting |
| Air Supply: | Force Hot Air Supply,Single side horizontal air supply system |

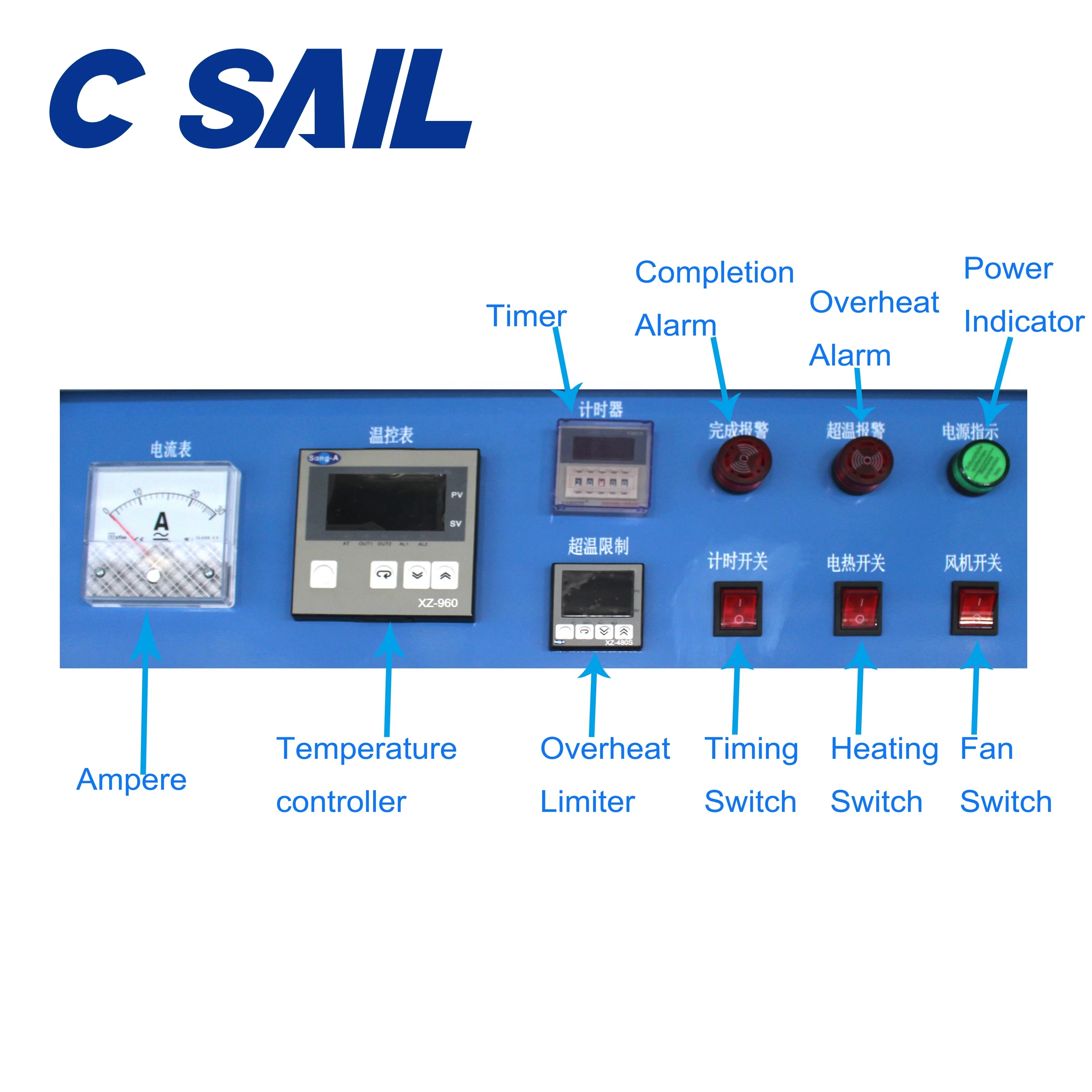

| Controller: |
“XZ-960s”Temperature Controller,SSR output, LED display, “XZ-480s” overheat protection device |
| Safety Device: | All the components do meet international safety standards. |
| Remark: | All the above information can be customized as per the clients’ demand. |
Dongguan Xinzhou Industrial Equipment Co., Ltd., founded in 2005, which is a research and development, production and marketing company with photothermal, vacuum drying ovens, non-standard automation equipment. our main products: industrial hot air ovens, Non-oxidation ovens, Non-dust ovens, Energy saving high-temperature ovens, Tunnel IR hot air dryers, Tunnel microwave drying machines, Air energy hot air drying machines, Vacuum freeze dryers, Vacuum microwave drying machines, Vacuum/nitrogen-filled oven, UV light solid machine, UV electric power supply, High-temperature aging test machine, High-temperature vacuum fusion welding furnace, Vacuum tunnel dryer and non-standard automation equipment, etc.
Hubei Xinhai Industrial Intelligent Equipment Co., Ltd is wholly-owned subsidiaries of Dongguan Xinzhou Industrial Equipment Co., Ltd, which is located in the economic tech development zone of Yicheng, Xiangyang, Hubei Province, with 9000CM2 production area. It has a complete production system from R&D design, incoming material inspection, parts processing, sheet metal, coating, assembly, testing and service follow-up. In 2018, we successfully established a research and development center in cooperation with xiangyang college of mechanical engineering.
In 2021, Hubei Xinhai passed the High & New Technology Enterprise certification and got the certificate of AAA Credit Enterprise in China.
