- Type:
-
Drying Oven
- Application:
-
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
- Condition:
-
New
- Place of Origin:
-
Hubei, China
- Voltage:
-
AC220V
- Power:
-
5KVA
- Dimension(L*W*H):
-
L1300mm*W510mm*H1486+50mm
- Key Selling Points:
-
Energy saving
- Warranty:
-
1 Year
- Weight (KG):
-
0
- Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Printing Shops, Energy & Mining, Advertising Company, Other
- Showroom Location:
-
None
- Marketing Type:
-
Hot Product 2019
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor, Other
- Material:
-
SUS304, Other
- Product name:
-
Industrial Ovens Air Force UV Light Conveyor Drying Machine
- Material::
-
SS41# steel sheet
- Cooling method::
-
Forced cooling ventilation system
- After-sales Service Provided:
-
Online Service
- After Warranty Service:
-
Online Service
- Keywords:
-
Conveyor Drying Machine For Electronic Components Coating Food
- Supply Ability
- 80 Set/Sets per Month
- Packaging Details
Inner package: soft film with foam
Outer package: standard export wooden Box
Strong package for loading, uploading and long-distance shipment
- Port
Shenzhen/Shanghai/Ningbo port
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 3 >3 Lead time (days) 30 To be negotiated

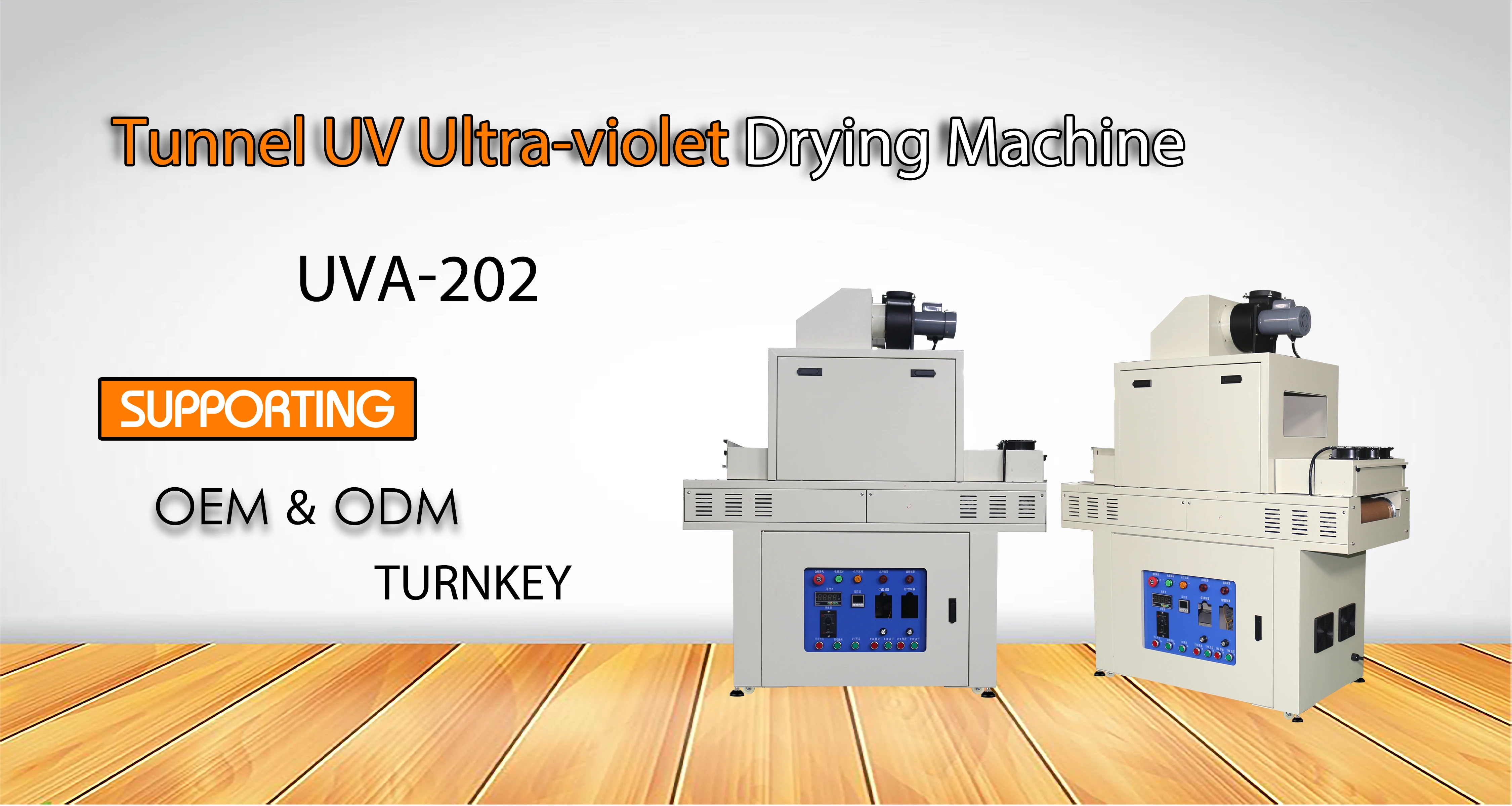

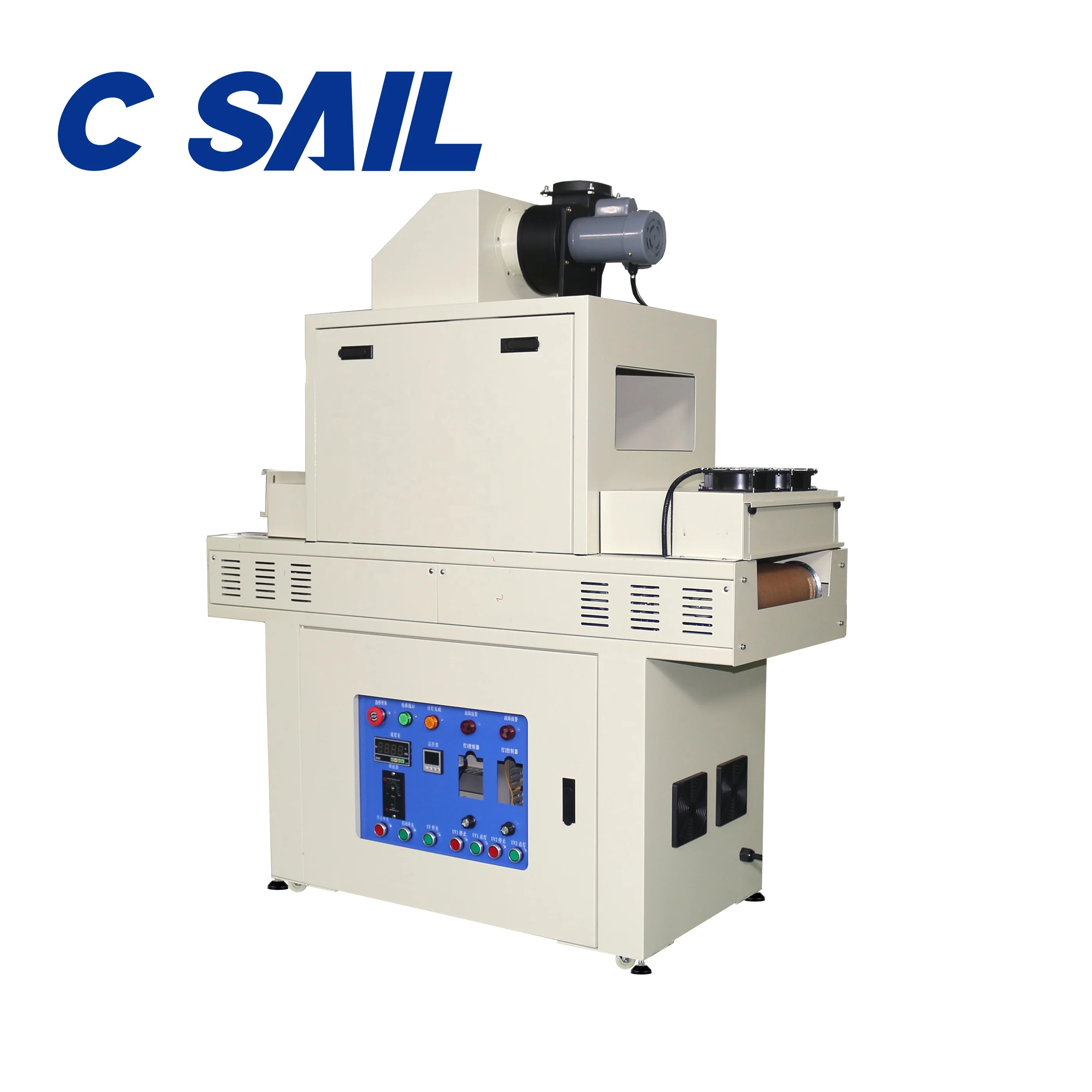

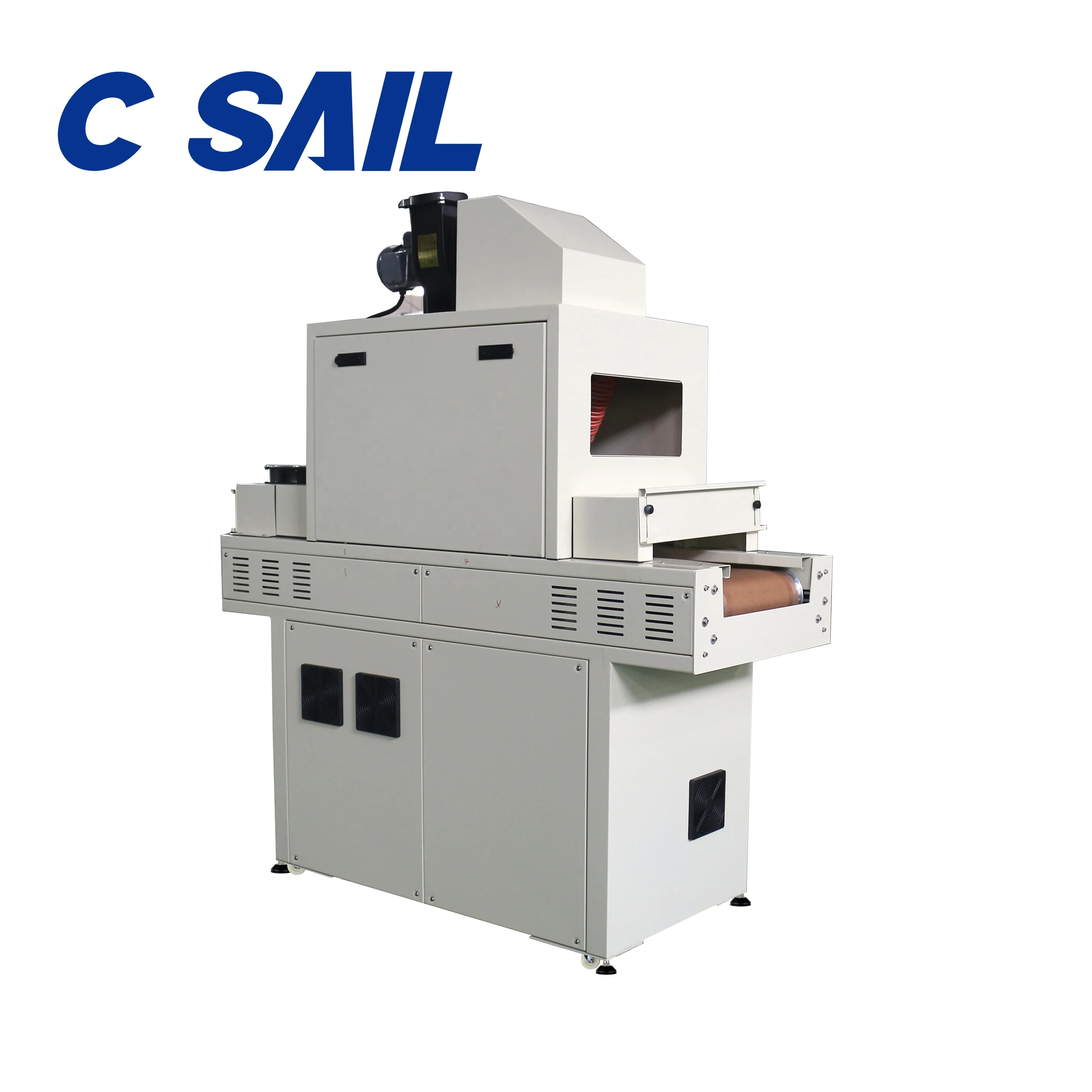

| Product Type: |
Industrial Ovens Air Force UV Light Conveyor Drying Machine For Electronic Components Coating Food |
| Model No.: |
UVA-202 |
| Power: |
AC220V 1φ 50HZ 5KVA |
| Size: |
1, The lamp irradiation height can be adjusted from 10 to 100mm 2, Feeding area length:300mm UV chamber Length:700mm Discharging area length:300mm 3,Total: L1300mm*W510mm*H1486+50mm 4,The height from Transport mesh to floor is 80~100mm, adjustable 5, the width of the transport mesh is 300mm, the effective irradiation length is 250mm 6, The height of the feeding area is 100mm 7, The discharge port is equipped with a silent fan 8, When the conveying speed is 6m/min, the time for the product to pass through the light source area is 7 seconds |
| Material: |
1, SS41# steel plate, baking after anti-rust treatment 2, Adopt the turbine reduction motor, and the Teflon conveyor belt |
| Cooling method: |
1, Forced cooling ventilation system 2, The noise of the whole machine is less than or equal to 50dp |
| UV lamp: |
2pcs of 2KW UV lamp, Sparkle length of 250mm,80W/CM |
| Reflex Housing: |
1, Aluminum alloy reflector with new imported titanium-plated reflector aluminum plate 2, Three-dimensional double cooling fan |
| Safety Device: | All the components do meet international safety standards. |
| Remark: | All the above information can be customized as per the client’s demands. |
Dongguan Xinzhou Industrial Equipment Co., Ltd., founded in 2005, which is a research and development, production and marketing company with photothermal,vacuum drying ovens ,non-standard automation equipment. our main products: industrial hot air ovens ,Non-oxidation ovens , Non-dust ovens,Energy saving high-temperature ovens ,Tunnel IR hot air dryers ,Tunnel microwave drying machines ,Air energy hot air drying machines ,Vacuum freeze dryers ,Vacuum microwave drying machines ,Vacuum/nitrogen-filled oven,UV light solid machine,UV electric power supply, High-temperature aging test machine, High-temperature vacuum fusion welding furnace,Vacuum tunnel dryer and non-standard automation equipment,etc.
Hubei Xinhai Industrial Intelligent Equipment Co., Ltd is wholly-owned subsidiaries of Dongguan Xinzhou Industrial Equipment Co., Ltd, which is located in the economic tech development zone of Yicheng, Xiangyang, Hubei Province, with 9000CM2 production area. It has a complete production system from R&D design, incoming material inspection, parts processing, sheet metal, coating, assembly, testing and service follow-up. In 2018, we successfully established a research and development center in cooperation with xiangyang college of mechanical engineering. In 2021, Hubei Xinhai passed the High & New Technology Enterprise certification and got the certificate of AAA Credit Enterprise in China.
We have successfully achieved ISO9001 quality management system certificates and more than 10 certificates of utility model patents.
In 2021, Hubei Xinhai passed the High & New Technology Enterprise certification and got the certificate of AAA Credit Enterprise in China.
Our company advantages as below:
