- Type:
-
Drying Oven
- Application:
-
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Wide application
- Condition:
-
New
- Place of Origin:
-
Hubei, China
- Voltage:
-
AC220V
- Power:
-
2KVA
- Dimension(L*W*H):
-
W700mm*D600mm*H600mm
- Key Selling Points:
-
Energy saving
- Warranty:
-
1 Year
- Weight (KG):
-
0
- Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Energy & Mining, Advertising Company, Other
- Showroom Location:
-
None
- Marketing Type:
-
Ordinary Product
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor, Other
- Material:
-
SUS304, Other
- Product name:
-
Industrial Single Door High Temperature Aging Test Machine
- Temp. Range::
-
RT~ 100℃
- Temp. Uniformity::
-
±1.5%
- Temp. control Accuracy::
-
±1℃
- After-sales Service Provided::
-
Online Support
- After warranty service::
-
Online Support
- Keywords:
-
High Temperature Aging Test Machine For Electronic Components
- Supply Ability
- 50 Set/Sets per Month
- Packaging Details
Inner package: soft film with foam
Outer package: standard export wooden Box
Strong package for loading, uploading and long-distance shipment
- Port
Shenzhen/Shanghai/Ningbo port
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 3 >3 Lead time (days) 30 To be negotiated
| Product Type: |
Industrial Single Door High Temperature Aging Test Machine For Electronic Components |
| Model No.: |
LSCO-3F |
| Power: |
AC220V 1φ 50HZ 2KVA |
| Inner Size: |
W700mm×D600mm×H600mm |
| Outer Size: |
W1100mm×D770mm×H1350mm(For Reference) |
| Inner Material: | SUS430# Mirror Finished Stainless steel plate |
| Outer Material: | SS41# cold-rolled steel plate, baking after anti-static treatment |
| Seal: | High temperature resistance silicon sealing strip |
| Temp. Range: | RT~ 100℃,Normally used 30℃,50℃,60℃,70℃ |
| Temp. Uniformity: |
±1.5%℃ |
| Temp. control Accuracy: | ±1℃ |
| Timing Range: | 9999Timer,digital display and setting |
| Air Supply: |
Force Hot Air Supply, single side Horizontal air supply system,special wind pathway design |

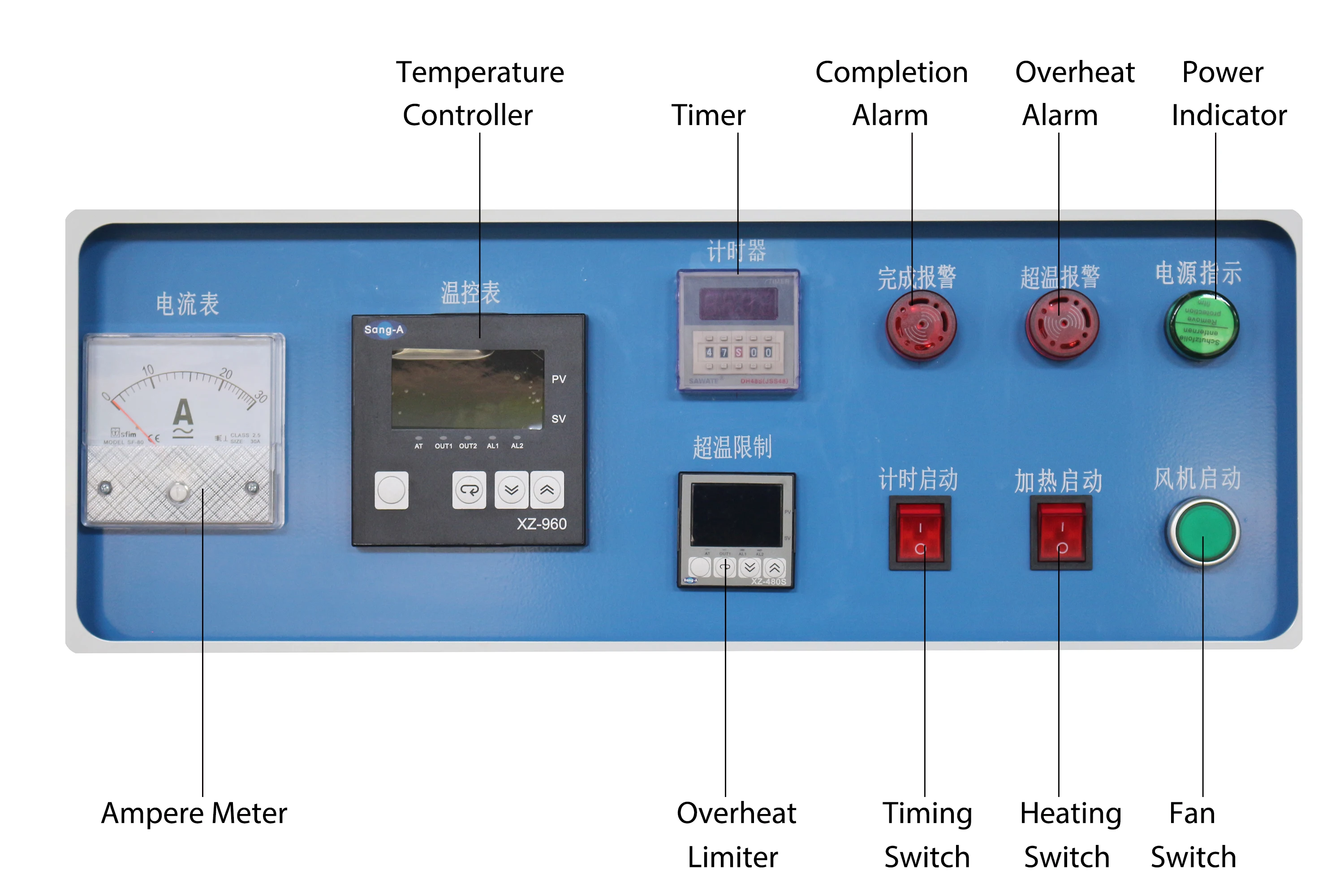

| Controller: |
“XZ-960” Controller,PID automatic calculation, SSR output,LED display, digital setting, “XZ-480” overheat Protection Device,Temperature sensor |
| Safety Device: | All the components do meet international safety standards. |
| Remark: | All the above information can be customized as per the clients’ demand. |
Dongguan Xinzhou Industrial Equipment Co., Ltd., founded in 2005, which is a research and development, production and marketing company with photothermal, vacuum drying ovens, non-standard automation equipment. our main products: industrial hot air ovens, Non-oxidation ovens, Non-dust ovens, Energy saving high-temperature ovens, Tunnel IR hot air dryers, Tunnel microwave drying machines, Air energy hot air drying machines, Vacuum freeze dryers, Vacuum microwave drying machines, Vacuum/nitrogen-filled oven, UV light solid machine, UV electric power supply, High-temperature aging test machine, High-temperature vacuum fusion welding furnace, Vacuum tunnel dryer and non-standard automation equipment, etc.
Hubei Xinhai Industrial Intelligent Equipment Co., Ltd is wholly-owned subsidiaries of Dongguan Xinzhou Industrial Equipment Co., Ltd, which is located in the economic tech development zone of Yicheng, Xiangyang, Hubei Province, with 9000CM2 production area. It has a complete production system from R&D design, incoming material inspection, parts processing, sheet metal, coating, assembly, testing and service follow-up. In 2018, we successfully established a research and development center in cooperation with xiangyang college of mechanical engineering.
In 2021, Hubei Xinhai passed the High & New Technology Enterprise certification and got the certificate of AAA Credit Enterprise in China.
Our company advantages as below:
