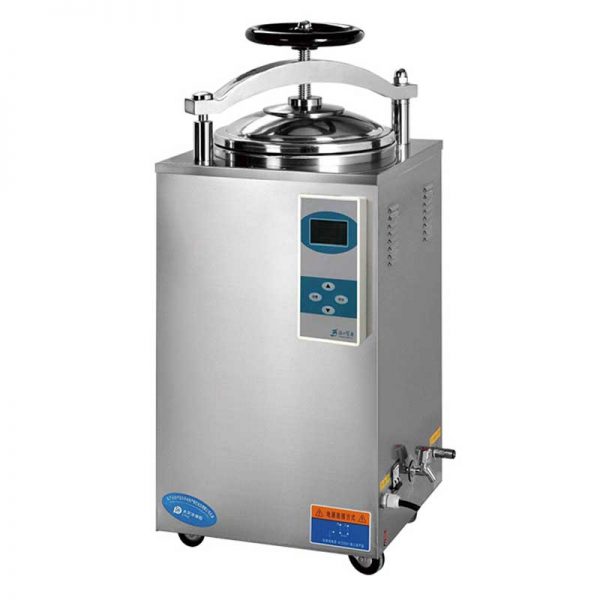

LCD Display Vertical Pressure Steam Sterilizer

LCD Display Vertical Pressure Steam Sterilizer

Description

The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effect.
The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effect.
The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Characteristics

Fully stainless steel structure.
Auto discharge the cool air, and steam discharge automatically after sterilization.
Automatically shut off with beep reminding after sterilization.
Hand wheel type of quick open door structure.
Over temperature & over pressure auto protection.
Easy to operate, safe and reliable.
Door safety lock system.
With two stainless steel sterilizing baskets.
LCD display of working status, touch type key.
Safe protection of water lacking.
With drying system.
Self inflating type seal.

Technical Data

MODEL
LS-35HD
LS-50HD
LS-75HD
LS-100HD

Chamber volume
35Lφ318×450mm
50Lφ340×550mm
75Lφ400×600mm
100Lφ440×650mm

Working pressure
0.22Mpa

Working temperature
134℃

Max. working pressure
0.23Mpa

Heat average
≤±1℃

Timer range
0-99min or 0-99hour59min

Temperature adjust range
105-134℃

Power
2.5KW/AC220V 50HZ
3KW/AC220V 50HZ
4.5KW/AC220V 50HZ

Overall dimension(mm）
450×450×1010
510×470×1130
560×560×1120
540×560×1250

Transport dimension（mm）
570×550×1150
590×590×1280
650×630×1280
680×630×1370

G.W/ N.W
72Kg/56Kg
88Kg/68Kg
100Kg/80Kg
110Kg/85Kg
