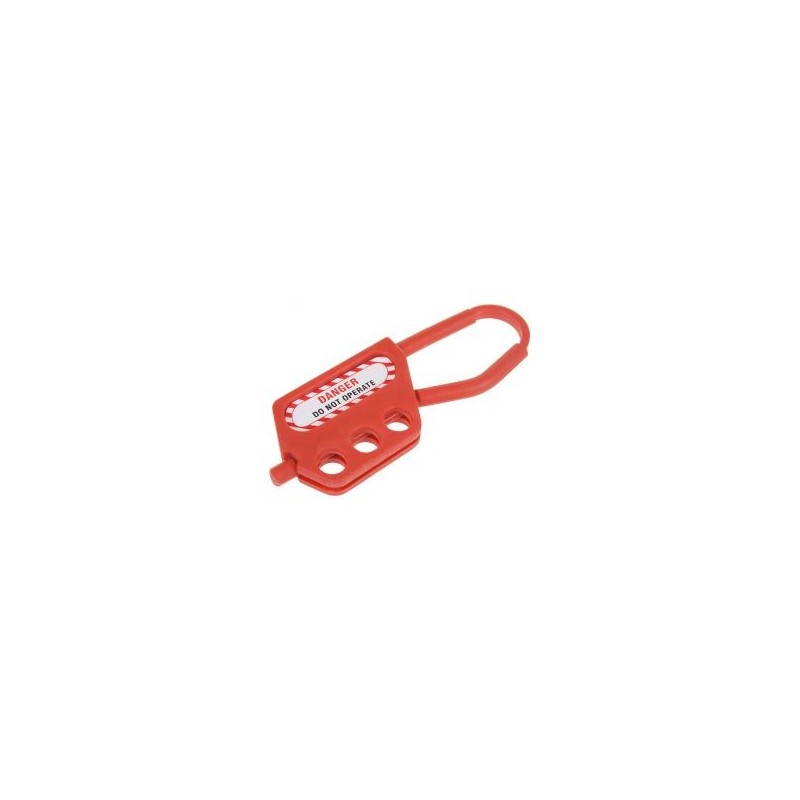

Part Code ES-E-HASP36 . In order to lockout electrical items, you need hasps such as this.
This LOTO hasp is created from flexible nylon, which is an entirely non-conductive material. Even though lockout procedures involve the shut-off energy (IE electricity) there may be some residue left over, which could be enough to shock someone through a hasp. As this device is non-conductive, this isn’t a problem and it can be comfortably used on electrical lockout applications.
The hasp is also flexible, and as such can be bent into shape around particularly difficult locations. Once attached, this hasp has room for up to three padlocks, allowing you to secure it firmly in place. The hasp is impossible to remove without tools or removing the padlocks after a lockout procedure.
This hasp accepts padlocks with a diameter of up to 9mm, is tough and durable, has 3mm shackle thickness and 45mm clearance.
HASP DIMENSIONS
The following table outlines the dimensions of this hasp. Use it in combination with the dimension reference image above to learn the size of each section of this product.

Parameter

 Measurements

 A – Overall Height

115mm

B – Shackle Length

58mm

C – Hasp Length

57mm

D – Hasp Width

40mm

E – Hole Width X Height

10mm x 10mm

F – Overall Width

35mm

G – Inner Lock

21mm

H – Top of Shackle

3mm

I- Hasp Thickness

10mm

J – Lock Width/Depth

6mm

K – Number of Holes

3
