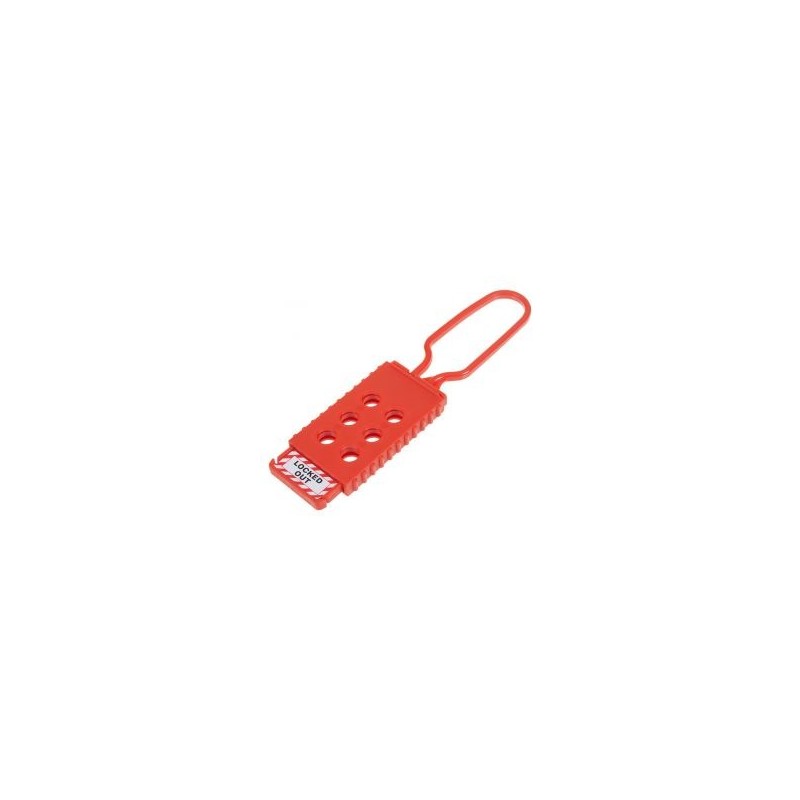

This flexible nylon lockout hasp is able to secure difficult applications, and is suitable for use on electrical items.
The hasp is available in red, yellow, green and blue colourings, and it is recommended that if you have separate teams completing lockouts in an area that each is represented by their own colour-coded hasp.
Thanks to this lockout device being made of nylon, it is entirely nonconductive, and is as such suitable for use on electrical isolation procedures.
This hasp has space for up to six individual padlocks, and is easy to apply even in difficult areas. It has 5mm shackle thickness, and 80mm clearance to fit around larger applications.
The hasp will accept padlocks with a diameter of up to 9mm and can comfortably withstand the weight of six heavy-duty lockout padlocks.
HASP DIMENSIONS
The following table outlines the dimensions of this hasp. Use it in combination with the dimension reference image above to learn the size of each section of this product.

Parameter

 Measurements

 A – Overall Height

155mm

B – Shackle Length

85mm

C – Hasp Length

70mm

D – Hasp Width

44mm

E – Hole Width X Height

10mm x 10mm

F – Overall Width

30mm

G – Inner Lock

19mm

H – Top of Shackle

4mm

I- Hasp Thickness

10mm

J – Lock Width/Depth

6mm

K – Number of Holes

6
