Phased array ultrasonic testing equipment
Overview
Essential details
- Warranty:
-
1 years
- Customized support:
-
OEM, ODM, OBM
- Place of Origin:
-
Hebei, China
- Brand Name:
-
BETTER UNITED
- Model Number:
-
U930
- Power:
-
Electronic
- Product name:
-
U200 Ultrasonic pulse velocity tester
- Host parameter Weight:
-
0.85kg
- Ultrasonic indication error:
-
±0.1us
- Certificate:
-
CE ISO
- Test standard:
-
ASTM BS GB
- Instrument ultrasonic frequency range:
-
5Hz~500KHz
- Measuring range:
-
0~10.00kN/0~5MPa
- Data transmission mode:
-
Wireless cloud transmission (optional)
- Stiffness of Spring Strike:
-
785.0±40.0(N/m)
- Impact length of ram:
-
75.0±0.3mm
Supply Ability
- Supply Ability
- 150 Set/Sets per Month
Packaging & delivery
- Packaging Details
Packed with poly film inner,outer packed with export standard wooden case
- Port
Tianjin port
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 100 >100 Lead time (days) 3 To be negotiated

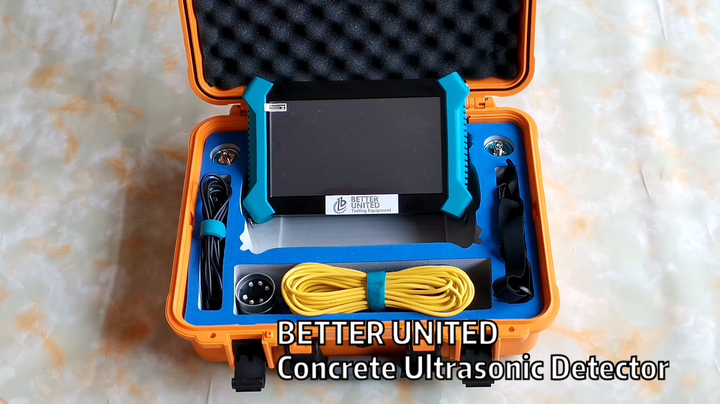

Ultrasonic Test Equipment
Compressive strength, crack depth, crack width and defect detection of structural concrete; Ultrasonic transmission method for detecting the integrity of piles and diaphragm walls. It integrates five functions: pile foundation detection, ultrasonic rebound comprehensive method, defect detection, crack sounding and width detection. Geological exploration, rock integrity and weathering evaluation test; Mechanical properties of non-metallic materials, such as rock mass and concrete.
Product Description
Product features:
1. Newly upgraded wireless cloud transmission function;
2. Five functions: pile measurement, strength measurement, defect measurement, sounding and width measurement;
3. With stable performance and powerful functions, it is the best choice for users with different needs.Such as engineering
inspection, teaching, scientific research, etc;
4. Translucent, high brightness, TFT color LCD;
5. Full touch screen operation, simple, convenient, stable and reliable;
6. Large storage capacity, working time more than 10 hours;
7. It can be connected with the probe of digital display rebound instrument to measure the ultrasonic rebound strength;
8. USB flash disk transmits data through USB flash disk and supports software upgrade;
9. The special analysis software has powerful functions and can easily complete data analysis and processing, report generation and report printing.
2. Five functions: pile measurement, strength measurement, defect measurement, sounding and width measurement;
3. With stable performance and powerful functions, it is the best choice for users with different needs.Such as engineering
inspection, teaching, scientific research, etc;
4. Translucent, high brightness, TFT color LCD;
5. Full touch screen operation, simple, convenient, stable and reliable;
6. Large storage capacity, working time more than 10 hours;
7. It can be connected with the probe of digital display rebound instrument to measure the ultrasonic rebound strength;
8. USB flash disk transmits data through USB flash disk and supports software upgrade;
9. The special analysis software has powerful functions and can easily complete data analysis and processing, report generation and report printing.
|

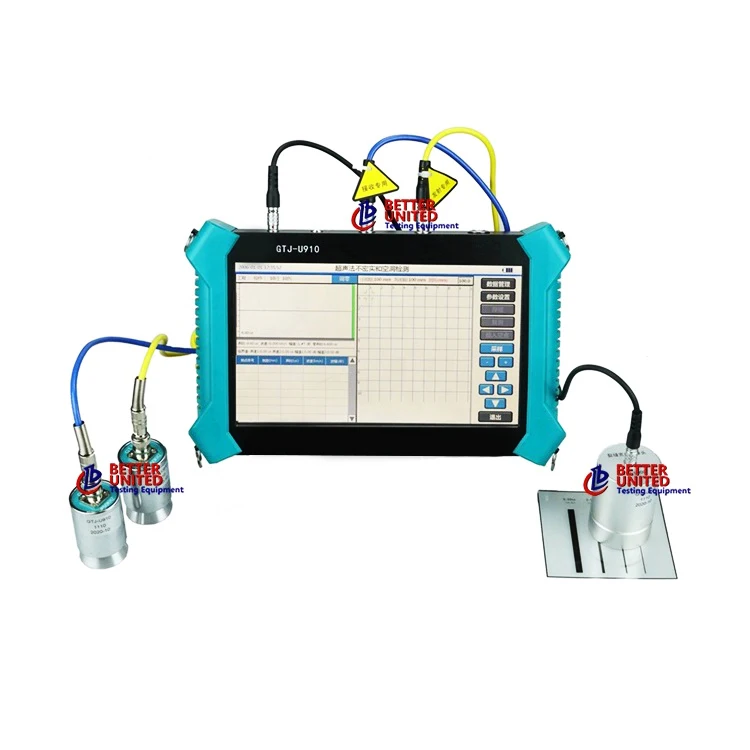

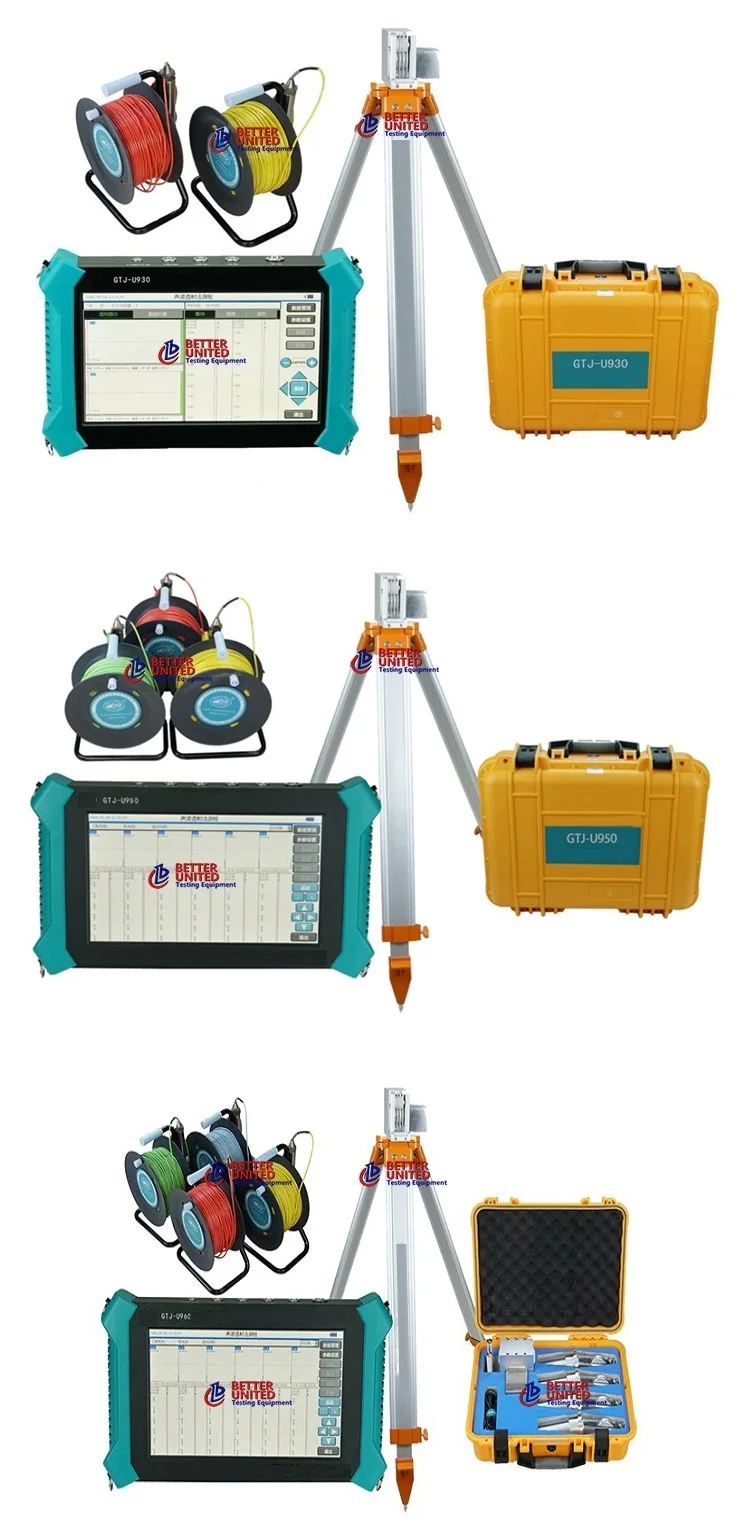

Product Model
|
U910
|
U920
|
U930
|
|
Master control unit
|
Built-in A8 industrial control motherboard
|
Built-in A8 industrial control motherboard
|
Built-in A8 industrial control motherboard
|
|
Display
|
10.1 inch, high brightness, TFT color LCD capacitive screen
|
10.1 inch, high brightness, TFT color LCD capacitive screen
|
10.1 inch, high brightness, TFT color LCD capacitive screen
|
|
Operational mode
|
Touch screen
|
Touch screen
|
Touch screen
|
|
Storge mode
|
Built-in Electrionic Hard Disk(＞8GB)+ Large Capacity U Disk
|
Built-in Electrionic Hard Disk(＞8GB)+ Large Capacity U Disk
|
Built-in Electrionic Hard Disk(＞8GB)+ Large Capacity U Disk
|
|
Data transmission mode
|
Wireless cloud transport(Options)
|
Wireless cloud transport(Options)
|
Wireless cloud transport(Options)
|
|
Acquistion mode
|
Single-channel manual point-by- point acquistion
|
Manual Point-by-point Collection of single and double channels
|
Single and Double channel automatic continous and fast aquistion
|
|
Number of disposable profiles
|
–
|
–
|
Two
|
|
Channel Number
|
1 transmit+1 receive
|
1 emission+2 reception
|
1 emission +2 reception
|
|
Trigger mode
|
Signal triggering
|
Signal triggering
|
Signal triggering
|
|
Sampling period(mμs)
|
0.05~409.6 Multtistage Options
|
0.05~409.6 Multtistage Options
|
0.05~409.6 Multtistage Options
|
|
Acoustic Time Accuracy(μs)
|
0.05
|
0.05
|
0.05
|
|
Acoustic time range(mμs)
|
+1677700
|
+1677700
|
+1677700
|
|
Width mesaurement fuction
|
Measuring range:0~10mm; Measurement accuracy: 0.01mm
|
Measuring range:0~10mm; Measurement accuracy: 0.01mm
|
Measuring range:0~10mm; Measurement accuracy: 0.01mm
|
|
Dynamic range(dB)
|
One hundred and forty-six
|
One hundred and forty-six
|
One hundred and forty-six
|
|
Bandwidth(kHz)
|
1~500
|
1~500
|
1~500
|
|
Receiving Sensitivity(UV)
|
Less than 10
|
Less than 10
|
Less than 10
|
|
Gain Accuracy(dB)
|
0.5
|
0.5
|
0.5
|
|
Emission Voltage(V)
|
65, 250, 500 and 1000 gear adjustable
|
65, 250, 500 and 1000 gear adjustable
|
65, 250, 500 and 1000 gear adjustable
|
|
Communication interface
|
USB, Bluetooth, Wifi
|
USB, Bluetooth, Wifi
|
USB, Bluetooth, Wifi
|
|
Working hours
|
more than 8
|
more than 8
|
more than 8
|
|
Powder supply mode
|
Built-in lithium battery External 220V~16V AC/DC
|
Built-in lithium battery External 220V~16V AC/DC
|
Built-in lithium battery External 220V~16V AC/DC
|
|
Working environment
|
-10~40℃ Humidty (RH) ＜90%
|
-10~40℃ Humidty (RH) ＜90%
|
-10~40℃ Humidty (RH) ＜90%
|
|
Host size(mm)
|
300x200x55
|
300x200x55
|
300x200x55
|

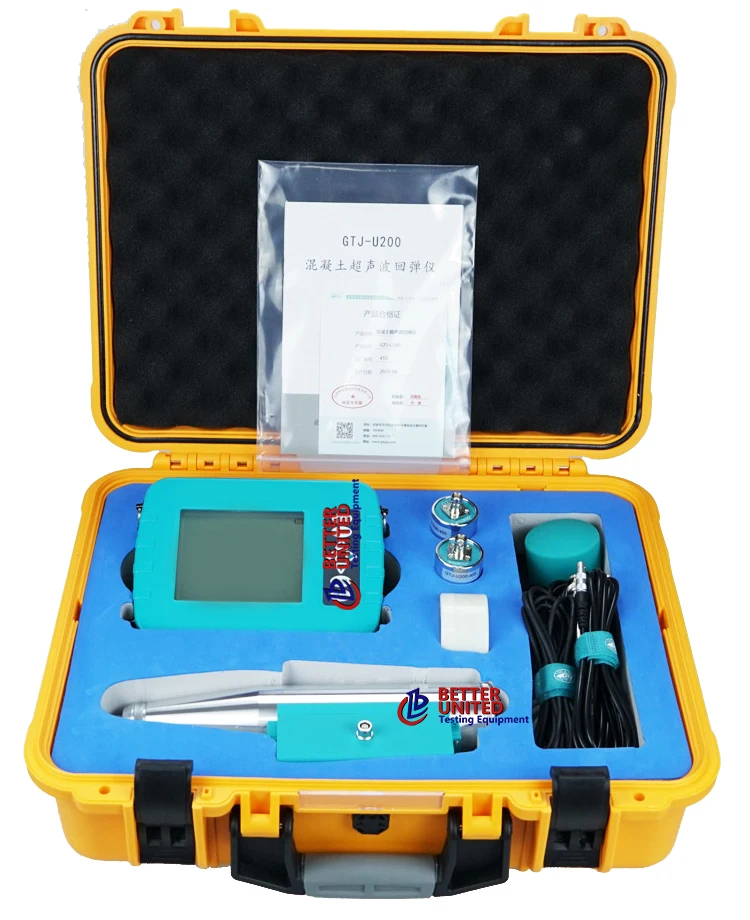

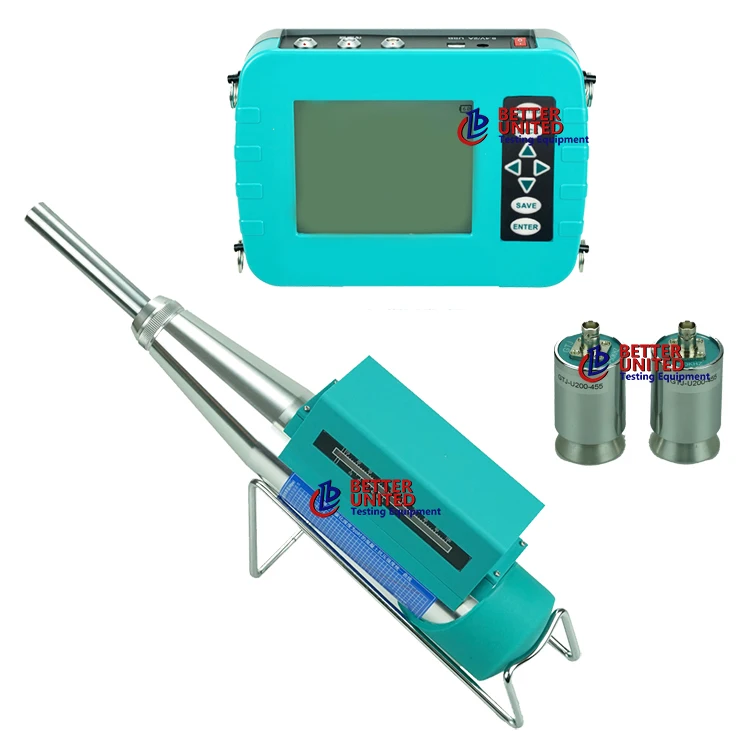

U200 Ultrasonic pulse velocity tester
Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can
be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as wellas the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as wellas the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
Features
1.New upgraded wireless cloud transmission function;
2.It adopts three anti- shell design waterproof, dustproof and shockproof;
3.Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic reboundmethod.It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
3.Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic reboundmethod.It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
4.High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;
5.Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing;
6.Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.

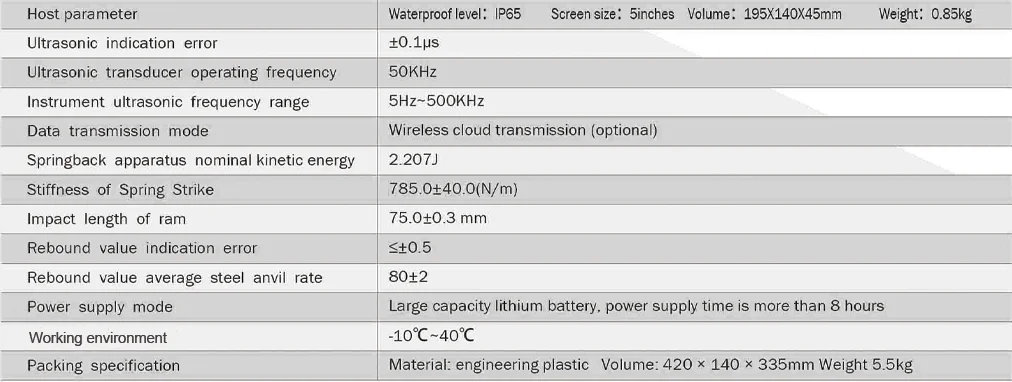

Specification

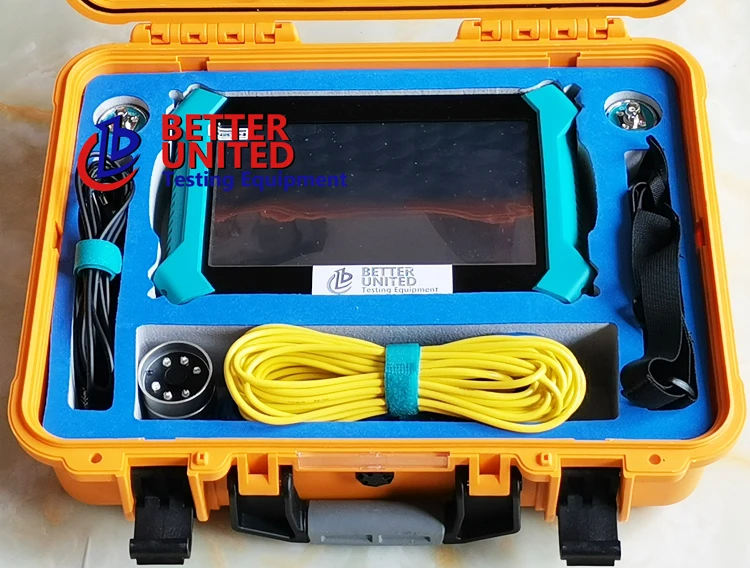

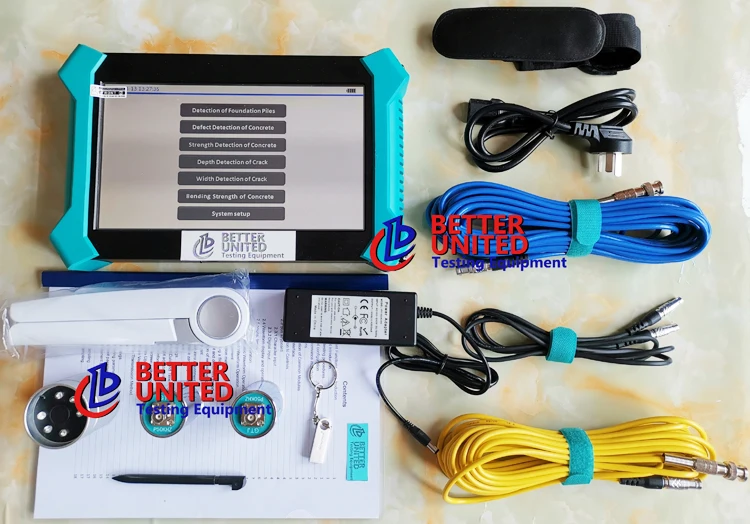

Packing & Delivery
