- Type:
-
Drying Oven
- Application:
-
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Wide application
- Condition:
-
New
- Place of Origin:
-
Hubei, China
- Voltage:
-
AC380V
- Power:
-
10KVA
- Dimension(L*W*H):
-
W950mm*D700mm*H1000mm
- Key Selling Points:
-
Easy to Operate
- Warranty:
-
1 Year
- Weight (KG):
-
0
- Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Printing Shops, Energy & Mining, Advertising Company, Other
- Showroom Location:
-
None
- Marketing Type:
-
New Product 2020
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor, Other
- Material:
-
SUS304, Other
- Product name:
-
Precision Forced Hot Air Circulating Drying Oven
- Temp. Range::
-
RT~150℃
- Temp. Uniformity::
-
±3℃
- Temp. control accuracy::
-
±1℃
- After-sales Service Provided:
-
Online Support
- After warranty service::
-
Online Support
- Keywords:
-
Precision Forced Hot Air Circulating Drying Oven
- Supply Ability
- 80 Set/Sets per Month
- Packaging Details
Inner package: soft film with foam
Outer package: standard export wooden Box
Strong package for loading, uploading and long-distance shipment
- Port
Shenzhen/Shanghai/Ningbo port
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 3 >3 Lead time (days) 30 To be negotiated
| Product Type: |

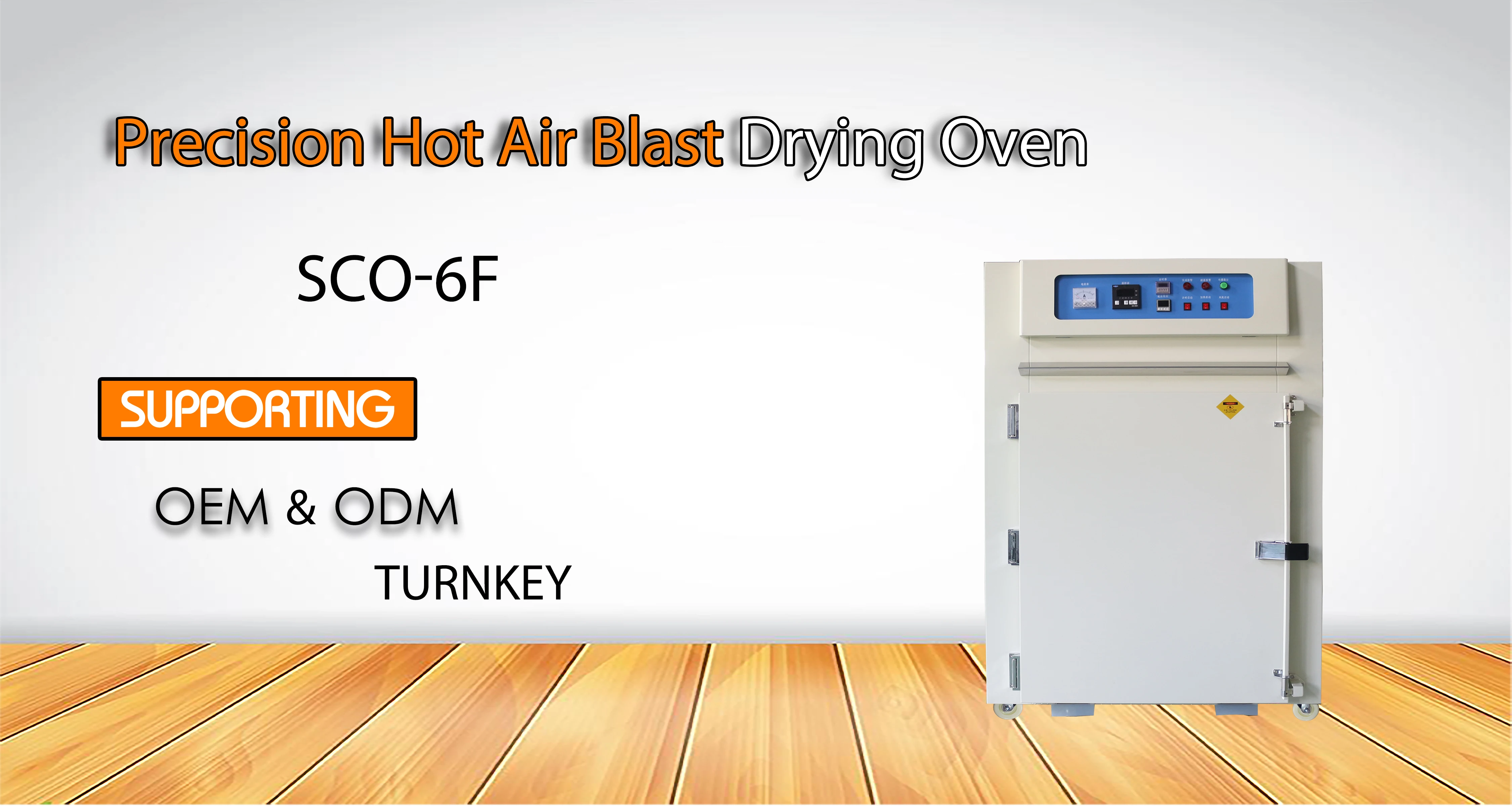

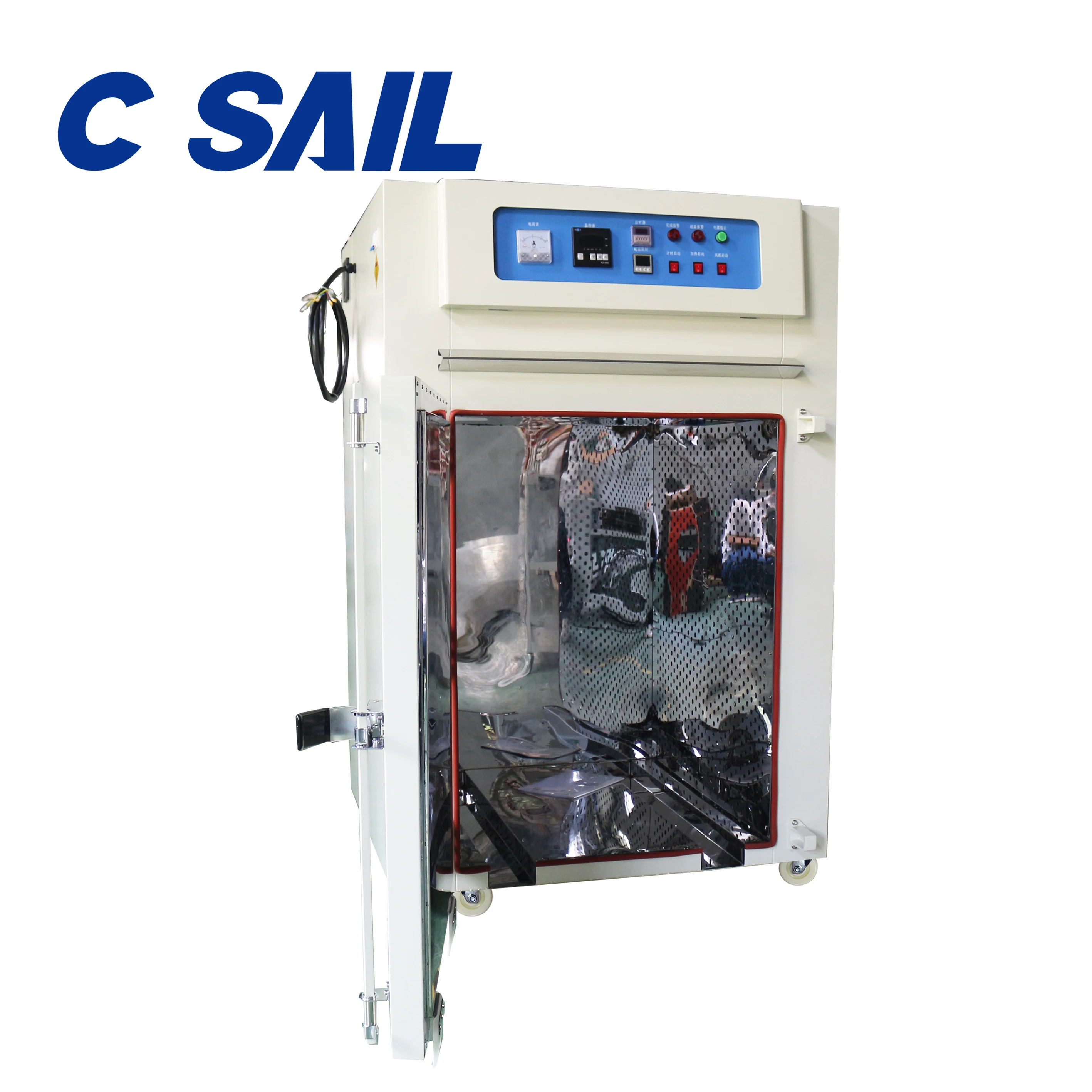

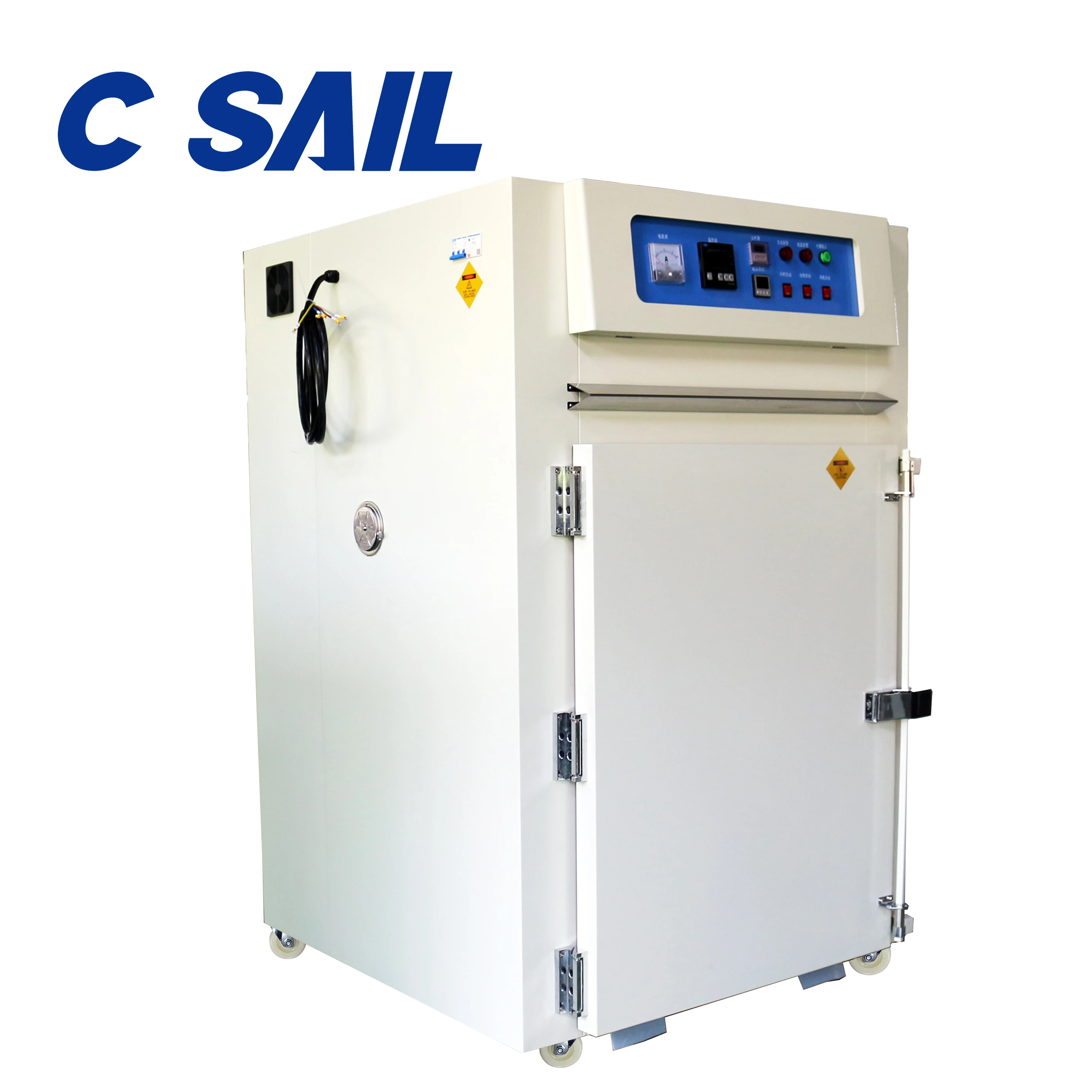

Precision Forced Hot Air Circulating Drying Oven For Ceramic Electronics Glassware Instrument |
| Model No.: |
SCO-6F |
| Power: |
AC380V 3φ 50HZ 10KVA |
| Inner Size: |
W950mm×D700mm×H1000mm |
| Outer Size: |
W1290mm×D890mm×H1780mm(Reference) |
| Inner Material: | SUS430# mirror finished Stainless steel sheet with concave iron reinforcement |
| Outer Material: | SS41# cold-rolled steel plate, baking after anti-static treatment |
| Insulation material: | highly insulation cotton |
| Seal: | High temperature resistance silicon sealing strip |
| Temp. Range: |
RT~150℃,normally used 135℃ |
| Heating Rising time: |
About 20min from RT to 135℃ |
| Temp. Uniformity: |
±3℃ at 135℃ |
| Temp. control accuracy: |
±1℃ |
| Timing Range: |
9999Timer |
| Air Supply: |
Force Hot Air Supply, special wind pathway design, uniform heating temperature, Long-axis motor, strong type fan |
| Controller: |
“XZ-960” controller, SSR output, LED display, Digital Setting, PID automatic Calculation, temperature sensor, “XZ-480” overheat protection device |
| Safety Device: | All the components do meet international safety standards. |
| Remark: | All the above information can be customized as per the client’s demands. |
Dongguan Xinzhou Industrial Equipment Co., Ltd., founded in 2005, which is a research and development, production and marketing company with photothermal,vacuum drying ovens ,non-standard automation equipment. our main products: industrial hot air ovens ,Non-oxidation ovens , Non-dust ovens,Energy saving high-temperature ovens ,Tunnel IR hot air dryers ,Tunnel microwave drying machines ,Air energy hot air drying machines ,Vacuum freeze dryers ,Vacuum microwave drying machines ,Vacuum/nitrogen-filled oven,UV light solid machine,UV electric power supply, High-temperature aging test machine, High-temperature vacuum fusion welding furnace,Vacuum tunnel dryer and non-standard automation equipment,etc.
Hubei Xinhai Industrial Intelligent Equipment Co., Ltd is wholly-owned subsidiaries of Dongguan Xinzhou Industrial Equipment Co., Ltd, which is located in the economic tech development zone of Yicheng, Xiangyang, Hubei Province, with 9000CM2 production area. It has a complete production system from R&D design, incoming material inspection, parts processing, sheet metal, coating, assembly, testing and service follow-up. In 2018, we successfully established a research and development center in cooperation with xiangyang college of mechanical engineering. In 2021, Hubei Xinhai passed the High & New Technology Enterprise certification and got the certificate of AAA Credit Enterprise in China.
In 2021, Hubei Xinhai passed the High & New Technology Enterprise certification and got the certificate of AAA Credit Enterprise in China.
Our company advantages as below:
