PVC Washer

Description

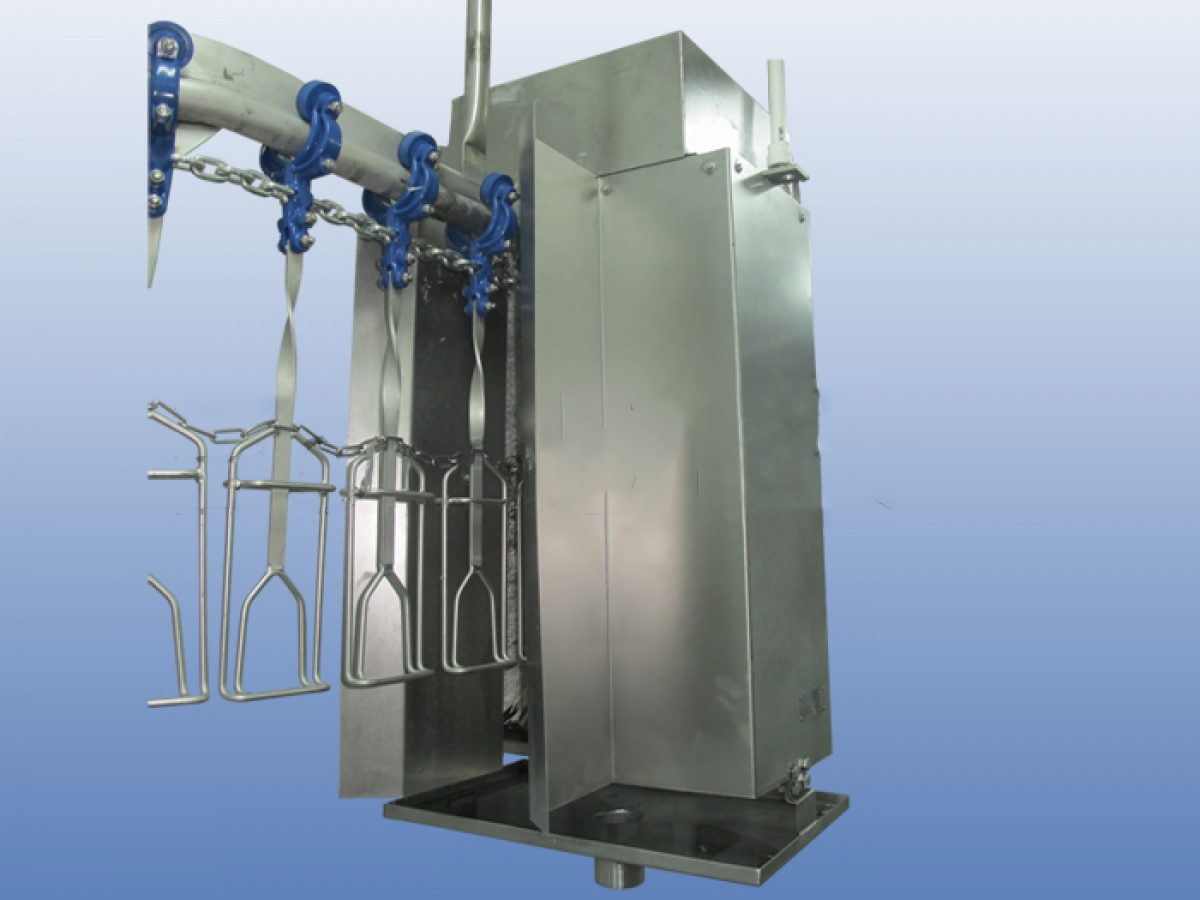

Chain and Shackle Washer

The Chain and shackle washer is an essential piece of equipment in the poultry processing line. It is specially designed to wash shackles & chains on-line as well as comply with drastically heightened hygiene requirements. The washer is made of stainless steel and synthetics. It is usually mounted on the conveyor system.

The washer allows for shackles, trolleys, and chains to be completely cleaned simultaneously, with no difficulty. Each of the two long nylon brushes on the washer is driven by a separate motor and can be adjusted individually. The brushes are covered externally with a stainless-steel case to effectively prevent water splashing.

Cleaning water is supplied separately to each brush and this increases cleaning efficiency. If required, a disinfection metering device can also be connected to the water inlet.

Features and Benefits of the Washer

• The chain and shackle washer is used for on-line shackle line cleaning
• The washer assembly includes a manual hydraulic adjuster
• The brushes are covered with stainless steel to prevent splashing
• Thorough and continuous cleaning by two rotating brushes
• The washer assembly includes water spray nozzles
• The shackle washer is made of stainless steel and other non-corrosive materials
• The shackle washer is installed at the end of a production line to clean the chain, trolleys, and shackles before the new production cycle starts.
• It can be mounted on the overhead conveyor
• Continuous and effective cleaning
• Cleans shackle assembly up to and including chain & trolley
• Can be used in most common conveyor lines, shackle types, and – pitches
• Adjustable in angle.
• Pneumatic opening and closing.
• Optional control box and waste collection tray can also be used alongside.
