- Warranty:
-
Subject to contract
- Customized support:
-
ODM
- Place of Origin:
-
American
- Brand Name:
-
tektronix / Keithley
- Current source/range:
-
5A
- Voltage source/range:
-
10V
- power supply:
-
50 W
- measurement resolution:
-
700nA / 0.33mV / not have
- channels:
-
1
- Weight:
-
1.23kg (2.70 lbs)
- controller:
-
50W TEC
- Size:
-
95*178*216
- Rack Mount::
-
1.7 in. high* 19 in
- compatible:
-
Multiple temperature sensors
- Supply Ability
- Set/Sets per Day Contact Us
- Packaging Details
Moisture proof packaging, waterproof packaging, rust proof packaging, mold proof packaging, dust proof packaging
- Port
Shanghai
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 1 >1 Lead time (days) 1 To be negotiated

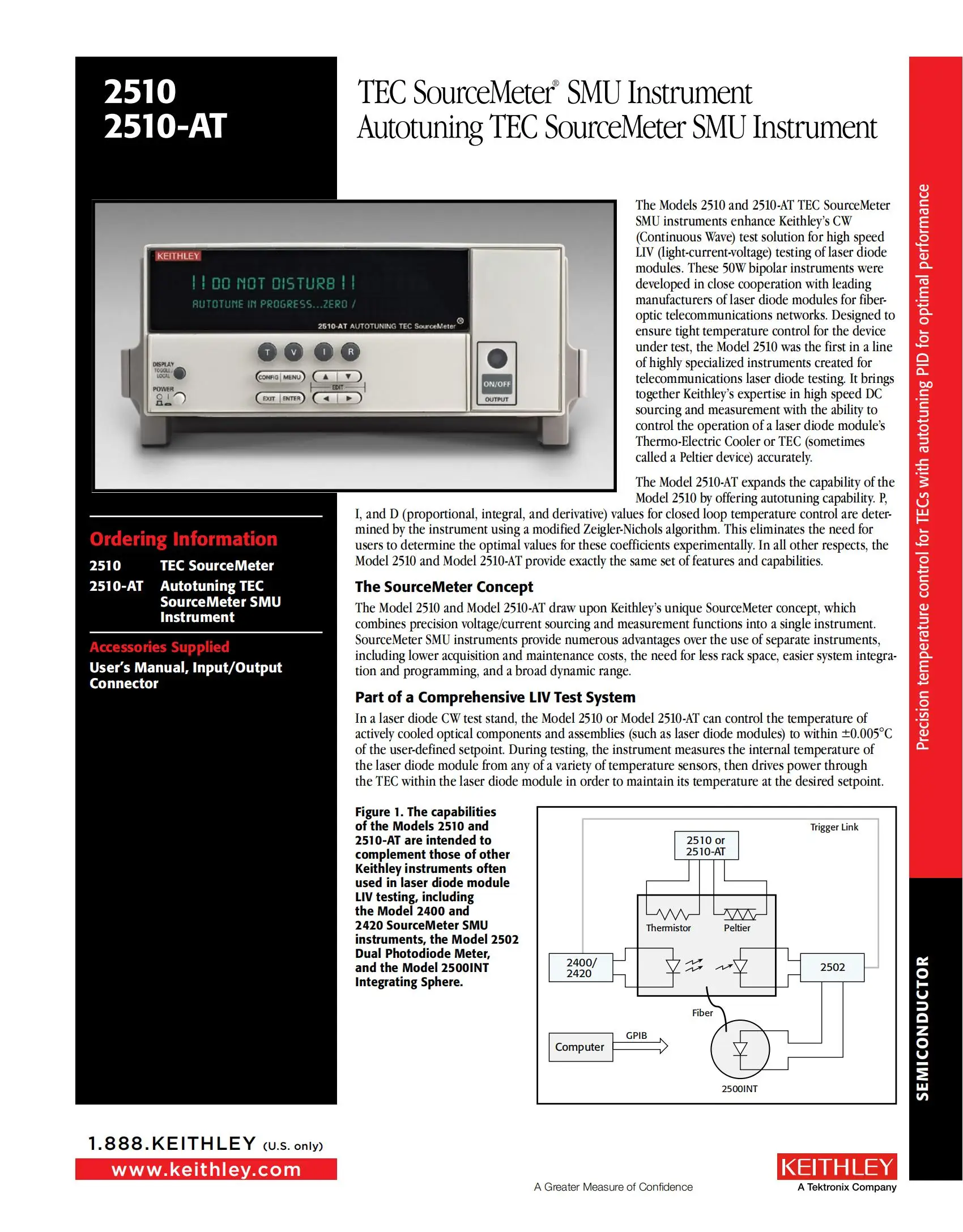

TEC SourceMeter® SMU Instrument Autotuning TEC SourceMeter SMU Instrument
The Models 2510 and 2510-AT TEC SourceMeter SMU instruments enhance Keithley’s CW (Continuous Wave) test solution for high speed
LIV (light-current-voltage) testing of laser diode modules. These 50W bipolar instruments were developed in close cooperation with
leading manufacturers of laser diode modules for fiberoptic telecommunications networks. Designed to ensure tight temperature
control for the device under test, the Model 2510 was the first in a line of highly specialized instruments created for
telecommunications laser diode testing. It brings together Keithley’s expertise in high speed DC sourcing and measurement with the
ability to control the operation of a laser diode module’s Thermo-Electric Cooler or TEC (sometimes called a Peltier device)
accurately. The Model 2510-AT expands the capability of the Model 2510 by offering autotuning capability. P, I, and D
(proportional, integral, and derivative) values for closed loop temperature control are determined by the instrument using a
modified Zeigler-Nichols algorithm. This eliminates the need for users to determine the optimal values for these coefficients
experimentally. In all other respects, the Model 2510 and Model 2510-AT provide exactly the same set of features and capabilities
|

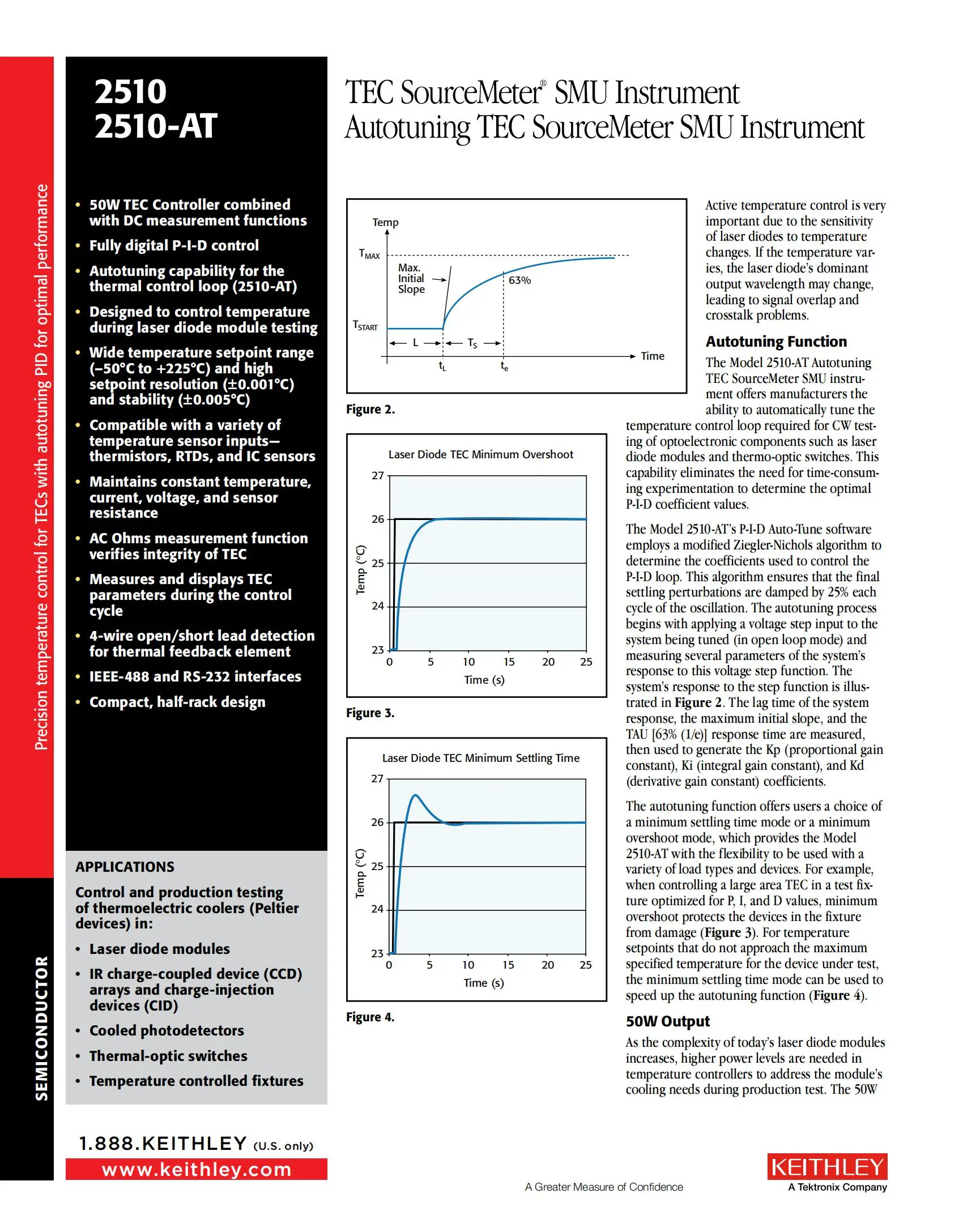

50W TEC Controller combined with DC measurement functions
|
Fully digital P-I-D control
|
• Autotuning capability for the thermal control loop (2510-AT)
|
Designed to control temperature during laser diode module testing
|
|
• Wide temperature setpoint range (–50°C to +225°C) and high setpoint resolution (±0.001°C) and stability (±0.005°C)
|
• Compatible with a variety of temperature sensor inputs— thermistors, RTDs, and IC sensors
|
• Maintains constant temperature, current, voltage, and sensor resistance
|
• AC Ohms measurement function verifies integrity of TEC
|
|
• Measures and displays TEC parameters during the control cycle
|
4-wire open/short lead detection for thermal feedback element
|
• IEEE-488 and RS-232 interfaces
|
Compact, half-rack design
|
|
Product name
|
Keithley SourceMeter optical instrument
|
|
Product brand
|
Tektronix / Keithley
|
|
series
|
TEC SourceMeter® SMU Instrument Autotuning TEC SourceMeter SMU Instrument
|
|
model
|
2510 2510-AT
|
