TMeasurement R61 China supplier Corrosion Analyzing Instrument concrete rebar corrosion test detector

Description

Description

Overview

Essential details

Warranty:: 18 months, 18 Months

Type:: –

Customized support:: OEM

Place of Origin:: Liaoning, China

Brand Name:: OEM

Model Number:: R61

Measurement range:: ±2000mV

Accuracy:: ±1mV

Colour:: yellow and black

Measuring point spacing:: 1~99cm

Relative humidity:: <90%RH

Supply Ability

Supply Ability: 500 Set/Sets per Month

Packaging & delivery

Packaging Details

Port

Lead time:

Quantity(sets)	1 – 1	>1
Lead time (days)	4	To be negotiated

Product Description

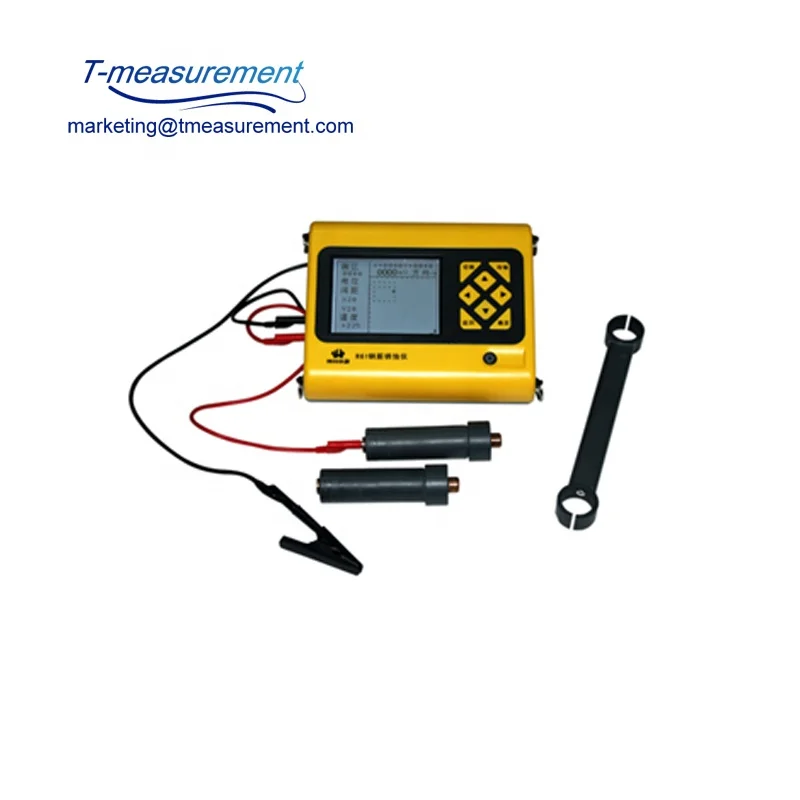

R61 Rebar Corrosion Tester

The R61 Rebar Corrosion Meter (also known as the Metal Corrosion Meter) uses an electrochemical measurement method to measure the corrosion degree of reinforcement in concrete. Potentiometric method and gradient method are used for testing, permanent reference electrode, and can automatically detect the ambient temperature.

*Data transfer to usb-thumb drive is available, very convenient for field work;

*The device generates rebar distribution maps and rebars corrosion potential contour graphs;

*Powerful professional analysis-process software facilitates the generation of test reports automatically.

Feature

1. Two test methods. Potential method and gradient method are tested in two ways, which are suitable for different test sites.
2. Permanent reference electrode. The saturated copper sulfate solution is sealed in the reference electrode, there is no need to replace the solution before and after the test, the operation process is simple, clean, and pollution-free.
3. Automatically detect the ambient temperature. The instrument contains an automatic temperature measurement module, which can automatically test, record, and display the ambient temperature on site without the need for an additional thermometer, which is convenient and quick. This function is unique to our company.
4. The instrument can set the test date. Data saving test date, convenient for user data management.
5. Visually display the test results. The icon is used. The darker the icon, the higher the probability of rust. During the test, the user can intuitively see the area with more severe rust.
6. Real USB data transmission. The test data is quickly transferred to the computer for further analysis.
7. Powerful professional windows data analysis and processing software. The test results are expressed in the form of graphic images (spectrograms, contours, etc.), and Word test reports can be generated directly or the data can be imported into Excel, which is convenient and quick.

Model	R61 Rebar Corrosion Tester
Measurement range	±2000mV
Accuracy:	±1mV
Measuring point spacing	1～99cm can be set
Ambient temperature	-10℃～＋40℃, avoid direct exposure to sunlight for a long time
Relative humidity	＜90%RH
Electromagnetic interference	no strong alternating electromagnetic field

ZBL-R630A Rebar scanner

ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientationand distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magneticand conductor such as cables and metal pipes in non-magnetic medium and non-conducting medium

ZBL-R800 Multifuncational Rebar detector

ZBL-R800 is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layers, measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.

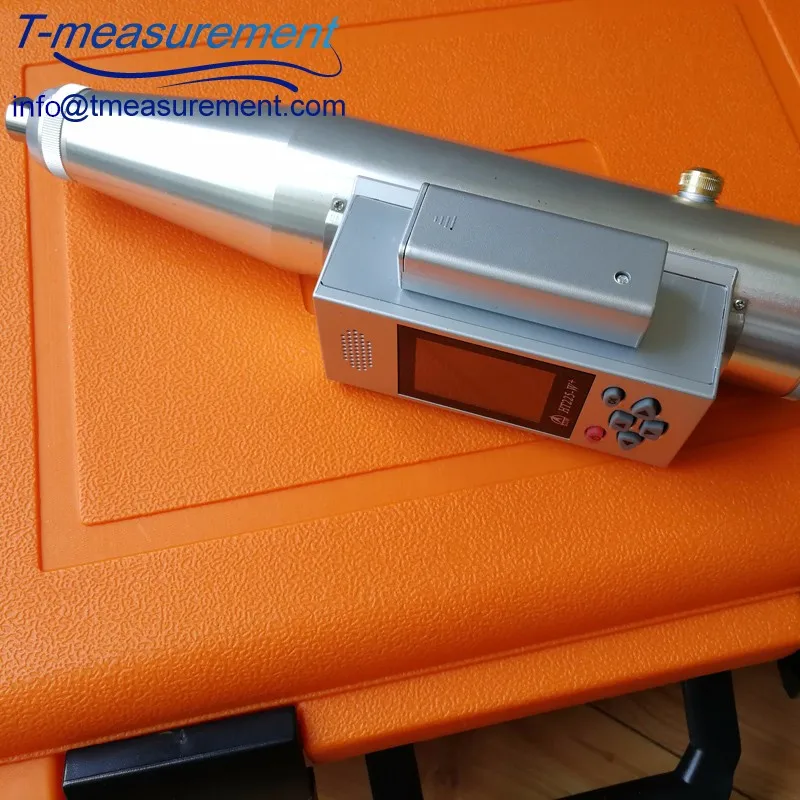

HT-225W+ integrity voice report digital concrete rebound hammer

HT-225W+ digital test hammer with digital display and voice function, for the quick and easy determinationof the strength of concrete, and hardness of construction materials. Digital and voice functions allow fasterand greater number of test, leading to better quality tests.
