Overview
Essential details
- Capacity (pcs/h):
-
1800 pcs/h
- Applicable Material:
-
capsule,pill,tablet
- Capacity (bottle/min):
-
1 – 999 bottle/min
- Video outgoing-inspection:
-
Provided
- Machinery Test Report:
-
Provided
- Marketing Type:
-
New Product 2020
- Warranty of core components:
-
2 years
- Core Components:
-
PLC, Motor
- Bottle Capacity (pcs/bottle):
-
1 – 999 pcs/bottle
- Condition:
-
New
- Place of Origin:
-
Jiangsu, China
- Brand Name:
-
XT
- Usage:
-
Capsule
- Voltage:
-
110v 220v single phase, Single phase
- Dimension(L*W*H):
-
760*660*700MM
- Weight (KG):
-
85
- Warranty:
-
2 years
- Key Selling Points:
-
Easy to Operate
- Power (kW):
-
100w
- Applicable Industries:
-
Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops
- Showroom Location:
-
Viet Nam, Pakistan, Thailand, South Korea, Malaysia
- Material:
-
SS304 SS316
- After-sales Service Provided(1):
-
Free spare parts/Video technical support/Online support
- After-sales Service Provided(2):
-
Field installation, commissioning and training
- After-sales Service Provided(3):
-
Field maintenance and repair service
- After Warranty Service(1):
-
Video technical support/Spare parts/Online support
- After Warranty Service(2):
-
Field maintenance and repair service
- Local Service Location:
-
Viet Nam/Pakistan/Thailand/Malaysia/South Korea
Supply Ability
- Supply Ability
- 50 Set/Sets per Month
Packaging & delivery
- Packaging Details

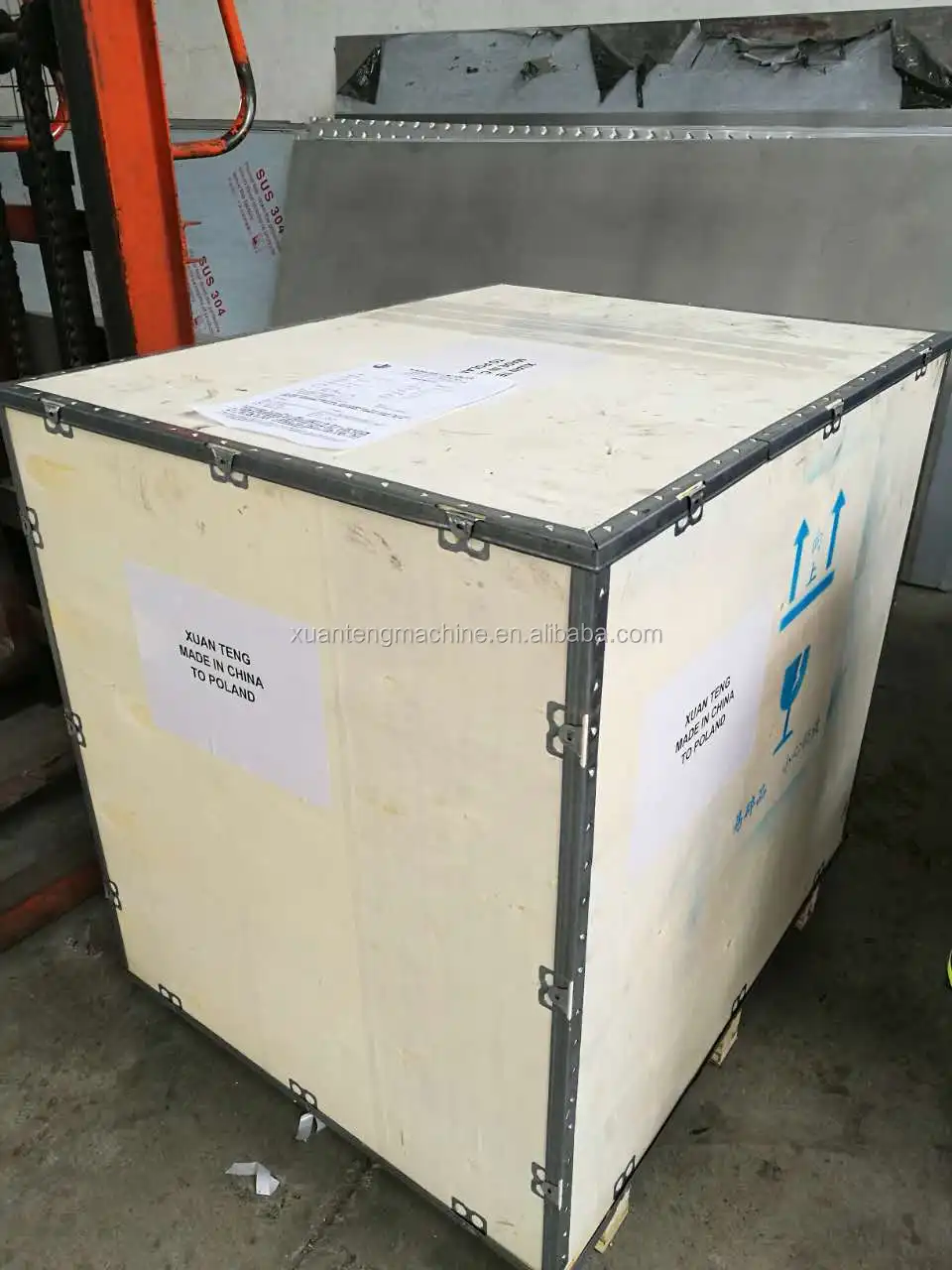

wooden packing
- Port
Shanghai port
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 1 >1 Lead time (days) 15 To be negotiated

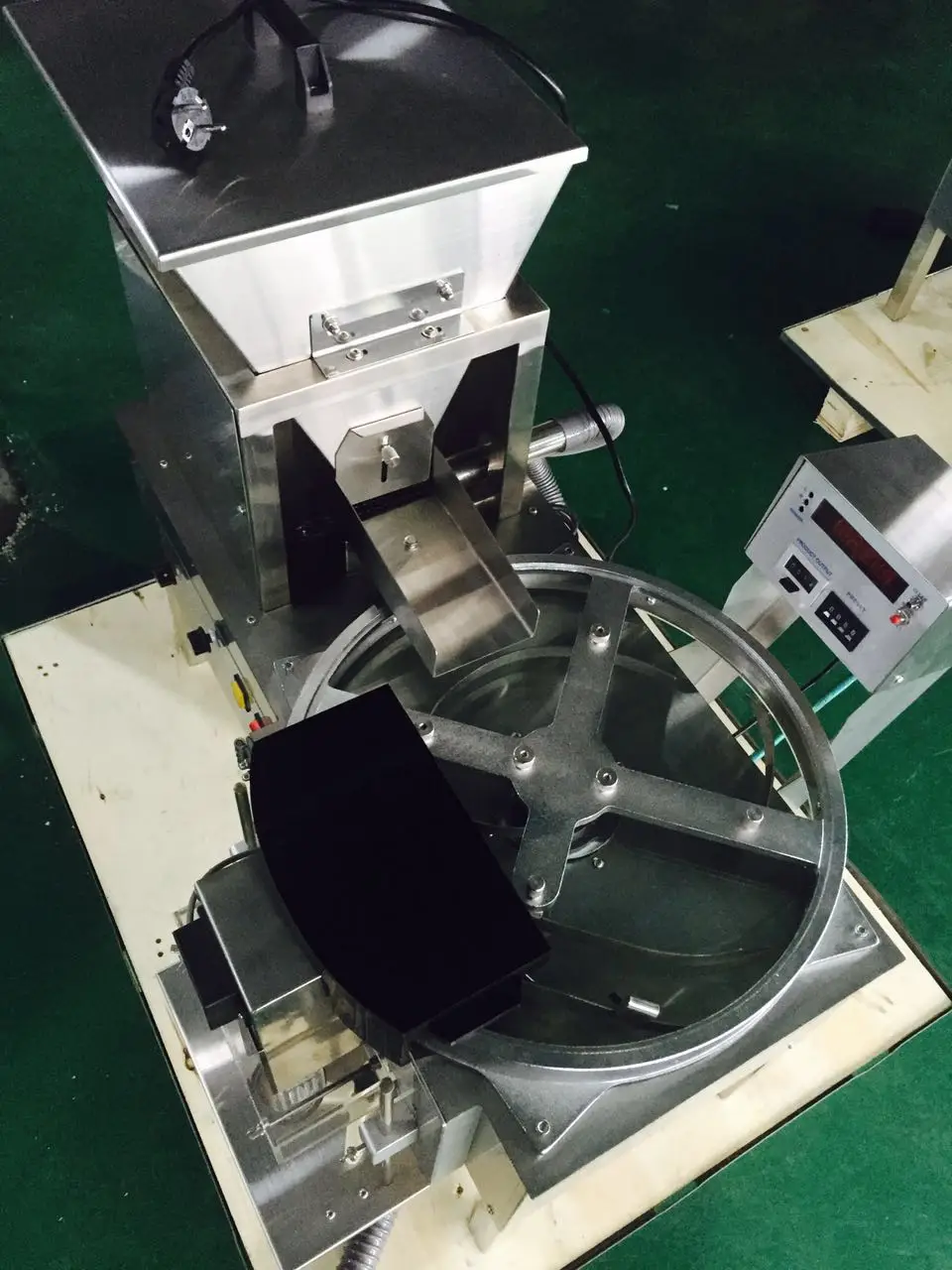

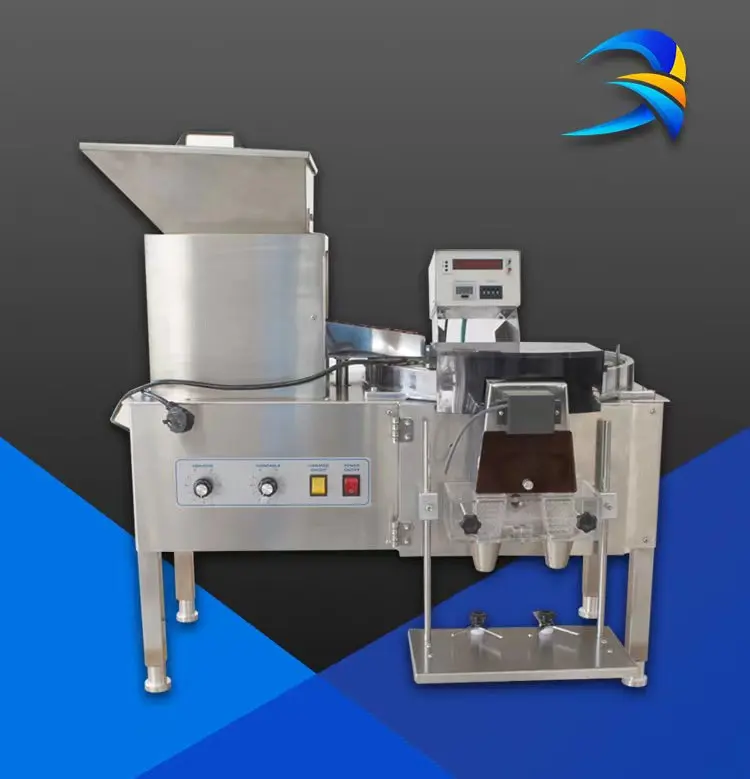

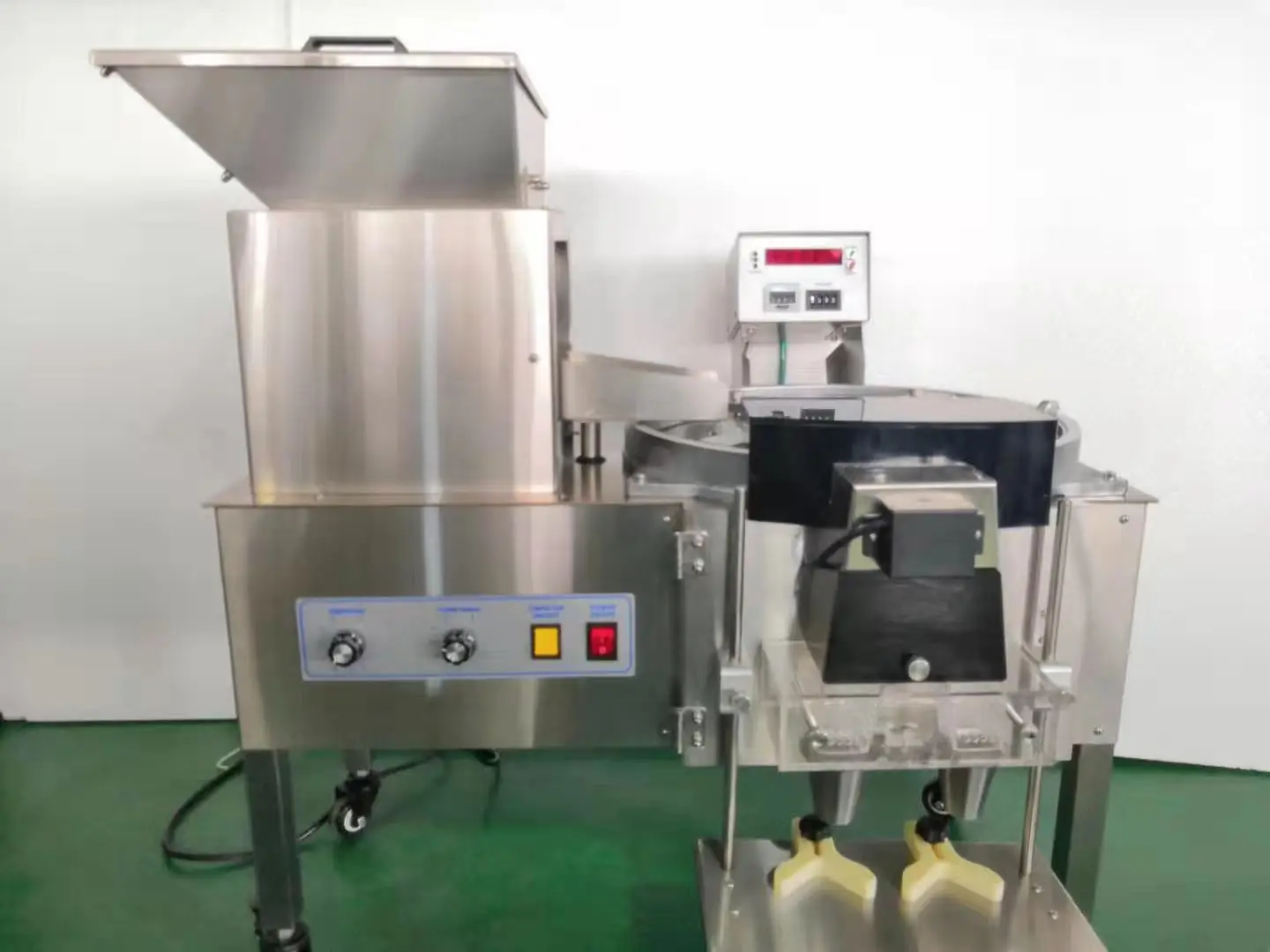

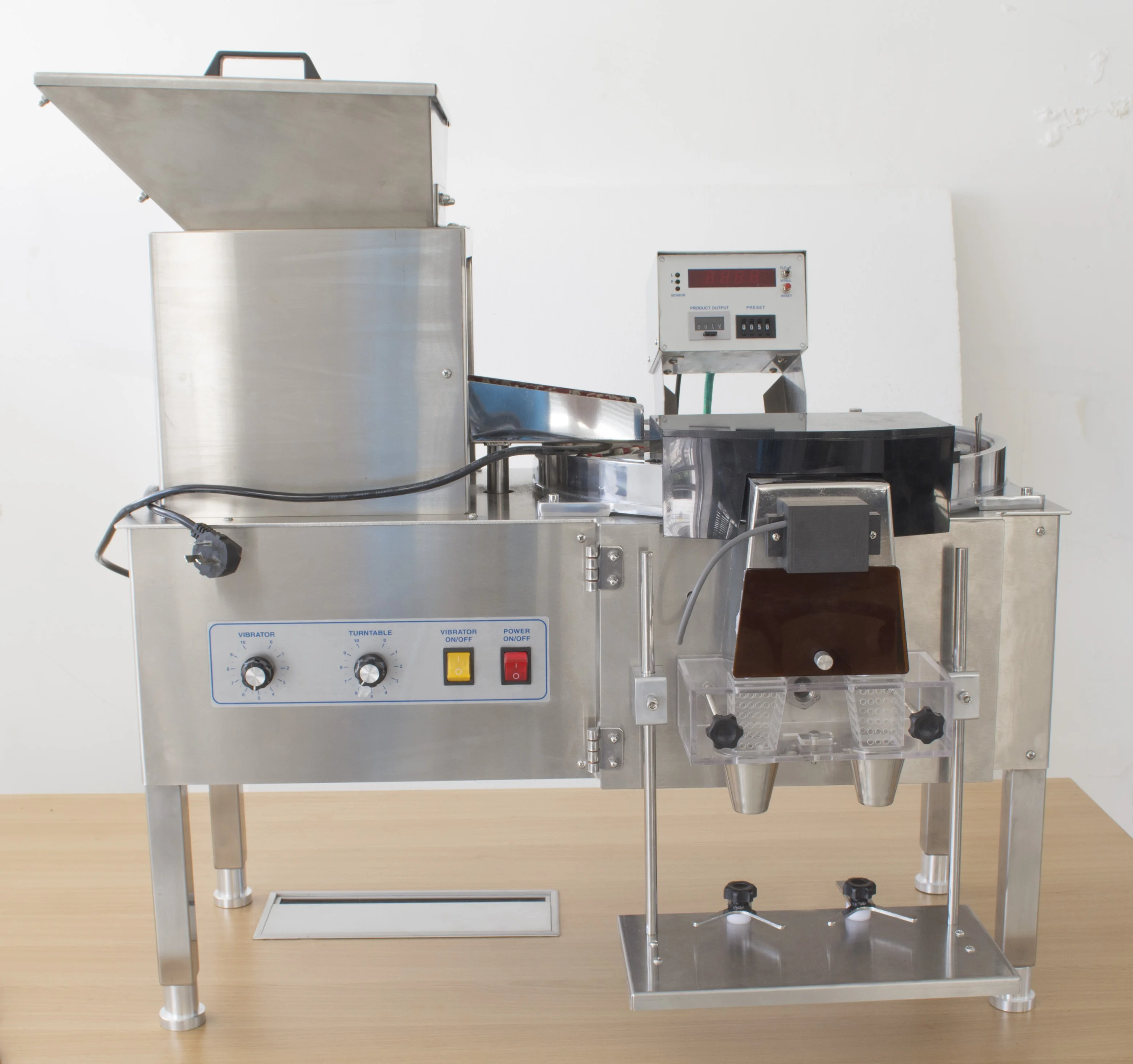

Desktop Quantitative Machine
Feature:
1) The number of pellet counted be arbitrarily set up among 0-9999.
2) Stainless steel material for whole machine body can meet with GMP specification.
3) Easy to operate and no special training required.
4) Precision pellet count with special electrical eye protection device.

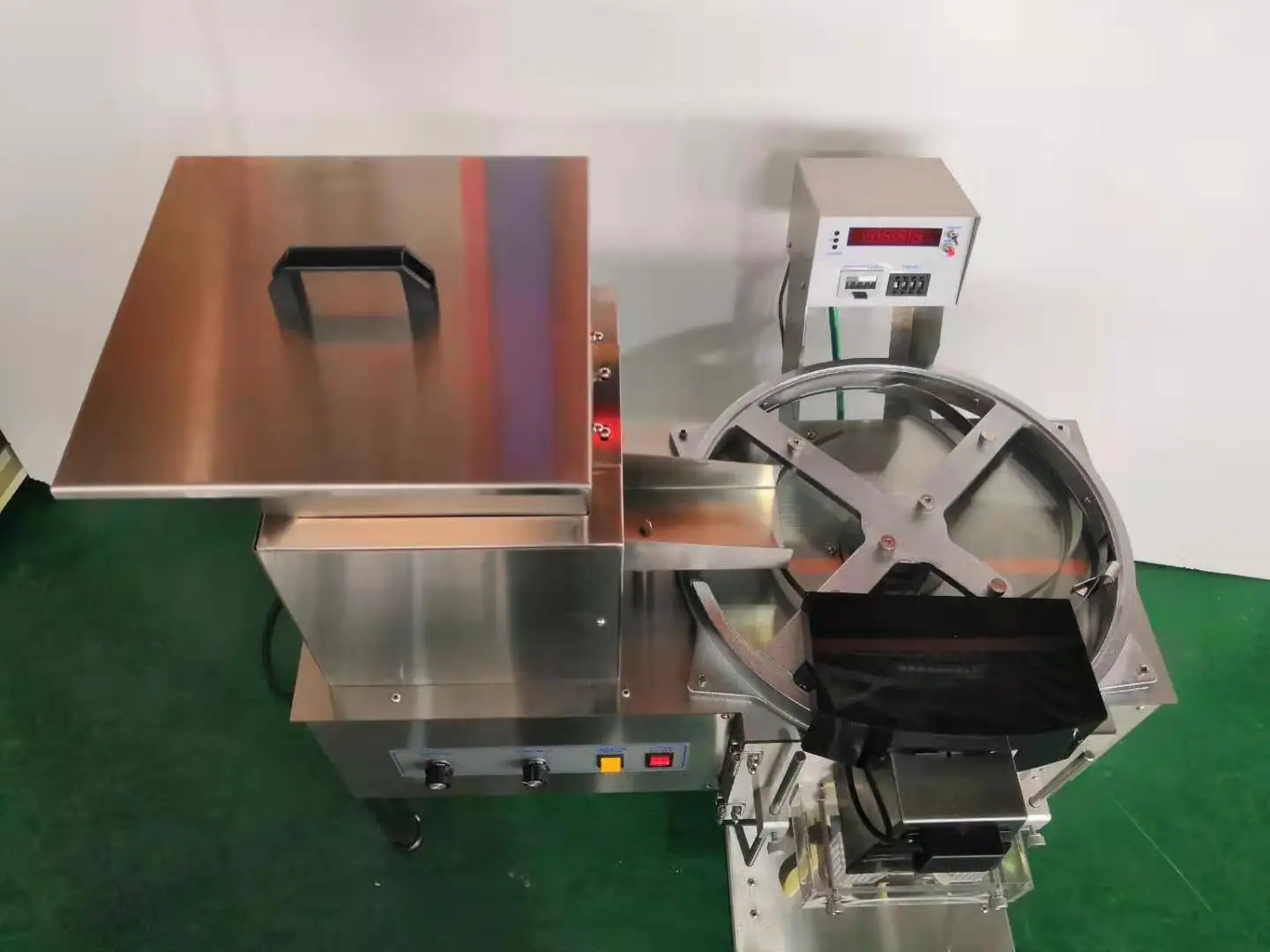

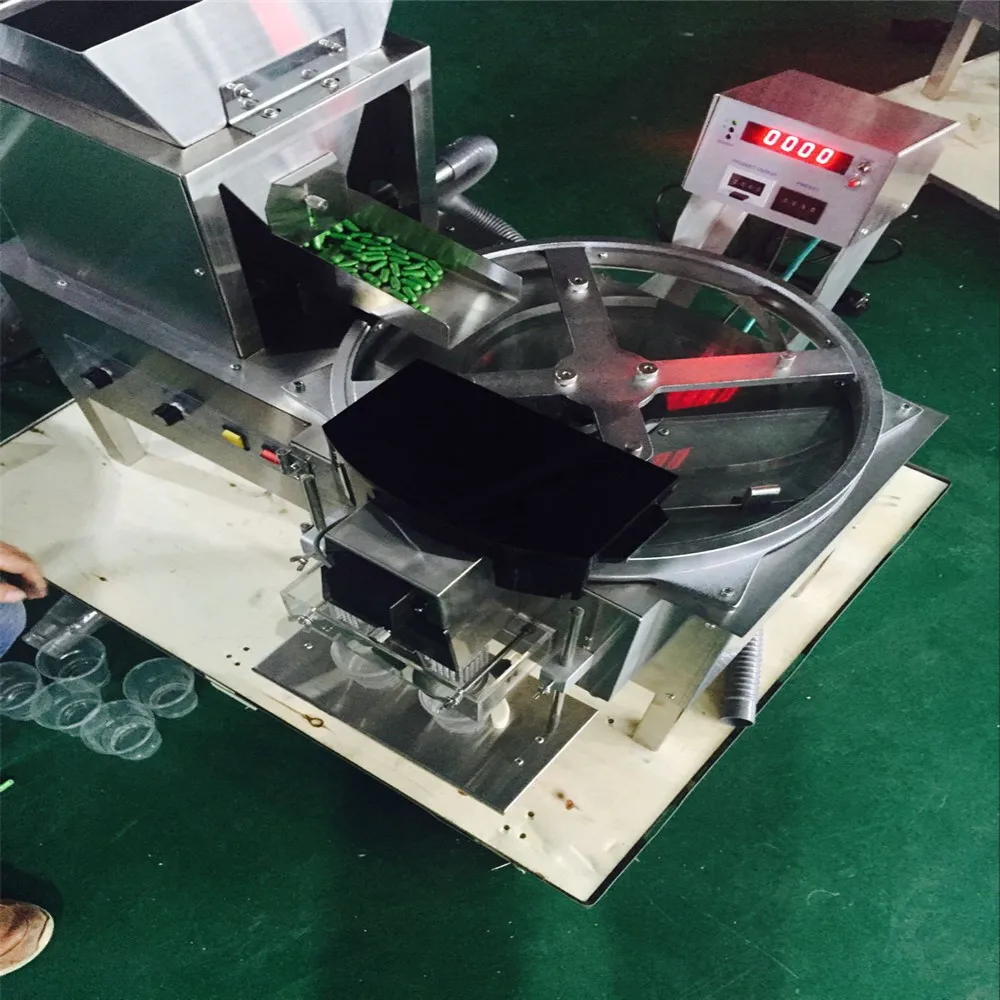

5) Rotary counting design with fast and smooth operation.
6) The rotary pellet counting speed can be adjusted with stepless according to the bottle putting speed manually.
1) The number of pellet counted be arbitrarily set up among 0-9999.
2) Stainless steel material for whole machine body can meet with GMP specification.
3) Easy to operate and no special training required.
4) Precision pellet count with special electrical eye protection device.
5) Rotary counting design with fast and smooth operation.
6) The rotary pellet counting speed can be adjusted with stepless according to the bottle putting speed manually.
7) The interior of the machine is equipped with dust cleaner to avoid the dust effect on the machine.
8) Vibration feeding design,the vibration frequency of the particle hopper can be adjusted with stepless based on the needs of themedical pellet out put.
9) YL-2:Once start with one bottle and automatically to count the next when finished, easy to pick up and put down the bottle by hand.

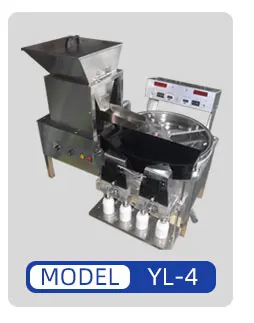

10) YL-4 :Once start with two bottles and automatically to count the next two bottles when finished, easy to pick up and put down by two hands and the speed is one time faster.
8) Vibration feeding design,the vibration frequency of the particle hopper can be adjusted with stepless based on the needs of themedical pellet out put.
9) YL-2:Once start with one bottle and automatically to count the next when finished, easy to pick up and put down the bottle by hand.
10) YL-4 :Once start with two bottles and automatically to count the next two bottles when finished, easy to pick up and put down by two hands and the speed is one time faster.
|
MODEL
|

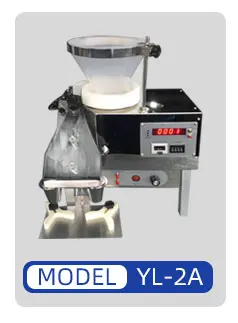

YL-2A
|

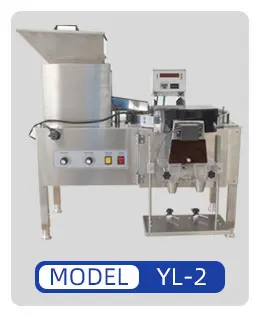

YL-2
|
YL-4
|
||
|
Capacity(tabs/min)
|
500-1500
|
1000-1800
|
2000-3500
|
||
|
Voltage
|
single phase 110V-220V 50HZ-60HZ
|
||||
|
Power(w)
|
30
|
100
|
100
|
||
|
Overall size(L*W*H) (mm)
|
427*327*525
|
760*660*700
|
920*750*810
|
||
|
Weight(kg)
|
30
|
85
|
105
|
||

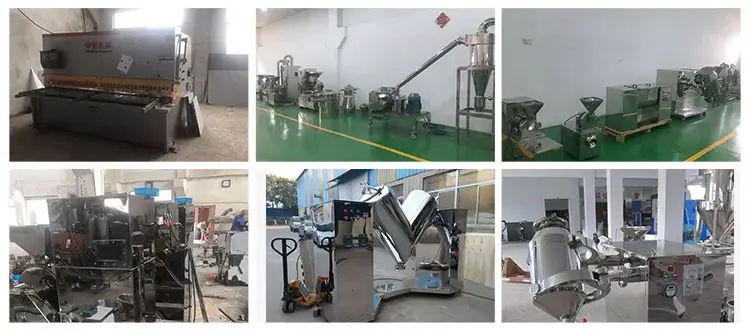

Jiangyin Xuanteng machinery equipment Co.,ltd is located in the site of taihu lake with the economic prosperity and beautiful scenery,jiangyin city,jiangsu province,China. We specializes in producing pharmaceutical machinery,food machinery ,chemical machinery .Like pulverizer,sifter,mixer,granulator and drier machine. We are a professional manufacturing factory with research,development and sales of medicine machinery. The enterprise sticks to the business purpose of “to the quality of survival,to the efficiency of development”.Being pioneers,creative and striving to improve product quality.We will provide our customers with better service. Sincerely thank our new and old customers cooperation and support,welcome to contact us discuss business and create a better future together!
1. who are we?
We are based in Jiangsu, China, start from 2015,sell to Domestic Market(20.00%),Southeast Asia(12.00%),North
America(10.00%),Western Europe(10.00%),South America(8.00%),Central America(5.00%),Oceania(4.00%),Mid East(3.00%),SouthernEurope(3.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Africa(1.00%),South Asia(1.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.
We are based in Jiangsu, China, start from 2015,sell to Domestic Market(20.00%),Southeast Asia(12.00%),North
America(10.00%),Western Europe(10.00%),South America(8.00%),Central America(5.00%),Oceania(4.00%),Mid East(3.00%),SouthernEurope(3.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Africa(1.00%),South Asia(1.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.what can you buy from us?
Pulverizer,Mixer,Sifting machine,Granulator,Drier
4. why should you buy from us not from other suppliers?
We specializes in producing pharmaceutical machinery,food machinery ,chemical machinery .Like pulverizer,sifter,mixer,granulatorand drier machine. We are a professional manufacturing factory with research,development and sales of medicine machinery.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
