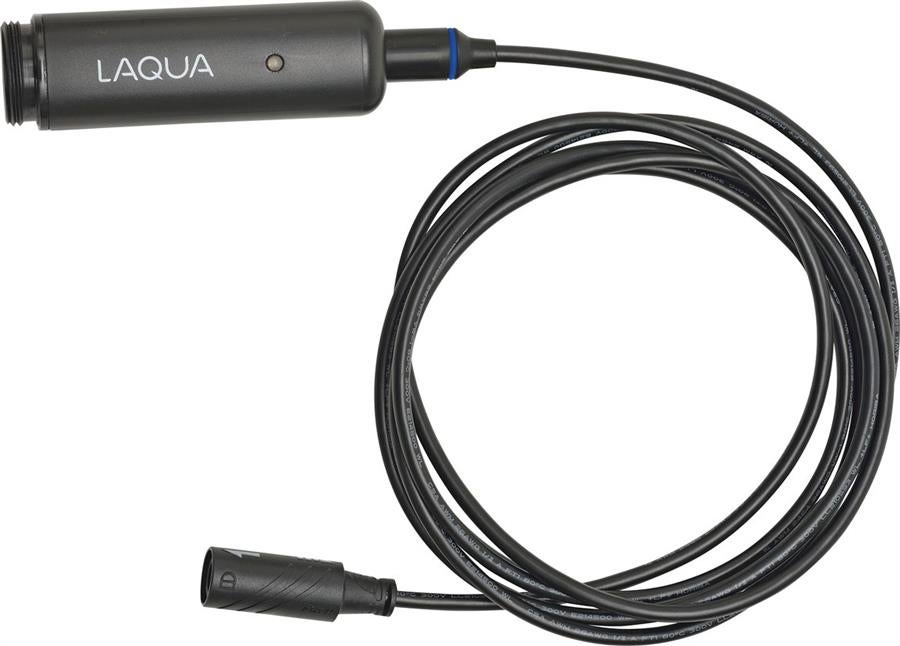

300PH-2 pH sensor Head with 2-meter cable

Sensor head for 300-P-C pH sensor cartridge Specifications Model 300PH-2 / 300-PH-5 pH Range -2.00 to 20.00 pH -2.000 to 20.000 pH Resolution -2.00 to 20.00 pH: 0.01 pH -2.000 to 20.000 pH: 0.001 pH Accuracy -2.00 to 20.00 pH: ?0.01 pH -2.000 to 20.000 pH: ?0.005 pH Calibration points Up to 6 pH Buffer Groups USA, DIN, NIST, NIST10, Custom mV Range ?1000.0 mV Resolution 0.1 mV Accuracy ?0.1 mV Temperature Range -30.0 to 130.0 ?C -22.0 to 266.0??F Resolution 0.1 ?C / ?F Accuracy ?0.5 ?C / ?0.9 ?F Calibration Option Yes Body Material ABS and polycarbonate Length & Diameter 85 x 30 mm Connector Push-pull Cable Length 2m / 5m pH Meter & Electrode Selection Which pH meter/electrode do I need?... Making sure you have the right electrode and meter for your application can be confusing, not to mention correct maintenance and what to do if you are having issues. You can find links to our support guides below to help you through the process. If you are after an electrode selector guide for some of our most popular electrodes and what applications they are recommended for you can find that below. Electrode Selector Guide ? ? An introduction to pH pH, put simply is a measure of how acidic or basic a solution is. It is a measure of H+ions present.? pH can be measured in a number of ways including test strips, indicator solution or with a pH meter and electrode. If you want to read more about the pH and the pros and cons of these methods, you can check out our introduction guide here.? How to take a pH reading and care for your electrode pH electrodes require the correct storage and regular calibration. If you have a pH meter or are looking to purchase and need to find out more about the care and maintenance process then you can read our guide here. We also include a troubleshoot sections with the most reported issues and possible solutions.? Selecting the right electrode and meter for your application So you have decided you need to purchase a pH meter with electrode, but with such a wide selection out there, how do you know which is right for you? You can read our guide on the differences between electrodes and what applications different features are good for. We also have an electrode selection guide for some of our most popular electrodes.? Related Products pH Buffers Electrode Storage Solution Electrode Cleaning Solution ? ? If you require any further assistance, or extra information you can request that here and one of our trained technical specialists will be in contact. Please provide as much detail as possible so that we can get back to you with the right information. Request information LAQUA 300 Series Videos Get to grips with how to use HORIBA's WQ 300 Series of portable meters with the following videos: ? ? Measurement Mode ? ? ? ? ? ? Calibration ? ? ? ? Other ? ? ? LAQUA 300 Series Components STEP 1 - Select your meter with 1, 2 or 3 channels Meter, Carrying Case, Batteries, SD Card and Manual (sensor head, sensor and solutions are not included) WQ310-K 3200832605 WQ 310 Waterproof 1 channel meter in carrying case, 4 x AA batteries, wireless SD card, manual, and quick guide WQ320-K 3200832606 WQ 320 Waterproof 2 channel meter in carrying case, 4 x AA batteries, wireless SD card, manual, and quick guide WQ330-K 3200832607 WQ 330 Waterproof 3 channel meter in carrying case, 4 x AA batteries, wireless SD card, manual, and quick guide ? STEP 2 - Select your electrode head Parameters to select for your WQ-310, WQ-320 or WQ-330 meter - Connection between meter and Sensor 300PH-2 3200812206 300PH-2 pH sensor Head with 2 meter cable 300PH-5 3200812207 300PH-5 pH sensor Head with 5 meter cable 300-O-2 3200812204 300-O-2 ORP sensor Head with 2 meter cable 300-O-5 3200923561 300-O-5 ORP sensor head with 5 meter cable 300-C-2 3200784468 300-C-2 EC/TDS/RES/SAL Head with 2 meter cable 300-C-5 3200812202 300-C-5 EC/TDS/RES/SAL Head with 5 meter cable 300-I-2 3200812203 300-I-2 ION sensor Head with 2 meter cable 300-I-5 3200923560 300-I-5 ION sensor Head with 5 meter cable STEP 3 - Select your electrode cartridge? Electrodes to select for your WQ-310, WQ-320 or WQ-330 - sensors can be connected if using 3200821465 300-P-C 3200786363 300-P-C pH sensor Cartridge 300-O-C 3200922104 300-O-C ORP sensor cartridge 300-4C-C 3200780928 300-4C-C 4-Cell EC sensor Cartridge, Epoxy, carbon body, 10 ?S/cm to 2000 mS/cm 300-2C2C 3200820579 300-2C2C, 2-Cell EC sensor Cartridge, Stainless Steel, K=0.1, 0,01 to 500 ?S/cm 300-2C-C 3200844642 300-2C-C, Flow cell for 300-2C2C conductivity sensor, glass 300-D-2 3200780940 300-D-2 Optical DO sensor, 2m cable, includes 1 membrane cap 300-D-5 3200780942 300-D-5 Optical DO sensor, 5m cable, includes 1 membrane cap STEP 4 - Select your calibration solutions 60 ml Calibration solutions 560-PH 3200820791 pH 4.01, 7.00, 10.01 (60ml each) 560-C 3200820792 84uS/cm, 1413 uS/cm, 12.88 mS/cm, 111.8 mS/cm (60ml each) Replacement for Dissolved Oxygen membrane and BNC connector adapter 300-D-M 3200781554 Replacement DO cap for 300-D-2 and 300-D-5 300 BNC 3200821465 Connector for BNC Electrode to Electrode Head 300-EXT-10 3200921588 Cable for WQ-300 series, 10 meter ? Below is a detailed overview of these components with images Feefo Reviews
