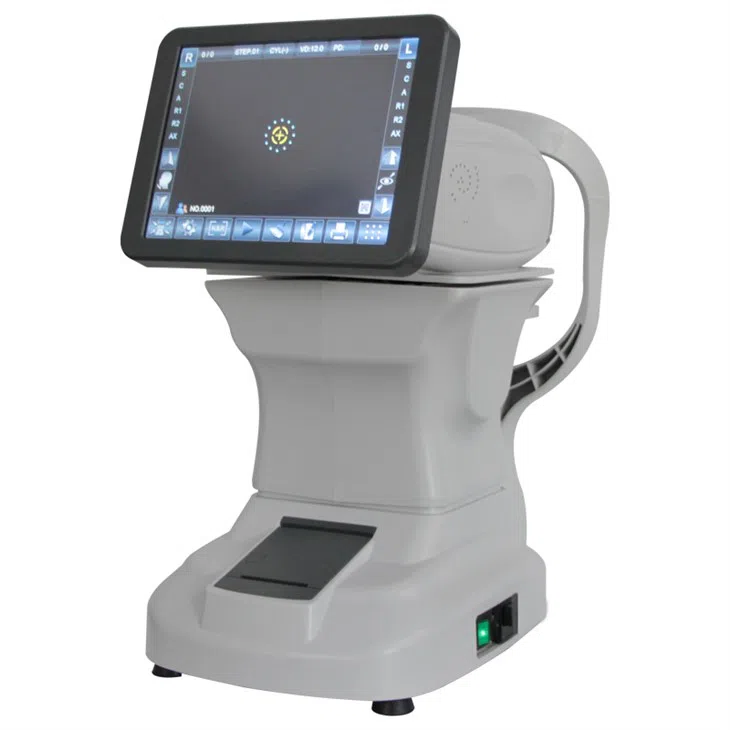

3D Pupil Tracement Auto Refractometer

Advanced Hartman Type Auto Refractometer
High speed image acquisition and image identification.
8-inch TFT touch screen, supports 360 degree rotation and 180 degree flip.
3D Intelligent measurement achieves auto focus.
Built-in thermal printer has auto paper cutting function.
Auto Refractometer and Refractometer-Keratometer is one high precision instrument of objective measuring the patient?s eyes with unique optical system inside and accurate imaging analyzing and processing in Hartman technology. It?s mainly used to measure the patient?s diopter, including sphere power, cylinder power, optical axis, pupil distance and corneal curvature, to provide reference data for eyes? treating and eyeglasses choice. The measurement result can be displayed on screen or printed out on the paper.
Specifications

VD Range:
0.0, 12.0, 13.75 and 15.0

Sphere Range:
-20.00D ~ +20.00D (VD=12, 0.01 ,0.06, 0.12, 0.25 Increments)

Cylinder Range:
0.00D ~ ?10.00D (0.06, 0.12, 0.25 Increments)

Axis:
1 degree ~ 180 degree (1 degree Increment)

Cylinder Symbol:
-, +, mixed

PD Range:
10mm~86mm

Pupil Distance:
2.00mm~8.00mm

Mini Pupil Size:
2.0mm

Curvature Radius:
5.0mm~10.0mm (0.01mm Increments)

Refractive Power:
33.00D~67.00D

Cylindrical Power:
0.00D~-15.00D (0.06D/0.12D/0.25D Increments)

Axis:
1? ~180?

Target:
Auto Fog

Average Measurement Time:
<0.5 second Max Brightness: <30uw (Safety Assure) Date Save: 10 Groups Left/Right Eye Printer: 57mm Width, Auto Cutting Power: AC 100~250V, 50/60Hz Gross Weight: 26.5kgs Net Weight: 22kgs Standard Acessories: User?s Manual (1) Dustproof Cover (1) Lens Dustproof Piston (1) Model Eye (1) Power Line (1) Chinrest Paper (1) Cleaning Cloth (1) Printing Paper (1) Fuse (2) Chinrest Pin (2) Enter your email Email Address Subscribe Leave this field empty if you're not a robot: Reviews There are no reviews yet. Be the first to review ?3D Pupil Tracement Auto Refractometer? Cancel replyYour email address will not be published. Required fields are marked *Your rating?* 1 2 3 4 5 Your review?*Name?* Email?* Save my name, email, and website in this browser for the next time I comment. Our parcel courier serviceFoxic is proud to offer an exceptional international parcel shipping service. It is straightforward and very easy to organise international parcel shipping. Our customer service team works around the clock to make sure that you receive high quality courier service from start to finish.Sending a parcel with us is simple. To start the process you will first need to get a quote using our free online quotation service. From this, you?ll be able to navigate through the online form to book a collection date for your parcel, selecting a shipping day suitable for you.Shipping TimesThe shipping time is based on the shipping method you chose. EMS takes about 5-10 working days for delivery. DHL takes about 2-5 working days for delivery. DPEX takes about 2-8 working days for delivery. JCEX takes about 3-7 working days for delivery. China Post Registered Mail takes 20-40 working days for delivery.
