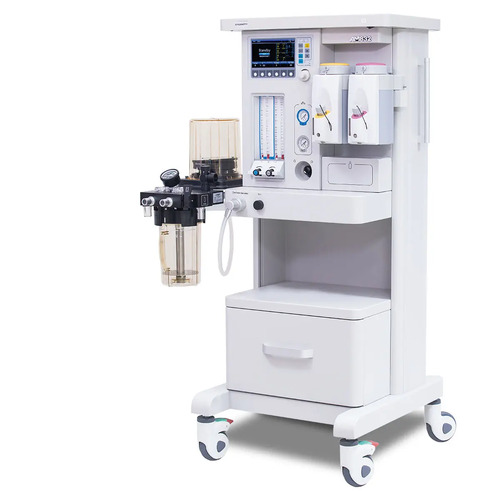

Anesthesia Machine AM832

Advanced Control Technology, Classic Design Alloy Material, High Temperature Spray, High Quality & Technology ventilator, Patient type: Adult, pediatric. Driven mode: Pneumatic control electrical control Display: 4.2? TFT color display Ventilation mode: IPPV, STANDBY, SIGH, Manual Tidal volume: 50mL to 1500mL Respiratory frequency: 6 to 60bpmI:E ratio: 1:1 to 1:4 Upper airway pressure limit: 1 to 8kPa Lower airway pressure limit: 0 to 2kPa Tidal volume: 50mL to 1500mL Silence time for alarm: ? 120s Monitoring parameters: Tidal volume, Respiratory frequency, Airway pressure Alarm parameters: Airway pressure limit, oxygen supply failure, Power supply failure Safety valve pressure limit: ? 6kPaPower supply: AC 220V ? 10%, 50Hz ? 1%.
Specifications
Physical

Dimension: 1350mm (H)*560mm (W) *620mm (D)
Weight:? 85 kg
Display: 5.6 inch LCD screen
Casters: Four anti-static casters with diameter 100mm, the front two are with brakes

Electronic Specification

Power input: 100~240V, 50/60 HZ
Power Consumption:?<=?50VA Top light Backlight at flowmeter Pneumatic Specification Pipeline : O2, N2O and Reserved O2 Yoke (optional) : 1 x O2, 1 x N2O Pressure gauge : 2 for pipeline gas; 2 for cylinder gas (optional) Flowmeter : O2 & N2O; Mechanical 4 tubes; O2 & N2O linkage and N2O cutoff system O2 : 0~1L/Min, 1~10L/Min N2O : 0~1L/Min, 1~10L/Min O2 flush : 25-75L/min Operational modes : Closed and Semi-closed circuit system APL valve : 0,19~6KPa Manual (Bag) / Mechanical ventilation switch : By-stable type, switch between manual/spontaneous ventilation and ventilator ACGO connector : ISO 22mm OD and 15mm ID Vaporizer One or Dual positions Mounting: Fixed or tool-free installation Selected manifold interlocks and isolates vaporizers Agent type: Sevoflurane, Halothane, isoflurane and Enflurane Filling type: Pour-fill, Easy-fill, Quick-fill or Key-fill Compensation: Flow, pressure, and temperature compensation Ventilator Specification Type & Drive mode: Integrated Electronically-controlled pneumatically-driven ventilator Patient: Pediatric and adult Ventilation mode: IPPV, IPPB, SIGH, MAMUAL/Spontaneous Tidal Volume: 50~1500ml Frequency: 0~100bpm I:E ratio: 1:10~10:1 Pmax: 8Kpa Pmin:0~2Kpa PEEP(optional): Mechanical type Monitoring Tidal volume: 0~2000ml Pressure: -2~10Kpa Frequency : 0~120bpm Waveform : P-T FiO2 (optional) : 21%~100% Alarm Upper airway pressure limit Lower airway pressure limit Features More accurate, Safer and More Convenient CE marked, meet EU clinical requirements ISO quality guarantee Suitable for adult and pediatric Pin-Index for N2O/O2 Cylinder Integrated high temperature sterilization and CO2 absorber system Newly-developed reliable gas system Enter your email Email Address Subscribe Leave this field empty if you're not a robot: Reviews There are no reviews yet. Be the first to review ?Anesthesia Machine AM832? Cancel replyYour email address will not be published. Required fields are marked *Your rating?* 1 2 3 4 5 Your review?*Name?* Email?* Save my name, email, and website in this browser for the next time I comment. Our parcel courier serviceFoxic is proud to offer an exceptional international parcel shipping service. It is straightforward and very easy to organise international parcel shipping. Our customer service team works around the clock to make sure that you receive high quality courier service from start to finish.Sending a parcel with us is simple. To start the process you will first need to get a quote using our free online quotation service. From this, you?ll be able to navigate through the online form to book a collection date for your parcel, selecting a shipping day suitable for you.Shipping TimesThe shipping time is based on the shipping method you chose. EMS takes about 5-10 working days for delivery. DHL takes about 2-5 working days for delivery. DPEX takes about 2-8 working days for delivery. JCEX takes about 3-7 working days for delivery. China Post Registered Mail takes 20-40 working days for delivery.
