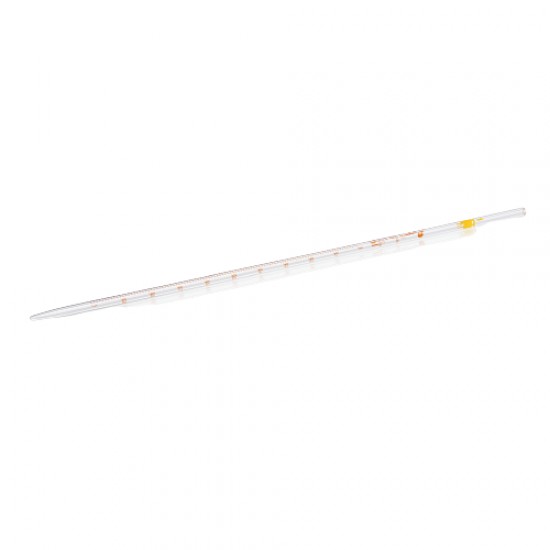

AR Measuring pipette, 1 ml, for partial outflow, class B

Product Overview?Measuring Pipette from Soda-lime Glass, Class B, Type 1, 1 mL Complies with ISO 835 Manufactured from soda-lime glass Type 1: drain-out, zero at top (numbering from the top down) drain-out allows different quantities of liquids to be held and dispensed in portions of the same size or different sizes Calibration is based on the poured out volume (?Ex?) at a + 20 ?C reference temperature The volume content tolerances conform to accuracy Class B Easy-to-read scale with graduation marks to estimate the content Fired-on, highly durable amber print, with cotton plugLength l (mm)?? ?360 Capacity (mL)?? ?1 Colour code DIN 12621?? ?2 x yellow Material?? ?Soda-Lime Glass Kalk-Soda?? ?Soda-lime-silica glass contains a high percentage of alkaline and alkaline earth oxides. The glass has a Class 3 Hydrolytic resistance. The large coefficient of thermal expansion (CTE 9.1 ? 10?6 K?1 at 20 ?C) makes the glass more subject to breakage from Length (mm)?? ?360 Graduation Intervals (mL)?? ?0.01 Tolerance (mL)?? ?+/- 0.008 Autoclavable?? ?Yes Retrace Code?? ?This is a lot number printed on the product during the manufacturing process used for identification of the production unit, the production work order and for traceability of the materials used.Product More SpecificationsMade InGermanyWrite a review Your Name Your ReviewNote: HTML is not translated! Rating Bad Good Captcha Please complete the captcha validation below Continue
