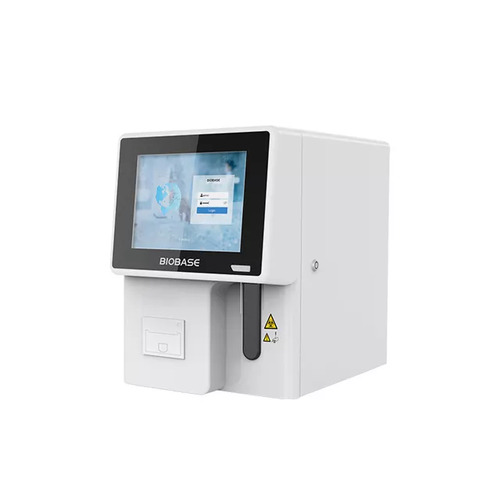

Auto Hematology Analyzer

Features?
1. 9.7-inch color touch LCD screen, easy to operate, display all parameters and histograms on the same screen
2. Fewer samples are required for testing: whole blood?10ul, pre-diluted?20ul
3. 60 samples/hour.
4. 21 parameters + 3 histograms
5. It can be turned on continuously for 24 hours
6. Automatically clean the sampler, counting pool and pipeline after starting up
7. Built-in thermal printer, external printer can be connected.
8. Electrical impedance method, cyanide-free detection of HGB
9. Fully intelligent blockage removal and alarm function
10. Both automatic calibration and manual calibration are available
11. Counting Mode: Venous, capillary, prediluted
12. Support LIS system
?
Technical Parameter:

Model
BK-3100

Throughput
60 samples/hour

Principle
Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB

Channels
2

Parameters
21 parameters(including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-SD, RDW-CV, PLT, MPV,PDW?PCT, P-LCR, P-LCC)

Histograms
3 histograms (including WBC, RBC, PLT histograms)

Sample Volume
Whole blood: 10?l, Prediluted: 20?l

Calibration
Manual, auto calibration

Counting Modes
Venous, capilary, prediluted

Printing Model
Auto print, manual print

LIS
Support Bi-directional LIS

Language
Chinese, English, Spanish, French, Russian, Ukrainian

Reagent
Diluent 20L, Hemolytic agent 500ml, Probe cleanser: 50ml

Data Input
9.7-inch touch screen, mouse, keyboard (optional)

Output
Internal printer, support external printer

Printer paper
57*30mm

Interface
4 USB ports, network port?RS232 serial port.

Storage
100,000 results with histogram

Unclog
High voltage burn, reverse high-pressure flush

Work Temperature
15-30?C

Power Supply
100~240 AC, 50/60Hz, 150VA

Relative Humidity
30??85?

Atmospheric Pressure
70.0kPa-110.0kPa

Carry-over rate
Parameter
WBC
RBC
HGB
PLT

CV
? 1.5%
? 1%
? 1%
? 3%

Background
Parameter
WBC
RBC
HGB
HCT
PLT

Background
? 0.3?109/L
? 0.03?1012/L
? 1 g/L
? 0.5%
? 10?109/L

Linearity
Parameter
Measurement range
CV

WBC
(0.5~10.00?109)/L

(10.10~99.9?109)/L
(?0.5?109)/L

?5%

RBC
(0.05~1.00?1012)/L (1.01~9.99?1012)/L
(?0.05?1012)/L

?5%

HGB
(2~70g)/L

(71~300.0g)/L
(?2.0g)/L

?2%

PLT
(10~100?109)/L

(101~999?109)/L
(?10.0?109)/L

?8%

Precision
Parameter
Whole blood (CV)
Pre-diluted ?CV?
Measurement range

WBC
? 2.0%
? 4.0%
(4.0-15.0?109)/L

RBC
? 1.6%
? 3.0%
(3.5-6.0?1012)/L

HGB
? 1.6%
? 3.0%
(110.0-180.0g)/L

MCV
?1.0%
?2.0%
(70.0-120.0)fL

PLT
? 4.0%
?8.0%
(150.0-500.0?109)/L

External Size(W*D*H)
295*467*418mm

Packed Size(W*D*H)
Instrument: 404*564*616mm; Reagent: 480*480*480mm

Net weight
19 KG

Gross weight
Instrument: 31KG; Reagent::25Kg
