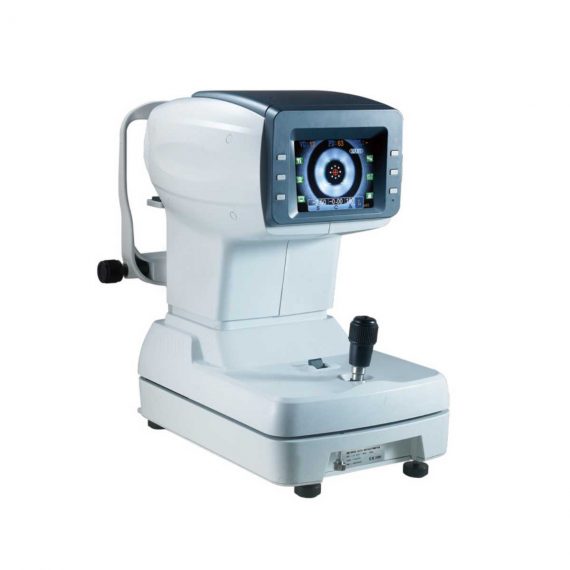

Auto Refractometer

Description

Features:

Using the ARM processor and the latest domestic image processing, the system is fast and the image is clear.
Japan’s mature optical path system, humanized automatic mist measurement process, to reduce the error caused by adjustment, more precise measurements.
Light rack with integral casting, CNC machining, the measuring system is more stable, good consistency.
Color LCD display, 5.7 inches man-machine interface is more comfortable.
PD automatic measurement function, automatically PD value.
One key lock function, quickly locking mobile platforms.
Innovative designs, according to the structure of human body engineering, to bring customers good aesthetic feeling and comfortable.
Data transmission with CV7200, improved efficiency of online 5x magnification options, respond to different viewing needs.


Technical Specifications:
Measurement Range

Vertex distance…………………………………0.0,12.0,13.75,15mm

Sphere…………………………………-20D~+20D(0.12/0.25D step)

Cylinder…………………………………….0~±10D(0.12/0.25D step)

Axis………………………………………………………1~180°(1° step)

PD distance……………………………………………………30~85mm

PD………………………………………………………………..10~86mm

Minimum pupil diameter……………………………………….Ø2.0mm

Target…………………………………………automatic fogging target
Hardware specifications

Monitor…………………………………………………….5.7″ color LCD

Printer………………………………………………Fast thermal printer

Power saving function………………..OFF, 5/15 mins (selectable)

Power supply…………………………..AC110~220V, 60/50Hz, 50W

Dimension/weight…………………………288x500x480mm(14kgs)
