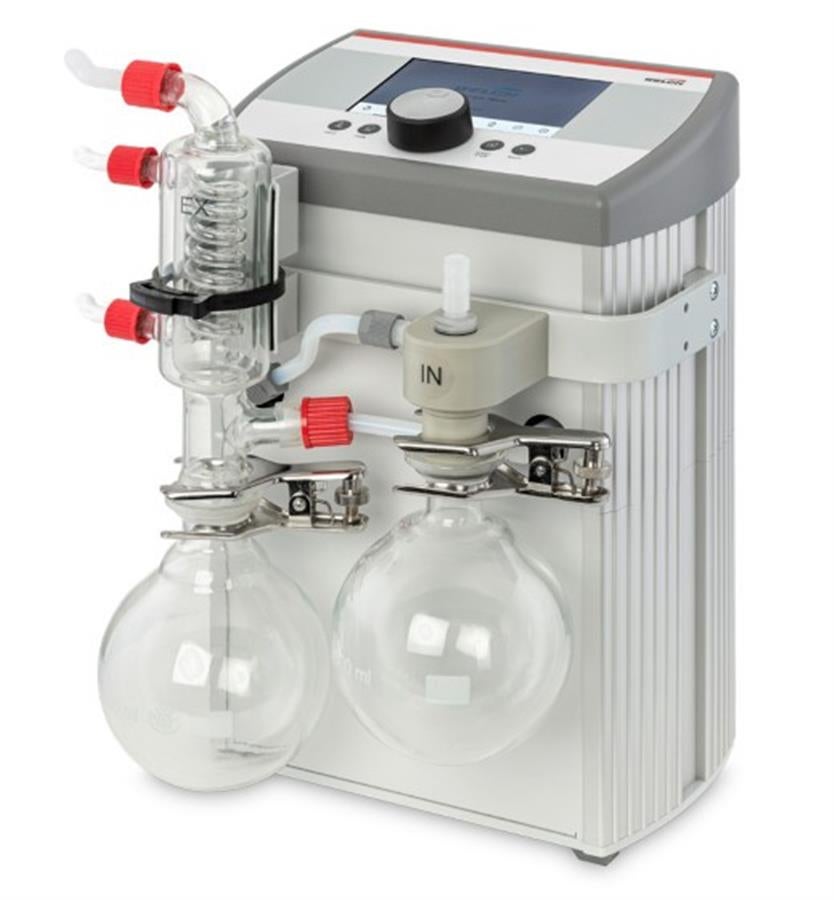

Chemistry Lab Vacuum System mLVS 105 T -10 ef+, 18l/min, 2mbar, 115/240V

The LVS 105 T - 10 ef is the perfect partner for your rotary evaporator. It has been optimized for rotary evaporator application with an ultimate vacuum of 2 mbar and peak flow of 20 l/min, allowing non-volatiles such as DMF to be evaporated at 30?C. It combines a powerful built-in chemical duty diaphragm vacuum pump with Ecoflex control principals. Heating of the pump heads allows a consistent clean vacuum without gas ballasting. The Ecoflex control continuously adjusts the pumping speed to match the vapour load of the process and allows the pump to exhibit single point control, which reduces bumping and foaming whilst achieving increased evaporation rates. The built-in digital vacuum controller allows easy adjustment of the desired vacuum level, as well as the option to select common solvents from the built-in solvent library. An inlet trap protects the pump from ingesting liquids and particles, and an exhaust vapour condenser for optimal solvent recovery. Scope of delivery: chemical duty diaphragm pump in casing, inlet trap, exhaust condenser, Vacuum Controller 521 with ecoflex digital vacuum control Specifications Number of heads / stages: 4/3' Max. pumping speed at 50 Hz in m?/h (l/min): 1.2 (20) Ultimate pressure in mbar (Torr): < 2 Wired for: 90 - 260V, 50/60Hz Intake connection: DN 8 Exhaust connection: DN 8 Sound level (dB): < 45 Dimensions (W/D/H) in mm: 250/260/435 Weight kg (lbs): 9.5 (20.9) Service /Accessories Vacuum Control-Box VCB 521 cv - 600053 Connection cable black - with plug CH, Cable length 1.5 m - 825877 Operating software "WELCH-Control 521" CD - 620637-01 Service Kit for MPC 105 T, 104 T - 402044 Inlet Fittings Type DN 16 KF 1/4'' PP - 710116 Rotary evaporator connection kit - 112575 Water valve WV 2 for VCB + LVS - 700300-02 * Without handle Feefo Reviews Product Attachments WELCH Chemistry Vacuum System - LVS105T-10ef+ (1.50 MB) Welch Rotary Evaporators (2.45 MB) Welch Vacuum Gauges (2.67 MB)
