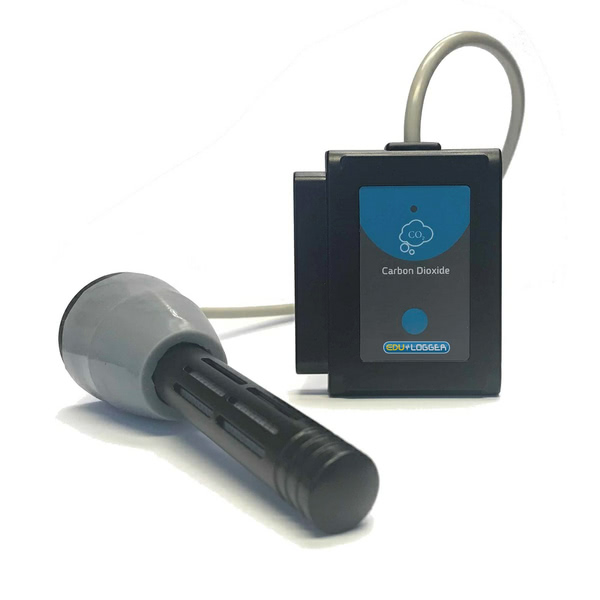

CO2 (Carbon Dioxide) Logger Sensor ? Edu-Logger

Name: CO2 (Carbon Dioxide) Logger Sensor ? Edu-Logger
SKU: 1756070744-928
Availability: InStock

in Industrial tools

Sku: 1756070744-928

Write a Review

CO2 (Carbon Dioxide) Logger Sensor ? Edu-Logger

₦0.00

Features

Specifications:- Experiment Duration: 1 second to 31 days.?Range and operation modes:-????????? 350 to 10,000 ppm?ADC resolution 14 bit?Resolution:-1 ppm?Max Sample Rate (S/sec):-??? 100 (subject to?experiment duration)?Note:The sensor must be calibrated before every use according to the following simple procedure: Connect the sensor to the PC through a USB module or to a battery module. Wait for two minutes to warm the sensor and press the pushbutton on the CO? logger sensor for 3 seconds. A bottle adapted to the sensor is supplied.

Chat with a Doctor Consult a Lab Tech Run Quick Medical Test Setup your Lab Chemical Analysis Lab Furnitures Models, Charts & Kits Meds Delivery Worldwide Get Petrol, Gas Palm oil, Tomatoes, Nuts Request Visit Repairs & Calibration Staff Training Final Project Assistance Bulk Purchase More

Top Services, Chat with Us

🧪 Setup your school/medical lab 🔬 Order School Science Wares 🛠️ Repair Faulty Equipment 🧫 Run Quick Lab analysis & tests 📍 Request a Visit

Description

Description

This logger sensor is based on an electromechanical reaction between CO? gas and the sensor.?The result of the electromechanical reaction is voltage, measured by the logger sensor. The measurement units are ppm (parts of CO? per million of air).?As with all Edu-Logger Sensors this must be used with one of the Edulogger communication modules:?USB ModuleWi-Fi ModuleBluetooth ModuleGraphic Display ModuleViewer Module ( 900-230 )
