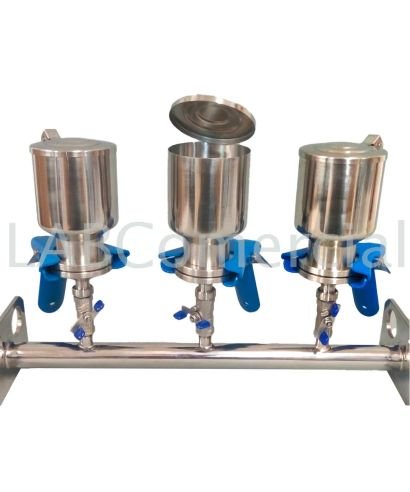

Complete Stainless Steel Vacuum Manifold 3-Places, 300ml

Equipment manufactured entirely in stainless steel and that is specially developed to work in quality control in the food industry, chemical and pharmaceutical, as well as for water analysis, among other processes.

Stable structure with a distance between positions that facilitates the access and handling of the filter funnels. all its components can be sterilized in autoclave at 121?C temperature or with dry heat.

Each of the stations has a stopcock with 90? closing or a stainless-steel control valve that allows the operator to work independently at each station or in series by means of a common drainage system with 10 mm diameter olive outlet.

Each filter holder is connected to the multiple filtration manifold by means of a thread with a hermetic seal for the vacuum circuit.

Reference includes 10 elements:
1 unit: 3-post stainless-steel vacuum manifold
3 units: 300 ml stainless-steel capacity funnels
3 units: Stainless-steel filter holder.
3 units: Ionized aluminium clamp.

The vacuum circuit is made by connecting the multiple filtration manifold to a vacuum pump by means of a rubber tube. The 47 mm membrane filter must first be placed in the filter holder.

Available??Vacuum Manifold complete in glass with funnels of different capacities.
