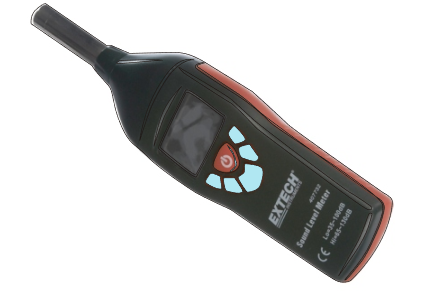

DIGITAL X-STREAM SOUND LEVEL METERS
(Datalogger)

X-Stream™ Sound Level Meter is used to measure and monitor the sound level in all types of industrial environments. Used for compressed air exhaust noise measurement it can identify areas where costly and inefficient blow off can be replaced by energy efficient Nex Flow™ blow off products. In many instances, noise may be reduced by amplification products as much as 10 dBA, to protect workers from excessive and damaging noise levels and reduce energy use.
Sound Meter with Data Logging
Data logging Sound Level Meter.

Stores up to 20,000 records with real date and time Stamp.

Meets ANSI and IEC61672-1 Type 2 standards.

FEATURES

30 to 130 dBA range with 1.4 dBA accuracy
Meets ANSI and IEC61672-1 Type 2 standards
Data logging capability up to 20,000 records at speed from 1/sec to 1/59 sec
Capture up to 10 reading/sec when connected to a PC
MIN/MAX, Data Hold, Auto power off
Built-in USB port, double molded housing with built-in stand
Complete with AC adaptor, Windows® compatible software, USB cable, wind cover, tripod, 9V battery and hard carrying case

SPECIFICATIONS

Item #:
Model 91005

Item Name:
Sound Meter with Data Logging

Noise Reduction:
As much as 10 dBA

Measuring Range:
30 to 130 dBA

Basic Accuracy:
± 1.4 dBA

Frequency Weighting:
A

C

Response Time:
Fast/Slow

Analog Output:
AC/DC

Dimensions:
10.9 x 3 x 2 in

278 x 76 x 50 mm

Weight:
12.3 oz

350 g

Standard/Certification:
ANSI

IEC61672-1 Type 2

Data Logging Capability:
Up to 20,000 Points

PC Interface:
USB
