Dissipation Factor Oil Tester – Available On Request, Prices in Dollars

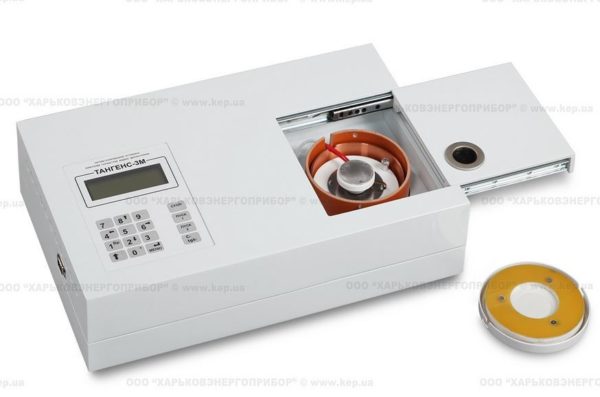

Description Dissipation Factor Oil Tester – Tangent-3M A digital automatic dissipation factor measurement apparatus Tangent-3M is designed for measuring the dielectric dissipation factor tgδ of transformer oil and other insulating fluids according to IEC 60247 and GOST 6581-75 standards. The device can operate with six different measurement cells, parameters of which are stored in a non-volatile memory and are easily accessible from the built-in menu. All settings and 2000 last measurements are also stored in a non-volatile memory of the unit. The package includes software on a CD-ROM that allows importing the measurements data from the device to a PC. The data can be imported in MS Word or MS Excel formats. The device connects to a PC via the serial interface (RS232C). Technical Specifications Dissipation factor measurement range 0,0001 ÷ 1.0 (0.01 ÷ 100 %) Dissipation factor measurement error, %, max (0,01 tg + 0,0002) Effective voltage applied to the measurement cell, V 2000 Operating voltage measurement range, V 0 ÷ 2700 Relative error limit when measuring the operating voltage, % 1.0 Capacitance measurement range, pF 5 ÷ 50 Relative error limit when measuring the capacitance, % (0.5 + tg) Heating range, °С 10 ÷ 100 Temperature measurement error, °С ±1 Measurement time, including callibration and heating to 90 °С (with measurement intervals of 10 °С), minutes 30 Measurement time, including callibration and heating to 90 °С (with measurement intervals of 10 °С) and cooling down, minutes 80 Operating Conditions The device is designed for an indoors operation under the following conditions: Condition Value Air temperature, °С from -20 to +40 Relative humidity, %, up to 80 at +20° С Atmospheric pressure, kPa (mm hg) 84,0 – 106,7 (630 – 800) Package Contents Component Quantity Tangens-3M 1 Measurement cell YAPI-3 3 Power cable 1 PC connection cable 1 Software CD 1  Reference Cell YAOI-3 Optional Documentation User’s Manual 1 YAPI-3 Passport 1 Metrological certification Optional
