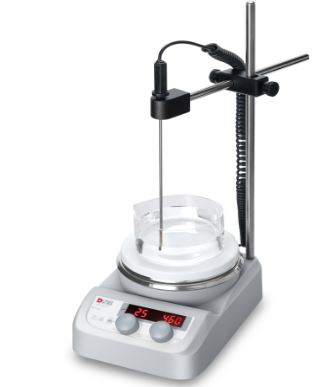

Double LED Digital Hotplate Magnetic Stirrer,stainless steel with ceramic coated hotplate,heating temperature up to 280°C- MS-H280-Pro
Key Features
•   Digital temperature control with max. temperature up to 280°C

•   Digital speed control with max. speed up to 1500rpm

•  Stainless steel work plate with ceramic coating provides good chemical resistant performance

•   External  temperature  control  is  possible  by  connecting  the temperature sensor(PT1000) with an accuracy at ±0.5°C

•   LED display shows temperature and speed

•   The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off
Double LED Digital Hotplate Magnetic Stirrer,stainless steel with ceramic coated hotplate,heating temperature up to 280°C- MS-H280-Pro

Specifications
MS-H280-Pro

Work plate Dimension
φ135mm(5 inch)

Work plate material
stainless steel cover  with ceramic

Motor type
Brushless DC motor

Motor rating input
5W

Motor rating output
3W

Power
515W

Heating output
500W

Voltage
100-120/200-240V  50/60Hz

Stirring positions
1

Max. stirring quantity[H2O]
3L

Max. magnetic bar[length]
50mm

Speed range
200-1500rpm

Speed display
LED

Temperature display
LED

Speed display resolution
±1rpm

Heating temperature range
Room temp.-280, increment 1°C

Control accuracy of work plate
±1°C(<100°C)     ±1%(>100°C)

Over  heat Protection
320°C

Temperature  display accuracy
±1°C

External  temperature sensor
PT1000 (accuracy ±0.5°C)

“Hot” warning
50°C

Protection class
IP21

Dimension [W x D x H]
150×260×80mm

Weight
1.8kg

Permissible ambient temperature and humidity
5-40℃ 80%RH
