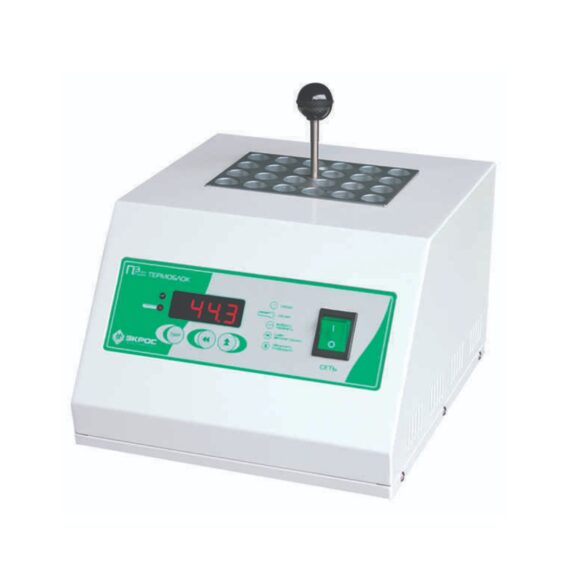

Dry Block Heater PE-4010 (22 sockets, d=18х85 mm)

Description

Purpose:

The dry block heater is intended for heating the samples in reaction vessels (10 ml) in fixed temperature regime under laboratory conditions.
The following functions are implemented in the device:

– setting and indication of the specified heating temperature

– setting the timer for switching on the heating after expiration of the specified time (delayed start)

– setting the timer for switching off the heating after expiration of the specified time

– socket for mounting the control thermometer
Technical specifications:

– Working temperature range, °С – from ambient +10 to 180

– Temperature maintenance accuracy, °С – ± 0.2

– Temperature gradient within the block volume – ± 0.2°С

– Temperature setting discreteness, °С – 0.1

– Timer interval setting range (switch-controlled):

  – from 1 s to 99 min 59 s, the discreteness is 1 s

  – from 1 min to 99 hours 59 min, the discreteness is 1 min (factory setting)

  – from 1 hour to 99 days 23 hours, the discreteness is 1 hour

– Power consumption, W – 350

– Overall dimensions (WxDxH), mm – 220×275х160

– Weight, kg – 4.5

– Socket dimensions, mm – ?18×85
– Number of sockets – 22
Scope of delivery:

1. Dry block heater – 1 pc.

2. Removable handle for moving the block – 1 pc.

3. Mains cable – 1 pc.

4. Data Sheet and Operating Manual – 1 pc.
