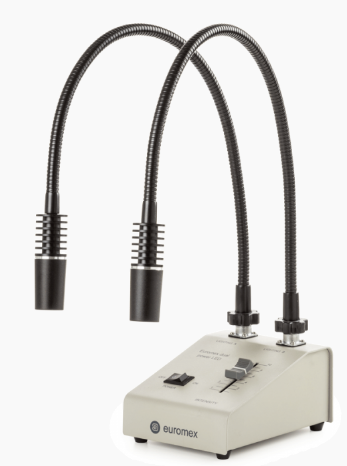

Dual LED illuminator – LE.5207
Euromex Dual LED illuminator


For stereo microscopy choosing the right illumination is essential to obtain a perfect image with maximum resolution. LED light sources have a much longer lifetime, less energy consumption and less heating than halogen light source. The Euromex LE.5207 is a compact and highly portable LED light source
Highlights of Dual LED Illuminator

Economical and compact light source
for life and materials sciences, various industrial applications and for stereo microscopy
With two self-sustaining 3W gooseneck arms
Available with white light spectrum and three monochromatic wavelengths

Features of Dual LED Illuminator

Light source with two self-sustaining gooseneck-type guides equipped with 2x 3 Watt white 6500 K power LED. Each self-sustaining Gooseneck-type LED guide is equipped with a 3-lens focusing head and has a length of 56 cm.
Luminous flux 25,000 lux
Operating voltage 100-240 V AC / 5 Vdc (50/60 Hz) auto switching
Dimensions 106 mm (w) x 140 mm (d) x 70 mm (h)
Weight 1.5 kg

Specification:

MODEL
Power
Color temperature
Luminous flux
Operation voltage
Dimensions (hwd)
Weight (kg)

LE.5207
2x 3 W LED

(equivalent to 2x 28 W halogen)
6,500 K
25,000 lux max.
100-240 Vac / 5 Vdc

(50/60 Hz)
106 (w) x 140 (d) 0x 70 mm (h)
1.5



Light source with two self-sustaining gooseneck-type guides, equipped with 2x 3 Watt white 6500 K power LED. Optionally available 365 nm UV-LED or 395 nm or 420 nm Violet-LED self-sustaining gooseneck-type guides
Each self-sustaining Gooseneck-type LED guide is equipped with a 3-lens focusing head and has a length of 56 cm
The light source version does not require bulb changing like halogen light sources and has a longer life span and low energy consumption
The light source produces white light and there is no color temperature shifting when dimming
Ideal for life and materials sciences, various industrial applications and for stereo microscopy

MODEL

Power: 2x 3 W LED (equivalent to 2x 28 W halogen)
Luminous flux: 25,000 lux
Color temperature: 6,500 K
Operating voltage: 100-240 V AC / 5 V DC (50/60 Hz) auto switching

Dimensions: 106 mm (w) x 140 mm (d) x 70 mm (h)
Weight: 1.5 kg
Interchangeable gooseneck-type guides
A = LE.5260, B = LE.5261, C = LE.5262 and  D = LE.5263
