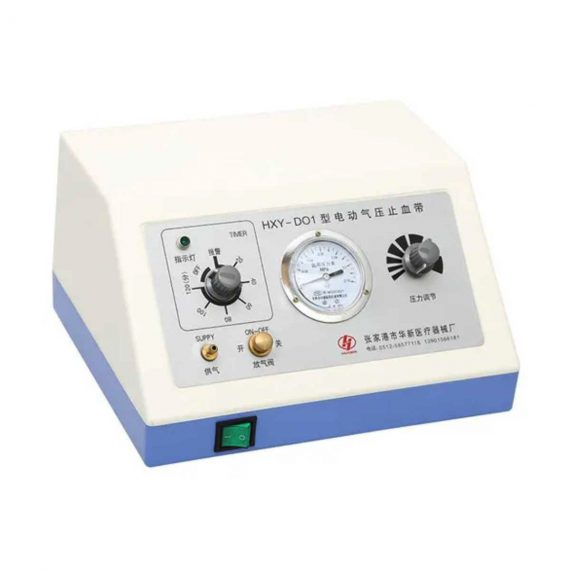

Electric Pneumatic Tourniquet

Description

HXY-D01   Electrical manometer shows pneumatic tourniquet using dial display or microcomputer control digital display, the pressure and the time at work is clear, in case of sudden power failure, it keeps the pressure in 2 hours, with pressure leakage automatic compensation function can be set to a constant pressure working value. The working pressure greater than the set pressure of 3kpa(22mmHg), automatic pressure relief to the pressure range, pressure setting in 100kpa(750mmHg) adjusted operation to increase or decrease the pressure value at any time. Slow phase deflation was adopted after the operation, it can prevent cardiovascular and cerebrovascular patients with sudden ischemia. Automatic memory of the last operation parameters for the next operation, or as a basic parameter, saves time. When the working pressure exceeds the range, it has audibled and light alarm prompt and operative time remaining 10 minute,5 minute,1-minute alarm. Standard tourniquet cuff with cotton fabric does not hurt the skin, high strength TPU liner is durable. At the same time, high temperature and high-pressure silicone liner of tourniquet cuff can be optional. The pressure sensor is used to control accuracy.

Configuration
Features
Specification
Packing

1.tourniquet：1 set

2.tourniquet cuff：1 set（small, middle, big）

3.power cable：1 piece

4.fuse：FT1A glassfuse×2, ø5×20, ZH237

5.seal ring：2 pieces

6.operating manual：1

7.certificate of qualification：1
Easy operation and setting

Eco-friendly

Customized brand available

Accurate Dial display pressure

Pressure range 0-100kpa

Low noise

imported components
Machine shell: ABS

Initial inflation time: ≤50

seconds Noise: ≤60dB

Power waste: ≤25W

Voltage:220V/50HZ

Pressure range:0-0.1Mpa

Time range:0-120min

Pressure control

accuracy: ±3kpa

Relative temperature of

working

environmernt:4~40℃

Working environment

relative humidity: ≤80%

Size:30*24*17cm
Covered with PE film and

packed in carton

delivered with wooden

case.

Size: 43*24*32CM

Net/Gross weight:4/5kg
