Overview
Essential details
- Warranty:
-
1 years
- Customized support:
-
Negotiate
- Place of Origin:
-
Zhejiang, China
- Brand Name:
-
YIYU
- Model Number:
-
WAW-2000D
- Power:
-
Hydraulic
- Material:
-
Thick Steel
- Standard:
-
BS, ASTM
- Precision:
-
class 0.5
- Result:
-
Direct reading
- Working principle:
-
hydraulic extension force
- Capacity:
-
300,600,1000,2000KN
- Display:
-
PC software
- Weight:
-
6000kgs
Supply Ability
- Supply Ability
- 500 Set/Sets per Month
Packaging & delivery
- Packaging Details
Standard export plywood packing 15mm thickness in base and 9mm thickness in side
- Port
Ningbo
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 10 >10 Lead time (days) 15 To be negotiated
Product Details

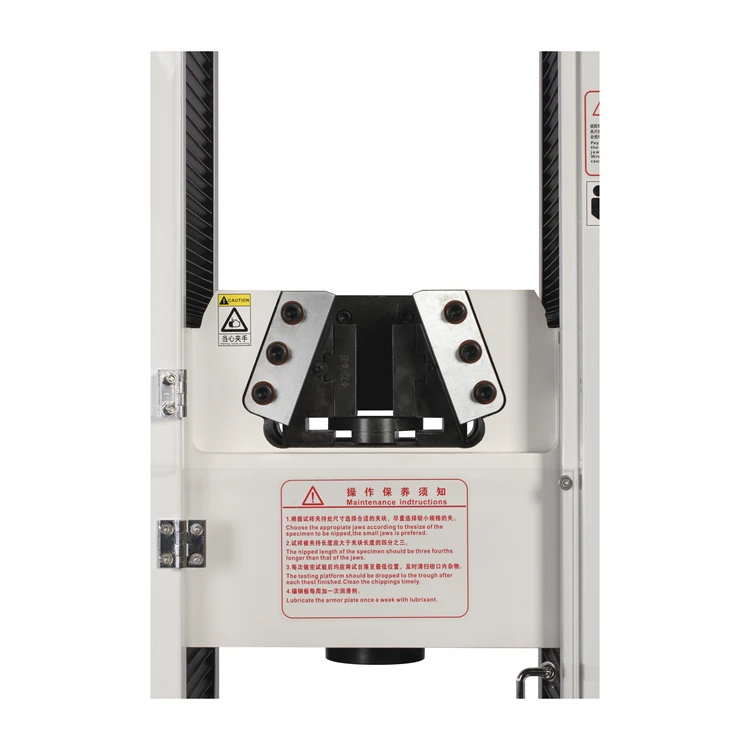

Steel Rebar Tensile Testing Machine is suitable for doing testing experiments
such as the tensile, compression, bending and sheartesting for all kinds of metal materials and nonmetal materials such as plastic, concrete, cement and so on.
such as the tensile, compression, bending and sheartesting for all kinds of metal materials and nonmetal materials such as plastic, concrete, cement and so on.
|
Item/index/model
|
WAW-1000DH
|
WAW-1200D
|
WAW-2000D
|
||
|
maximum test force
|
1000kN
|
1200kN
|
2000kN
|
||
|
Test force accuracy
|
0.5 level
|
||||
|
maximum speed of centre sill（mm/min）
|
320
|
400
|
|||
|
tensile space（mm）
|
700
|
|
800
|
||
|
diameter of round
specimen（mm）
|
φ14-φ45
|
φ20-φ70
|
|||
|
thickness of flflat specimen（mm）
|
0-40
|
0-50
|
|||
|
size of compression plates（mm）
|
φ225
|
|
|
||
|
dimension(conriol console)（mm）
|
600*570*1450 |
||||
|
power(kW)
|
2.0KW
|
3.5KW
|
|||
|
weight(conriol console)kg)
|
300
|
||||
|
weight（host）（kg）
|
3400
|
3400
|
6000
|
||
Company Profile
FAQ
FAQ
1. Production time: for common products: 7days; for special order: 15days.
2. Payment terms: T/T, L/C or other payment can be negotiated before shipment.
3. Shipment: sea shipment, air shipment, fast courier shipment according to customer advice.
4. Inspection and Calibration: technician do it strictly before shipment.
5. Installation: most of equipments be fixed well before shipment, we will guide installation step by step for other equipments.
6. Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.
7. Warranty of machine: usually one year.
