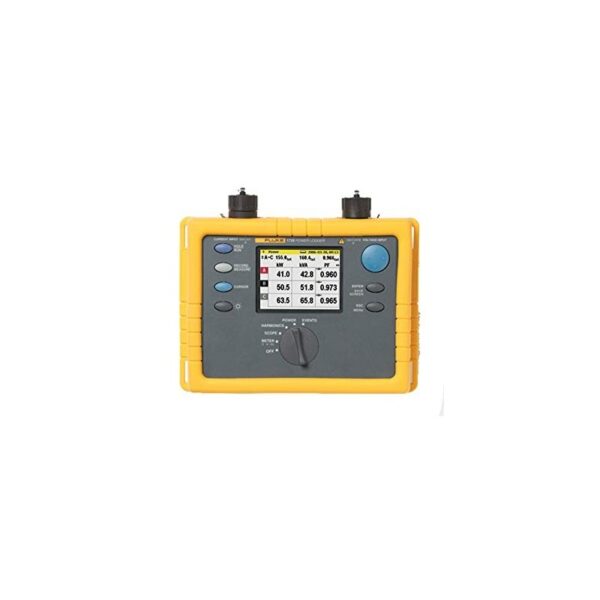

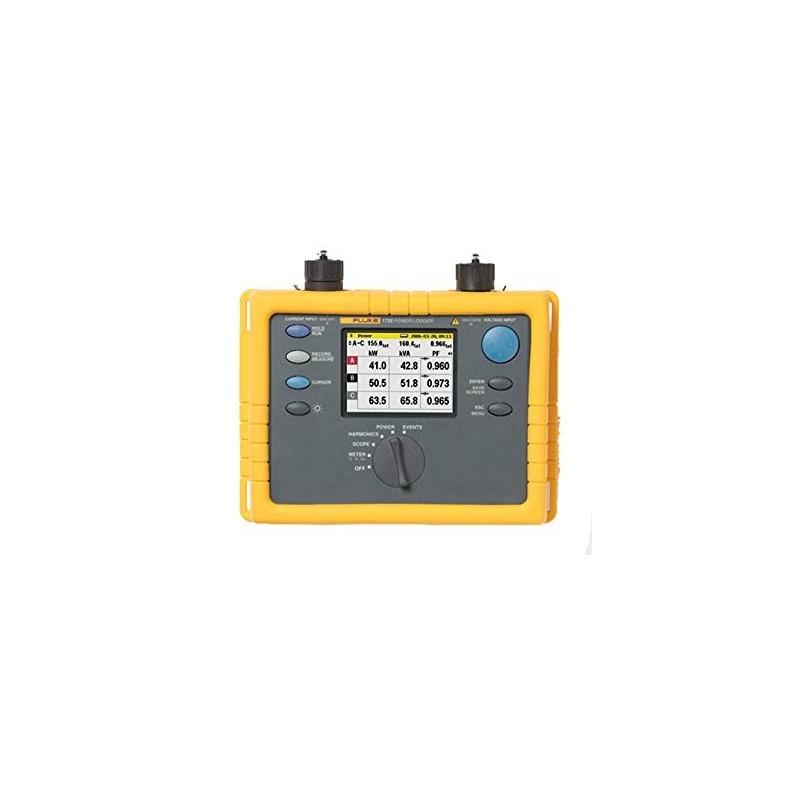

Fluke 1735 Three-Phase Power Quality Logger

Key features

Record power and associated parameters for up to 45 days

Monitor maximum power demand over user-defined averaging periods

Prove the benefit of efficiency improvements with energy consumption tests

Measure harmonic distortion caused by electronic loads

Improve reliability by capturing voltage dips and swells from load switching

Easily confirm instrument setup with color display of waveforms and trends

Measure all three phases and neutral with included 4 flexible current probes

View graphs and generate reports with included Power Log software

Compact, rugged design with IP65 case, 600 V CAT III and two-year warranty

Product overview: Fluke 1735 Three-Phase Power Quality Logger

Power Quality Logging, Electrical Load Studies and Energy Consumption Testing Made Easy
Fluke’s 1735 Three-Phase power data logger is Fluke’s most versatile multi-purpose power quality and energy analyzer on the market for the price and is the ideal power meter for conducting energy studies and basic power quality logging. Set the Power Logger up in seconds with the included flexible current probes and color display. The power quality meter measures most electrical power parameters, harmonics, and captures voltage events.
Most Common Applications:

Load studies – verify electrical system capacity before adding loads

Energy assessments – quantify energy consumption before and after improvements to justify energy saving devices

Harmonics measurements – uncover harmonic issues that can damage or disrupt critical equipment

Voltage event capture – monitor for dips and swells that cause spurious resets or nuisance circuit breaker tripping

Specifications: Fluke 1735 Three-Phase Power Quality Logger

Specifications

General

Display

¼ VGA Graphic Color transmissive displays 320 x 240 Pixel with additional background lighting and adjustable contrast, text and graphics in color

Quality

Developed, designed and manufactured according to DIN ISO 9001

Memory

4 MB Flash memory, 3.5 MB for measuring data

Interface

RS-232 SUB-D socket; 115.2 k Baud, 8 data bits, no parity, 1 stop bit, firmware updates are possible with the RS- 232 interface (9-pole extension cable)

Sample rate

10.24 kHz

Line frequency

50 Hz or 60 Hz, user-selectable, with automatic synchronization

Power supply

NiMH battery-pack, with ac adapter (15 V to 20 V / 0.8 A)

Operation time with battery

Typical > 12 hours without backlight and > 6 hours with backlight high

Dimensions

240 x 180 x 110 mm

Weight

1.7 kg, including battery

Ambient conditions

Working temperature range

-10°C to +50°C

Storage temperature range

-20°C to +60°C

Operating temperature range

0°C to +40°C

Reference temperature range

23°C ±2°C

The above terms are defined in European Standards. To calculate the specification at any point in the working temperature range, use the temperature coefficient below.

Temperature coefficient

±0.1% of the measured value per°C from the reference

Intrinsic error

Refers to reference temperature, maximum deviation is guaranteed for two years

Operating error

Refers to operating temperature range, maximum deviation is guaranteed for two years

Climatic class

C1 (IEC 654-1) -5°C to +45°C, 5% to 95% RH, no dew

Housing

Cycoloy shock and scratch proof thermoplast V0-type (non-flammable) with rubber protection holster

EMC

Emission

IEC/EN 61326-1:1997 class B

Immunity

IEC/EN 61326-1:1997

Safety

Safety

IEC 61010-1 600 V CAT III, double or reinforced insulation, pollution degree 2

Protection

IP65; EN60529 (refers only to the main housing without the battery compartment)

RMS values are measured with a 20 ms resolution.

V-rms wye measurement

Measuring range

57 V/66 V/110 V/120 V/127 V/220 V/230 V/240 V/260 V/277 V/347 V/380 V/400 V/417 V/480 V AC

Intrinsic error

±(0.2% of measured value + 5 digits)

Operating error

±(0.5% of m. v. + 10 digit)

Resolution

0.1 V

V-rms delta measurement

Measuring range

100 V/115 V/190 V/208 V/220 V/380 V/400 V/415 V/450 V/480 V/600 V/660 V/690 V/720 V/830 V AC

Intrinsic error

±(0.2% of m. v. + 5 digit)

Operating error

±(0.5% of m. v. + 10 digit)

Resolution

0.1 V

A-rms measurement

Flexi set I ranges

15 A/150 A/3000 A rms (at sine)

Current clamp ranges

1 A/10 A

Resolution

0.01 A

Ranges

150 A/3000 A and 1 A/10 A

Intrinsic error

±(0.5% of m. v. + 10 digit)

Operating error

±(1% of m. v. + 10 digit)

Ranges

15 A

Intrinsic error

±(0.5% of m. v. + 20 digit)

Operating error

±(1% of m. v. + 20 digit)

The errors of the current probes are not considered.

By using Flexi-set

Flexi Set measuring error

±(2% of m. v. + 10 digit)

Position influence

±(3% of m. v. + 10 digit)

CF (typical)

2.83

When using Flexi Set please make sure to position the conductor opposite to the Flexi Set-lock

Power measurement (P – Active, S – Apparent, Q- Reactive, D – Distorting

Measuring range

see V rms and A rms measurement

Power errors are calculated by adding the errors of voltage and current

Additional error due to power factor PF

Specified error x (1-[PF])

Maximum range with voltage range 830 V delta-connection and 3000 A current range is 2.490 MW, higher displayed values possible when using PTs and CTs with ratio feature

Intrinsic error

±(0.7% of m.v. +15 digit)

Resolution

1 kW

Operating error

±(1.5% of m.v. + 20 digit)

Typical range with voltage range 230 V wye connection and 150 A current range is 34.50 KW.

Intrinsic error

±(0.7% of m.v. +15 digit)

Resolution

1 W to 10 W

Operating error

±(1.5% of m.v. + 20 digit)

The errors of the current sensors themselves have not been considered.

Energy measurement (kWh, KVAh, kVARh)

Intrinsic error

±(0.7% of m.v.+ F variation error* + 15 digit)

Resolution

1 W to 10 W

Operating error

±(1.5% of m.v. + F variation error1 + 20 digit)

1. Frequency variation error

PF (Power factor)

Range

0.000 to 1.000

Resolution

0.001

Accuracy

±1% of full scale

Frequency measurement

Measuring range

46 Hz to 54 Hz and 56 Hz to 64 Hz

Intrinsic error

±(0.2% of m. v. + 5 digit)

Operating error

±(0.5% of m. v.+ 10 digit)

Resolution

0.01 Hz

Harmonics

Measuring range

To 50th harmonic (< 50% of nom) Accuracy Vm, Im, THDV, THDI IEC 61000-4-7:2002, Class II Vm ≥ 3% Vn ±5% Vm Vm < 3% Vnom ±0.15% Vnom Im ≥ 10% Inom ±5% Im Im < 10% Inom ±0 5% Inom THDV for THD < 3% ±0.15% at Vnom for THD ≥ 3% ±5% at Vnom THDI for THD < 10% ±0.5% at Inom for THD ≥ 10% ±5% at Inom Vnom Normal voltage range Inom Nominal current range Vm and Im are measured values of harmonic m Events Detection of voltage dips, voltage swells and voltage interruptions with a 10 ms resolution and measuring error of the half period sine wave of rms. Intrinsic error ±(1% of m.v. + 10 digit) Operating error ±(2% of m.v. + 10 digit) Resolution 0.1 V Reference Specific ReferencesCondition New product Andrew U07/01/2020Best product EverI sincerely recommend this company industries Safety Nigeria for any industrial and marine Equipment for personal and company needs, its the best in-terms of quality and reliable products. Write your reviewFluke 1735 Three-Phase Power Quality LoggerQuality12345Delivery12345Communication12345Pricing12345Title for your review*Your review*Required fields* Send or Cancel
