Force Logger Sensor ? Edu-Logger

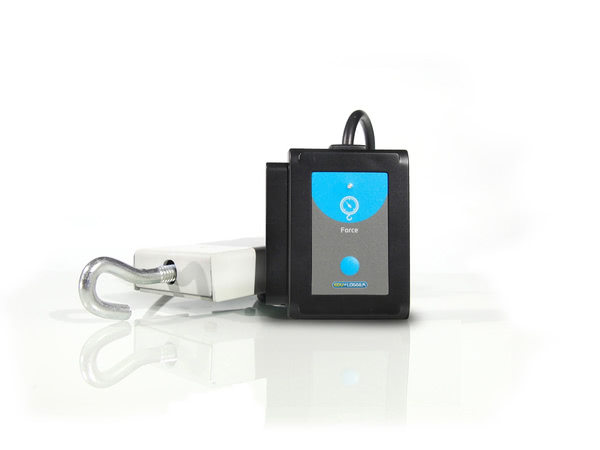

This sensor can measure the mass to weight relationship and study how different pulley systems affect the effort needed to lift weights. It can also be used to measure push/pull forces and impacts. ?The force sensor is contained in a metal box. There is a hook at the bottom of the box that can be connected to various pulling loads. A simple bumper (for push/impact measurements) could be made and attached using a bolt which is placed through a length of plastic tubing. ?The sensor can be hung from a universal laboratory stand via a rod through the hole in its box. This sensor can be operated either facing upwards, downwards or at any intermediate (including horizontal) position.?Sensor zeroing:Connect the sensor to a voltage source (USB module, Display unit or Battery module). To zero the reading, just press the sensor’s push-button for about 3 seconds.?As with all Edu-Logger Sensors this must be used with one of the Edulogger communication modules:?USB ModuleWi-Fi ModuleBluetooth ModuleGraphic Display ModuleViewer Module ( 900-211 )
