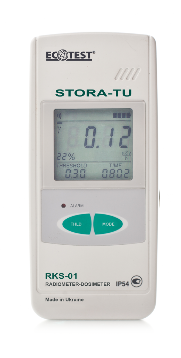

Gamma, beta radiation radiometer-dosimeter RKS-01 “STORA-TU” with Bluetooth module, telescopic tube and case – Available On Request, Prices in Dollars

Description Product Description   A compact search device with telescopic tube for quick detection and localization of gamma and beta radiation sources. 5 seconds are enough for quick evaluation of gamma background with 4 built-in Geiger-Muller counters. A big display with luminescent backlight simultaneously indicates units of measurement, measurement errors, threshold level and real time. Analog indicator of radiation intensity facilitates localization of radiation sources. The device has a built-in memory for 1200 measurements and 999 objects of inspection. STORA-TU can also transfer measurement results to smartphones and tablets running Android OS in real time. With the help of GS Ecotest application this information is processed, displayed in a user-friendly way and stored in a special database. The GS Ecotest application can be downloaded from Google Play for free. Measurement results can also be transferred to a personal computer through the Bluetooth channel. Purpose of Use Measurement of gamma and X-ray radiation ambient dose equivalent rate (DER). Measurement of surface beta-particles flux density. Real time and date display, alarm clock function. Features Damp and dustproof body IP54. Big display with luminescent backlight. Simultaneous indication of measurement units, measurement errors, threshold level and real time. Analog twelve-segment indicator of registered radiation intensity. Ability to perform measurements with a preset error. Four-level indication of battery discharge. Built-in memory which allows storing up to 1200 measurements and 999 numbers of the measured objects with ability to view the recorded information on the display of the device. Mode of PC connection via Bluetooth. Three independent measuring channels with alternate indication of data on the single liquid crystal display. Prompt evaluation of gamma background within 5 seconds. Automatic subtraction of gamma background at measurement of beta contamination. Four built-in gamma, beta sensitive Geiger-Muller counters. Automatic setting of measurement intervals and ranges. Audio signaling of each detected gamma-quantum and beta-particle that can be switched off. Two-tone audio alarm of exceeded programmed threshold levels. Operation with telescopic tube. Two AAA batteries. Specifications Measurement ranges and main relative errors Gamma and X-ray radiation ambient dose equivalent rate (137Cs) µSv/h 0.1…999.9; % ±(15+2/H*(10)),where H*(10) is a numeric value of measured DER equivalent to µSv/h Beta-particles flux density (90Sr+90Y) 1/(cm2×min) 5…100 000; % ±(20+200/φβ), where φβ is a numeric value of measured beta-particles flux density equivalent to part./(cm²×min) Energy ranges of measurement and energy dependence: – Gamma and X-ray radiation MeV 0.05…3.0;±25% – Beta radiation MeV 0.5…3.0 Resolution of threshold level programming for: dose rate flux density µSv/h 10³/(cm²×min) 0.01 0.01 Time of continuous operation with fully charged batteries* hours 2 500 Operating temperature range °С -20…+50 Weight kg 0.44 Dimensions mm 160×75×35 Delivery Kit RKS-01 “STORA-TU” radiometer-dosimeter; case of close and waterproof cloth used to carry the device and telescopic tube on a shoulder; telescopic tube; operating manual; “Cadmium ECOMONITOR” software; packing box.
