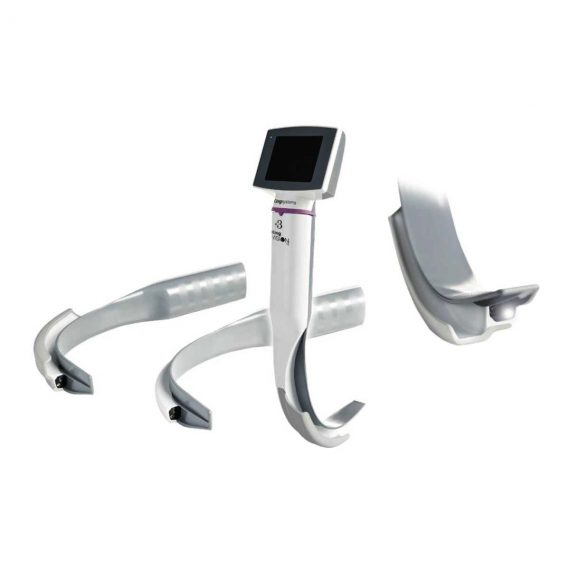

King Vision Video Laryngoscope

Description

King Vision Video Laryngoscopes are affordable, durable and portable. They are ideal for indirect laryngoscopy, difficult endotracheal intubations as well as routine intubations. The King Vision accommodates minimum mouth openings of 13mm for the standard blade and 18mm for the channeled blade making it effective for the majority of adult patient populations.
Features:

Ergonomics, durability and technique of a traditional rigid laryngoscope
Affordability never seen in the market before
High-quality imaging of FOBs and other indirect laryngoscopy equipment with an attached, reusable, OLED video display for exceptional color, contrast and brightness
Portability of hand-held video laryngoscopes
Convenience and sanitation of disposable, channeled and non-channeled blades that incorporate a camera and light source — no need for a stylet with channeled blades
Clarity and accuracy of a LED light and CMOS camera

Technical Specifications:

Batteries: 3AAA
Battery Life: <90 min. (confirm with Power Indicator status) Computerized Power Management System: Auto Shut off, Auto white balancing Video Aspect Ratio: 4:3 Video Port: RCA connection to monitor with cable Video Refresh Rate: 30 frames per second Video Resolution: 320 x 240 (QVGA) pixels per frame Video Screen: OLED Display Video Screen Siz:e 6.096cm / 2.4″ diagonal Viewable Angle: 160° Anti-Fog: Coating on distal window Maximum AP Height of Blade: <13mm / .51″ (non-channeled); <18mm / .7087″ (channeled) Blade Width (at mouth): 26mm / 1.0236″ (standard), 29 mm / 1.1417″ (channeled), 16 mm / .6299 at distal tip Camera Chip: CMOS Camera Resolution: 640 x 480 VGA Disposable Material: Polycarbonate / ABS, anti-reflective, coating on display window ET Size; 6.0mm – 8.0mm / .2362″ – .3150″ Light Source: White LED Maximum Pull Force on Blade: 15lbs Click Here To Download Catalogue
