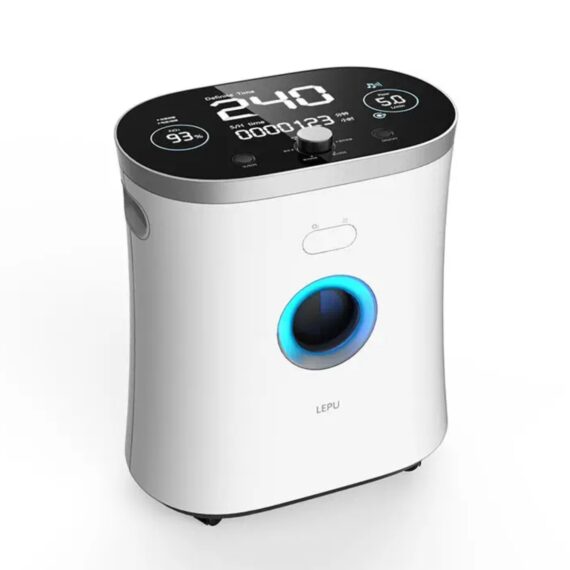

Lepu lf05a Oxygen Concentrator

Description

The Lepu Oxygen Concentrator comes with a remote control and is an absolutely efficient & reliable way to get the high-purity quality oxygen. It has a French CECA imported molecular sieve for more lasting & stable oxygen generation.
Features:

Large-screen display
Built-in water tank
Remote control
With an atomizing function
Up to 11 alarm items
Hidden oxygen/atomizing nozzle, which is not easy to adhibit dust, and cleaner
Rear-cover storage box for storing remote control or nasal oxygen cannula

Technical Specification:
– Model/ Specifications: LF05A

– Oxygen Concentration: ≥ 90% (V/V) (percent by volume at 5 L/min)

– Oxygen Discharge Pressure: 30-60 kPa (maximum pressure at the oxygen outlet)

– Atomizing Rate: 0.12 ml/min – 0.90 ml/min

– Running Noise: ≤ 60 dB(A)

– Dimension: 450 mm X 300 mm X 550 mm

– Net Weight: ≈16.5 KG

– Rated Voltage of Oxygenator Body: a.c.220V 50Hz

– Classification of Electric Shock Degree: Applied parts of BF type

– Electromagnetic Compatibility: Class B, Group 1 according to GB4824

– Classification of Safety Degree: Non-AP/APG type. Not suitable when the flammable anesthetic gas is mixed with air, or oxygen or nitrous oxide

– Oxygen Flow: 1-5 L/min (Adjustable)

– Input Power: 450VA

– Atomizing Pressure: 30~120kPa

– Capacity of Storage Tank: About 2 ml – 8 ml

– Service Life: 5 Years

– Electric Shock Protection Classification: Class II

– Degree of Protection Against Liquid Inlet: IPX0 unprotected equipment

– Classification of Running Modes: Continuous running

– Software Version: V1.0
