It’s what’s INSIDE that counts.
M16 (5/8″) / M20 (3/4″) / M22 (7/8″)

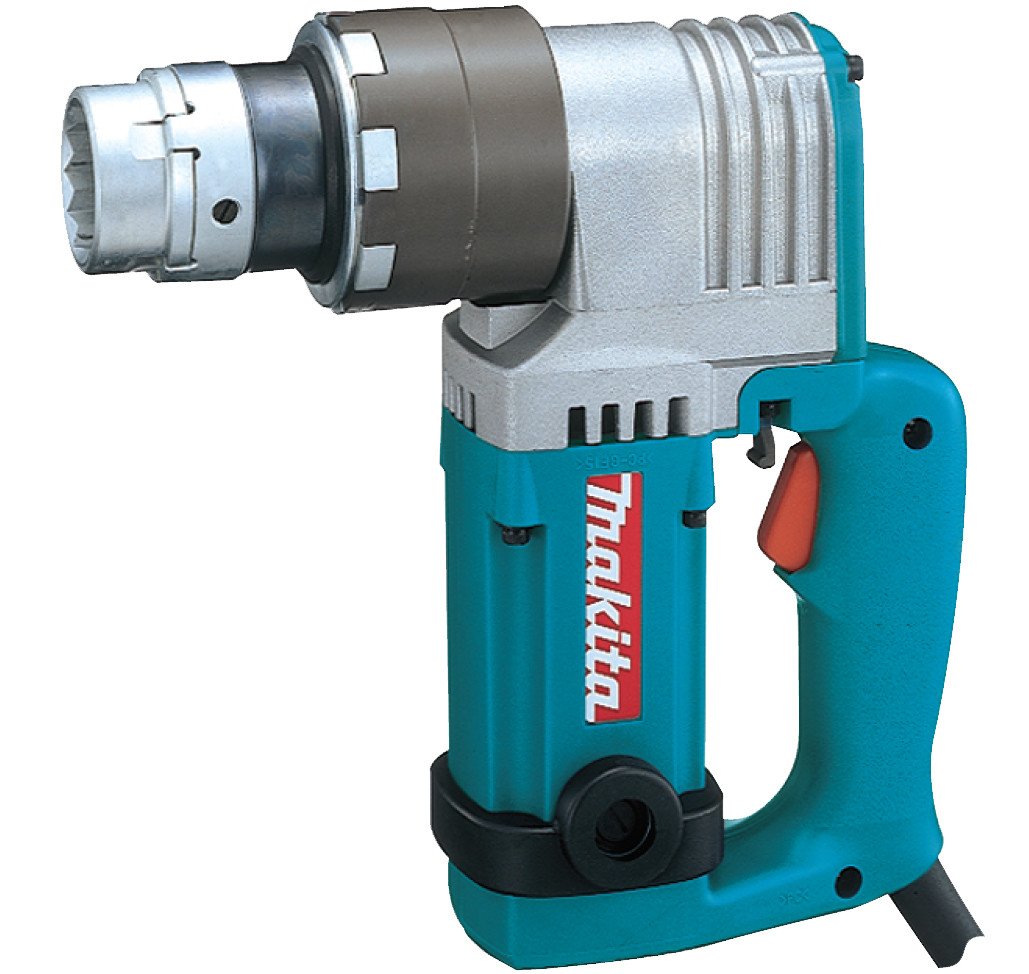

803 N?m (600 ft.lbs.) Shear Wrench
- Compact and Lightweight Yet Powerful
- Delivers 803 N?m (600 ft.lbs.) of max torque for the most demanding applications.
- Anti-slipping mechanism: tool won’t start until inner sleeve engages with bolt tip.
- Bolt tip ejecting lever located by power trigger for increased convenience
- Compact design at a length of only 249 mm (9-13/16″)
Specifications
| Continuous rating input | 1,330W |
| Capacity | Bolt : M16, M20, M22 (5/8″, 3/4″, 7/8″) |
| No Load Speed | 18 rpm |
| Max Fastening Torque | 803 N?m (600 ft.lbs.) |
| Dimensions (L x W x H) | 249x84x252mm (9-13/16″x3-5/16″x9-15/16″) |
| Net weight | 4.8kg (10.6lbs) |
| Power supply cord | 2.5m (8.2ft) |
Inclusions:
Screw drivers
Outer Sleeve: (Sold separately)
M16 – 3,400.00
M22 – 3,400.00
5/8″ – 3,400.00
Inner Sleeve: (Sold separately)
M16 – 6,460.00
M22 – 6,460.00
Country Manufactured Origin (May change depending on batch):
Made in Japan
Lifetime Service Warranty
