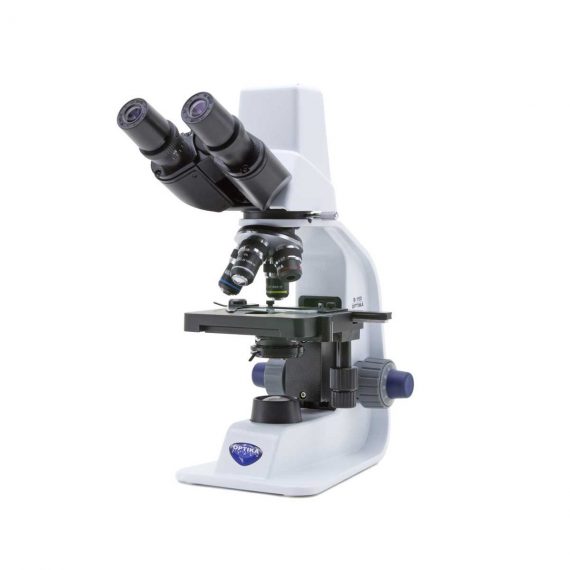

Optika B-150D-BRPL Digital Binocular Microscope

Description

Cordless digital binocular microscope ideal for students and primary schools, with four PLAN achromatic lenses (1000x), FN 18 high eyepoint eyepieces, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 1 W X-LED1 illumination. Slim and easy to carry, it is equipped with all the main controls to start learning how to use an advanced microscope and with long lasting LED illumination to provide over 20 years of use. The

exclusive Li-Ion battery ensures unparalleled duration and fast recharge.
Features:

Observation mode: Brightfield.
Head: Binocular, 30° inclined; 360° rotating. With integrated 3.1 MP camera.
Eyepieces: WF10x/18 mm, secured by screw.
Nosepiece: Quadruple ball bearings revolving nosepiece.
Objectives:

– N-PLAN 4x/0.10 , with anti-fungus treatment

– N-PLAN 10x/0.25 , with anti-fungus treatment

– N-PLAN 40x/0.65 , with anti-fungus treatment

– N-PLAN 100x/1.25 (Oil/Water) , with anti-fungus treatment
Specimen stage: Mechanical stage, 125x116mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
Illumination: X-LED1 with white 1 W LED and light intensity control.
Color temperature: 6,300 K. Li-Ion battery for long lasting operation. Multi-plug 100-240Vac/5Vdc external power supply.


Technical Specifications:

Observation Method –
Transmitted Light
Brightfield
Yes


Simple polarized light
As optional

Main Body
Type
Upright


Construction material
Aluminum die-cast

Head
Head
Binocular (Siedentopf)


Inclination
30°


360° rotating
Yes


Interpupillary distance (mm)
48-75


Dioptric adjustement
On left tube


Fixing screw for eyepieces
Yes


Tube inner diameter (mm)
23

Eyepieces
Field number (mm)
18


Magnification
10x


High eyepoint (for glass wearers)
Yes


Pointer
As optional


Micrometric scale
As optional


Diameter of micrometer glass (mm)
20

Nosepiece
Positions
Quadruple


Bi-directional
Yes


Rotation on ball bearings
Yes


Objective thread
RMS

Objectives
Optical system
160


Anti-fungus treatment
Yes


Parfocal distance (mm)
45


Standard magnifications
40x-1000x


Type
N-PLAN


Objectives included
4x/0.10, W.D. 15.2 mm

10x/0.25, W.D. 5.5 mm

40x/0.65, W.D. 0.45 mm

100x/1.25 (Oil/Water),
W.D. 0.13 mm

Stage
Type
Double layer


Dimensions (mm)
125×116


Moving mechanism
Rack and pinion


Moving range (mm)
70×30


Material
Anti-scratch painting


Specimen holder
Yes


Slide number
1


X-Y Vernier scale
Yes


Vernier scale accuracy (mm)
0.1

Condenser – Single
Position
Type
Abbe


Numerical aperture (N.A.)
1.25


Diaphragms
Iris


Centrable
Pre-centered


Focusable
By rotation

Focusing System
Type
Coaxial coarse & fine


Coarse total travel (mm)
16


Fine total travel (per single rotation) (mm)
0.4


Fine graduations
100


Fine resolution (µm)
4


Upper stop to prevent contact
Yes


Adjustable tension
Yes

Transmitted
Illumination
Type
X-LED


X-LED type
X-LED1


Light source power (W)
1


Brightness control
Manual


Lifetime (hours)
> 65,000


Temperature (K)
6,300


Max. required power (W)
1.5

Power Supply for
Transmitted
Illumination
Type
External


Microscope connector
Jack, 2.1 mm


Power plug type
Multi-plug (EU, UK, US)


Input voltage
100/240 Vac, 50/60 Hz


Output voltage
5 Vdc 500 mA


LED indicator
Yes


Rechargeable batteries
Yes


Battery type
Li-ion (battery pack)


Working time of batteries (hours)
15


Charging time of batteries (hours)
6

Accessories Included
Dust cover
Yes


Immersion oil (10ml)
Yes


Tension adjustment tool
Yes


User Manual
Digital version (downloadable)


USB cable (m)
1.8


CD-ROM
Yes

Additional Information

Mirror for transmitted light (as optional)

Product Dimensions
Height (mm)
365


Width (mm)
170


Depth (mm)
320

Product Weight
(kg)
4

Digital Head
Resolution (MP)
3.2

Sensor type
CMOS

Sensor size
1/2.5″

Sensor aspect ratio
4/3

Full image size
2048×1536

Pixel size (µm)
2.2×2.2

Frame rate
4 fps (2048×1536),
8 fps (1280×1024),
30 fps (640×480)

S/N ratio (dB)
40

Dynamic range (dB)
66.5

Sensitivity (V/lux*s @550nm)
0.53

Exposure time (s)
15 – 1/1500

USB type
2.0

System requirements
Win 7 / Win 8 / Win 10 (32/64 bit)

Software
OPTIKA PROView
